Product Information

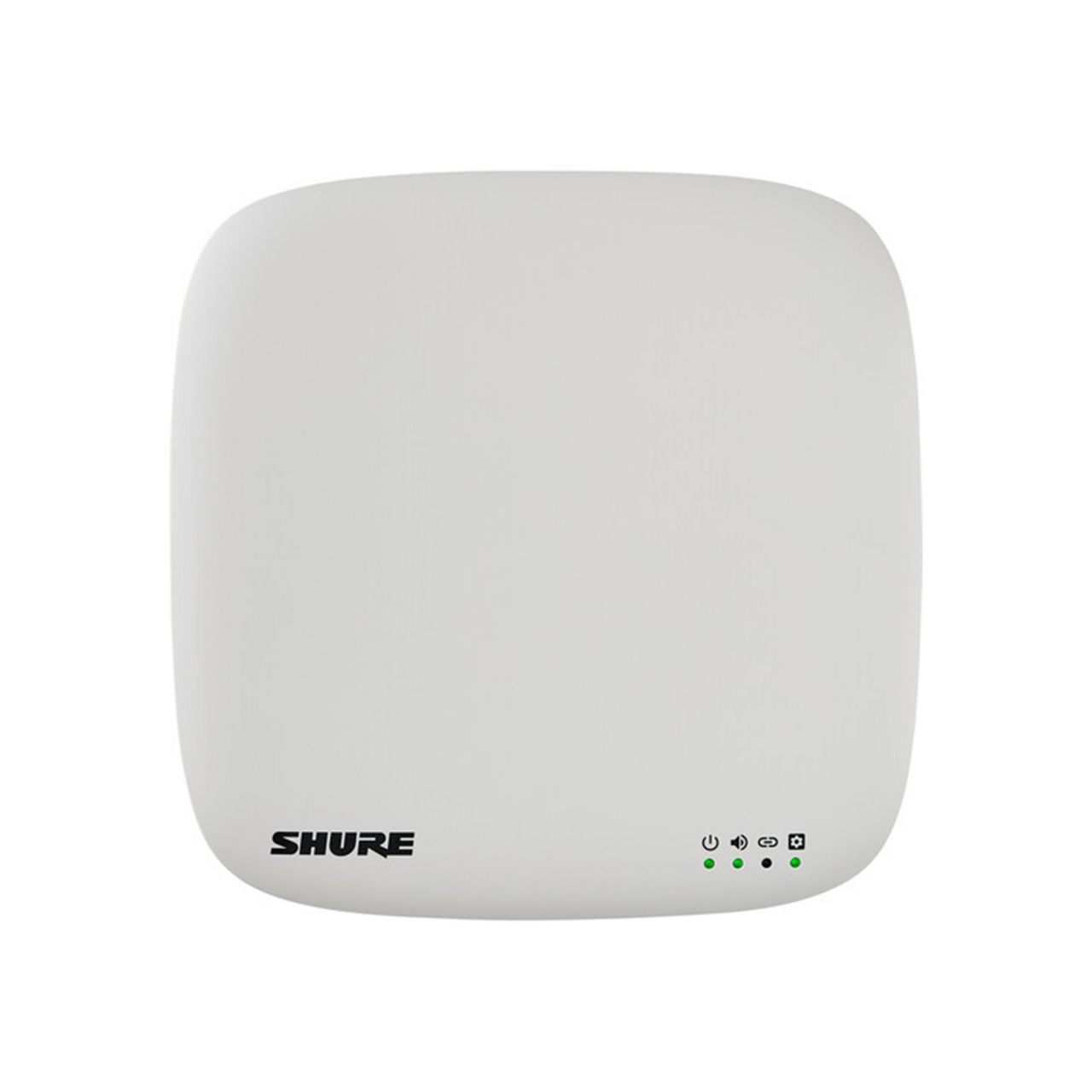

Access Point Transceiver with 4 or 8 wireless audio channels for use with MXW neXt wireless transmitters.
Features:
- Analog, Dante, and USB-C audio connections.
- Built-in IntelliMix DSP audio processing with automatic mixing, echo cancellation, noise reduction, automatic gain control, and EQ.
- Automatic Frequency Management scans the spectrum, selects a clear channel, and automatically changes channels if interference is expected.
- Power to the unit (via PoE) and Dante digital networked audio are both supplied over a single Ethernet cable to simplify installation.
- Dual RJ45 connection enable 3 network operation modes – Switched, Split, or Redundant.
- The supplied mounting plate and paintable cover allow discreet placement on the ceiling or wall in boardrooms and conference rooms where low visibility is preferred.
- Two-way wireless transmission allows for remote control of audio and transmission of a secondary program audio to each transmitter.
- Multiple units can be combined to support configurations of up to 40 compatible channels and 80 in Europe and select countries (double in HD mode).
- Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for wired and wireless control and audio data.
- Selectable RF output power to allow optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range.
- Diagnostic LEDs offer easy visual reference to system activity and indicate power, wireless connection, and network audio status.
- A CUI can be accessed on a PC connected to the same network enabling access to all device properties for optimization and user specific settings.
Specifications
- Dante Ch: 8x8
