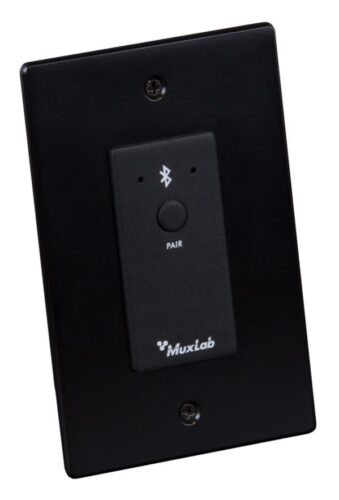

Muxlab – Bluetooth Audio to Dante Interface

I/O Interfaces

More details

Similar Products
  • Symetrix

xIO XLR 2×2

The xIO XLR-Series sets a new standard for performance IO with pristine audio, industrial-strength materials, exceptional design, AV control options, and a complete line of models that reliably deliver sophisticated results.
    I/O Interfaces
  • Dante Ch: 2x2
  • 24-bit
See the product
rdl-dd-bn2ml_1200px
  • RDL

RDL – DD-BN2ML

front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN2ML.  front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN2ML. The XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. The Mini-jack input accepts mono or stereo unbalanced line-level sources that are summed to mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN2ML fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN2ML is PoE powered, and is available in multiple finishes with optional customized graphics. The XLR input is converted to feed one Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. The Mini-jack left and right inputs are summed to mono to feed one Dante network transmit channel. This input provides a network digital audio level of -18 dBFS for an unbalanced -10 dBV input. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN2ML. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN2ML in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN2ML is a professional grade product with a discrete mic preamplifier for studio quality fidelity and low noise performance, coupled through a metal XLR jack housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN2ML’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
  • Sennheiser

Spectera Base Station

The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit’s wireless transmission. It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity. The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.
  • 19’’ 1 RU Base Station with redundant power supplies
  • Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license
  • 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage
  • Redundant Dante® audio interface
  • Two optional slots for redundant MADI (OM or BNC)
  • Sample rates of 48 kHz and 96 kHz
  • Individual sample rate converters for all audio interfaces
  • Wordclock I/O BNC
  • Synchronized clock for all audio over RF allows 3D recordings and playback
  • Adjustable RF power from 10 – 100 mW (country specific)
  • RJ45 network interface for full remote control with secured interface
  • 11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM
  • Secure transmission of confidential content using AES 256 encryption
  • Future expansion via Cascade port
  • Selective headphone output with volume control on front panel
  • OLED display, jog wheel navigation, and rugged metal housing
  • Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)
    I/O Interfaces
See the product
