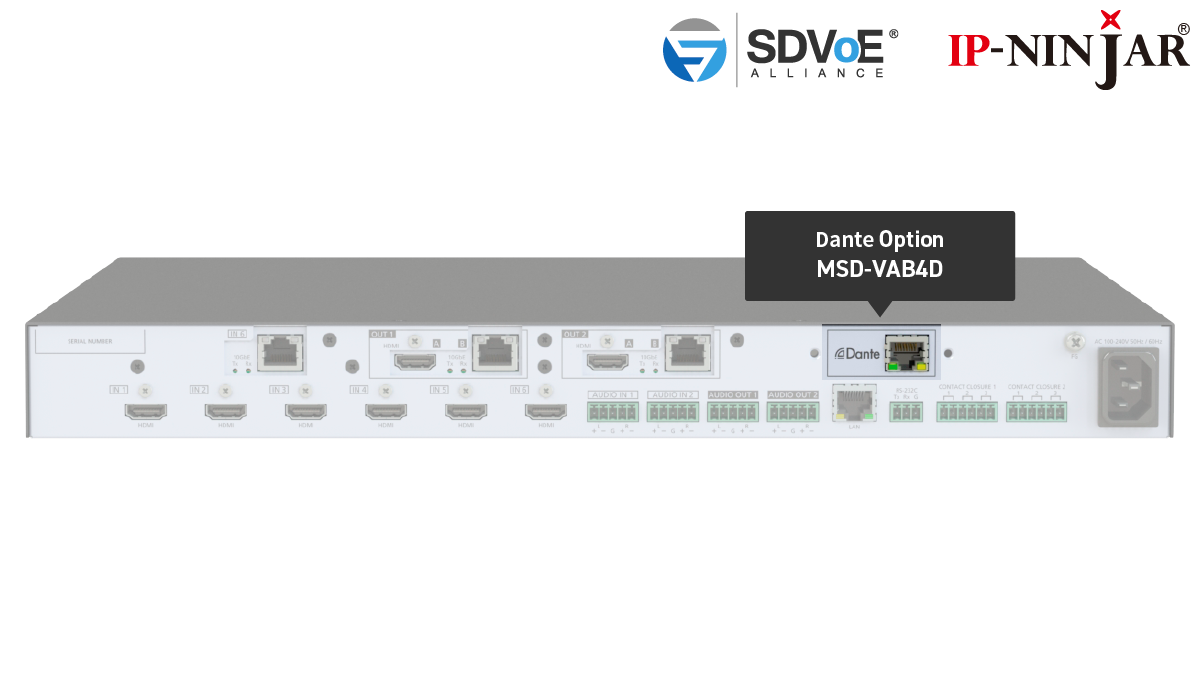

The MSD-VAB4D is a Dante audio option for the MSD-V6 series digital multi-switcher.
Up to four inputs and four outputs of Dante signals can be used, with two 2-channel audio inputs and outputs.
Dante output can also be switched in conjunction with video signal switching.
Multi-channel audio is downmixed and output via Dante.
Dante input audio can also be embedded in HDMI or output as analog audio.
WaveCAST is a Wi-Fi platform designed for pro-audio applications where high-quality sound is required. Hearing assistance can be optimized for hearing loss, music can be optimized for high-fidelity playback, and voice can be set for maximum speech intelligibility. Custom pre-sets can also be established for specific performance applications.
Professional audio inputs on the WaveCAST include 1/4” XLR connectors, phantom power and a line level output jack. In addition to multi-stage gain control inputs, the DSP features include AGC, limiters, high and low pass filter, and adjustable range compressor control.. WaveCAST supports both unicast and multicast network configurations. Up to four WaveCAST systems can be connected to the same Wi-Fi network to provide multiple listening channels -- supporting 45 users in unicast mode or 1500+ users in multicast mode.
The WaveCAST Dante interface is based on the Audinate UXT Ultimo chipset. This chipset supports both AES67 and SMPTE 2110.
