Product Information

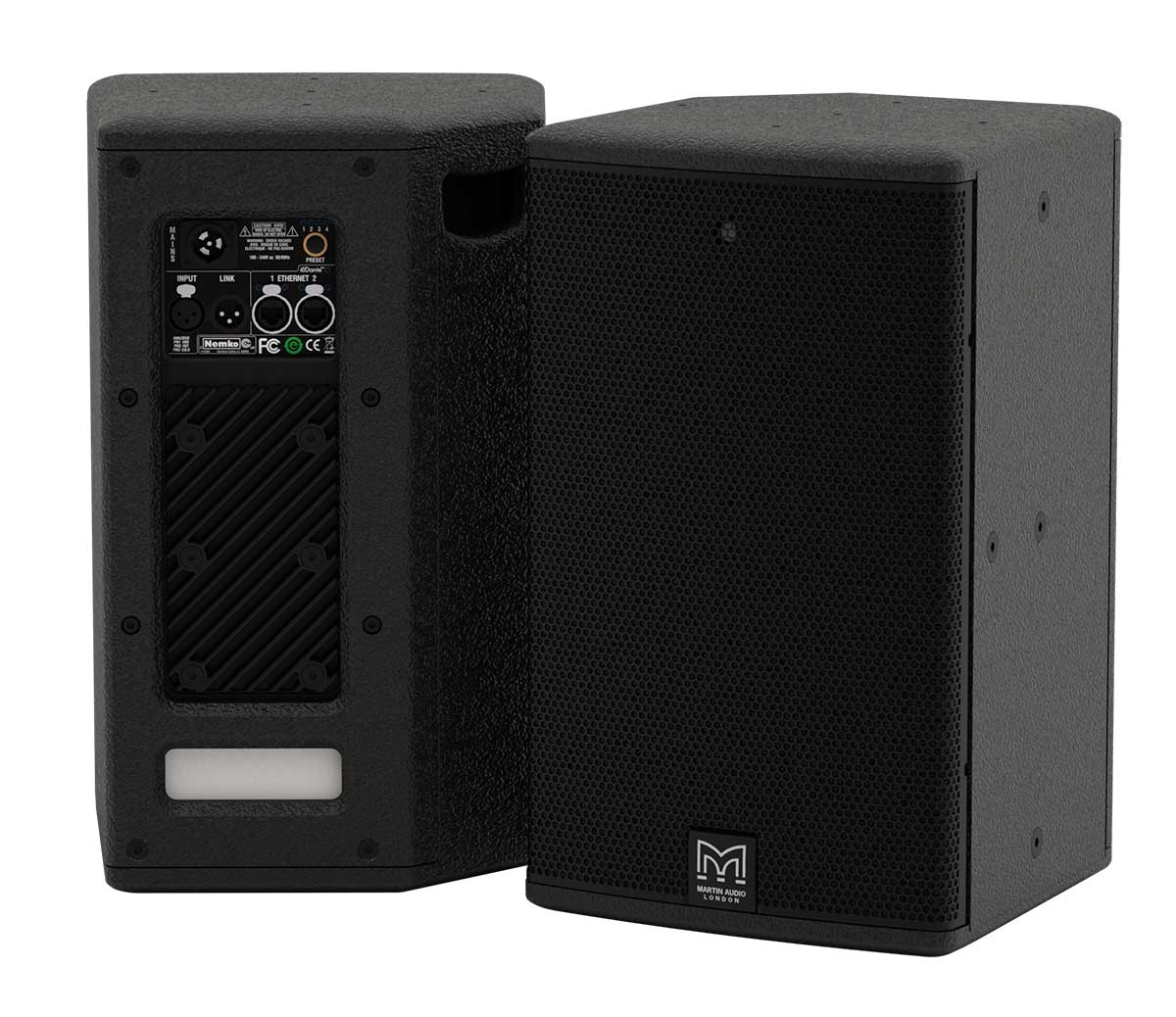

CDD-LIVE 8 is an ultra-compact, self-powered, two-way system suitable for small-medium scale sound reinforcement, AV presentations and HoW to distributed systems, frontfill/infill and use as a micro stage monitor. It incorporates a two-channel Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks.
CDD-LIVE 8 is an ultra-compact, self-powered, two-way system featuring an 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation. Its small size gives no indication of its high output capability and exceptional fidelity suitable for small-medium scale sound reinforcement, AV presentations and HoW to distributed systems, frontfill/infill and use as a micro stage monitor.
With wide coverage close-up, the Coaxial Differential Dispersion technology employed in the CDD- LIVE 8 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns, while also achieving ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs.
A self-powered system, the CDD-LIVE 8 incorporates a two-channel Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks.
Specifications
- Dante Ch: 2x0
- Sample Rate: 48kHz
