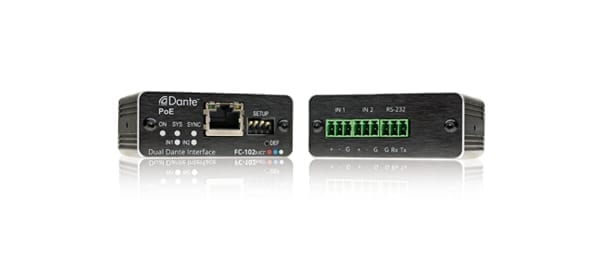

Kramer – FC-102Net

I/O Interfaces

More details

Similar Products

musicrown-df4-4mn
  • Musicrown

Musicrown – DF4.4MN

Musicrown's DF4.4MN is a network digital matrix processor. Musicrown's DF4.4MN is a network digital matrix processor.
  • 32 bit DSP process, 48kHZ sampling rate, 24-bit AD/DA convert.
  • 8X8 core matrix, which includes 4 local input channels, 4 local output channels, 4 Dante input channels and 4 Dante output channels.
  • Dante digital audio 4IN/4OUT Network interface (2xRJ-45), using 24-bit precision, the internal can distribute with the DSP signal’s 4IN/4OUT route.
  • Dante's advanced Network synchronization technology, can provide low latency, low shaking rate and high sampling precision. Can be used in high performance digital media Network audio and video facilities, radio broadcast and sound recording system. It has all advantages of the CobraNet and EtherSound, such as no compress digital audio signal, ensures the good sound quality effect.
  • Each analog input channels with +48V phantom power, MIC/LINE input gain switchable, MIC input sensitivity adjustable.
  • Input including low cut, independent feedback inhibition, 5 band PEQ, noise gate, gain, mute, phase, linkage adjustment and volume adjustment.
  • Output including X-over, 7 band PEQ, Gain, mute, compressor/limiter, phase, delay, linkage adjustment and volume adjustment.
  • All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEAK, H-SHELF, L-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2.
  • All inputs/outputs can do Matrix, and all the input and output channel name can be changed.
  • All the input and output with independent phase curve adjust function, PEQ style choose ALLPASS1 can realize 180º curve adjust, ALLPASS2 can realize 360º curve adjust.
  • All high cut, low-cut filter type can be select by Butterworth, Link witz-Riley, Bessel, slope can be chosen.
  • Noise gate’s threshold, time can be adjustment for inputs, compressor, limiter, ratio, time can be adjustment for outputs.
  • Maximal delay time 680mS for all output channels.
  • Pre setting can copy for every single channel, every channel can do link adjust.
  • Every input and output channel frequency response curve situation can be found when you are in any input and output.
  • Intergrated single generator (pink, white noise and 20-20K sine wave, amplitude adjustable).
  • Front panel has level indicator for input/output, USB port, power supply, network indicator light. Plug-in Dante digital audio port at rear panel, can search for all ID in same segment net when connect PC software
  • One-button connection easy for user’s operations.
  • 21 user presets, device and each preset can be save and recall. Password protection function for high level applications.
  • Unique assembly aluminum side plate card slot design, can assemble two identical machines into one standard 1U machine. Also can assemble its side ear to the standard cabinet.
    I/O Interfaces
See the product
AudioScience - Iyo Dante
  • AudioScience

AudioScience – Iyo Dante 0.16L

The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format. The 0.16L provides 16 balanced outputs with terminal block termination.

The output levels are configurable up to +24dBu. With terminal block termination.

RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.

The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.

Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.

All units can also be operated in Livewire+ AES67 interoperability mode.

    I/O Interfaces
  • Dante Ch: 16x0
  • 24-bit
See the product
8793cc498fab9435514e1d90f1fc0d37
  • NTP

NTP – Penta 721s

PENTA 721s is a new generation audio router and audio distribution interface from NTP Technology, which provides a versatile and flexible interface for signal distribution of analog, and digital audio via AES/EBU and MADI, as well as routing via IP Gigabit Ethernet and optical fibre networks including Dante. It has all the features of the Penta 721 with the addition of a card slot that can accept one of the 7 Penta interface cards to exactly match your I/O requirements.

PENTA 721s is a compact 1U digital audio interface designed for stand-alone use in recording studios, radio stations and stage venues.

It comes as standard with the following I/O:

  • Eight channel AES/EBU input/output channels
  • MADI in/out
  • Two IP Audio Ethernet in/outs connected to a 64-channel Dante interface, with support for AES67 with SAP & Dante Domain Manager
  • Card slot for one of seven optional NTP I/O and processing cards, and a slot for optional Dual MADI Module
    I/O Interfaces
  • Dante Ch: 64x64
  • 24-bit
See the product
