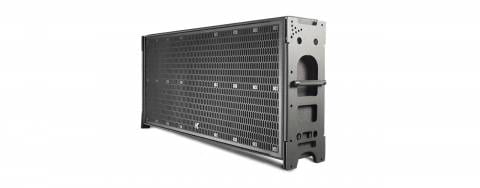

The KH5 is the biggest speaker of the K-array Concert Series and represents a revolutionary compact line array element for large scale events.
The KH5 has 2 x 15″ neodymium woofers with a 3″ voice coil and 4 x 1 . 4″ compression drivers.
| Model: | PK-828B+Dante |
| LF Unit: | 8" x2 |
| HF Unit: | 1.4"x1 |
| Cabinet and paiting: | Plywood and water-based |
| Frequency Response: | 55Hz-18KHz(±3dB) |
| Nominal Impedance: | LF 4ohm,HF 8ohm |
| Input Sensitivity: | 106dB (1W/1m) |
| AES Power: | 700W LF,50W HF |
| Peak Power: | 1400W LF,100W HF |
| Max SPL: | 132dB |
| Input Connector: | 1xXLR female+1xXLR male1xVolume,1xpreset,USB,Dante |
| Amplifier @THD1%RMS: | 500Wx100W@4ohm |
| DSP: | 96KHz sample rate,fixed point DSPPhase,All past filter,12 EQ,Crossover,LimiterDriver free |
| Dante: | Yes |
| WIFI: | Ethernet by TCP/IP |
| Standby and Green energy: | Yes(<0.9W) |
| Working Voltage: | 85-265V,with PFC |
| Dimensions(WxDxH): | 280x335x693mm |
| Weight: | 22kg |
Harmonic Design® beamforming loudspeakers offer great potential for improving sound distribution in complex architectures and highly reverberant rooms. The goal is to focus the sound only on the listener’s surfaces, while shading areas that create unwanted reflections and disturbing room resonances. This leads to a much better speech intelligibility and a first-class listening experience for speech and music performances down to the last rows. Furthermore, the Beamforming technology, which offers a wider range of functions than just Beam Steering, enables unobtrusive positioning of the speakers even in less ideal locations for flexible adaptation to the most diverse requirements.
Beamforming Technology
Models:
