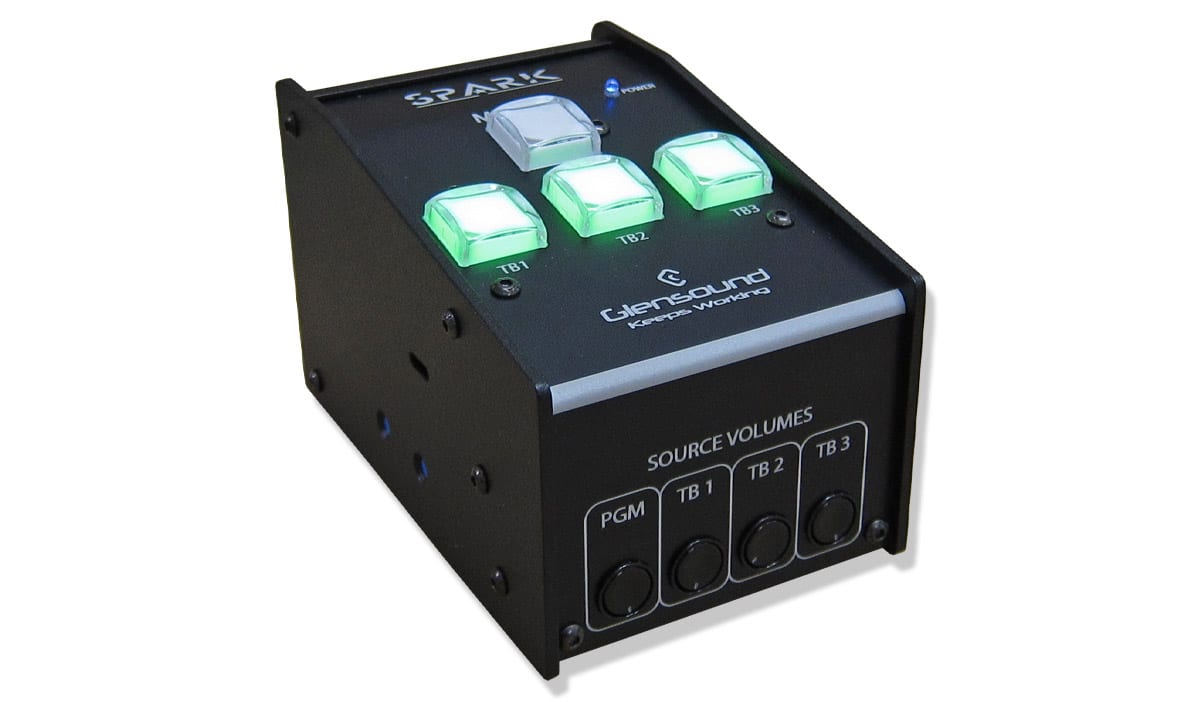

The Spark 3 is the first of Glensound’s next generation of commentary unit using Audinate’s Broadway Dante chipset. It is a sub compact, single user unit, with 3 talkback circuits. It is fully integrated with GlenController, allowing comprehensive remote control and monitoring functions. With the increased demand for remote production and home working, the Spark fits the bill.
The PSP-D is a desktop subscriber panel. Besides the RGB illuminated rotary switches, the PSP-D is also equipped with dual GbE PoE powered network connectors, an internal speaker, a stereo headset interface and a 48V phantom powered microphone input. With their HiQ audio interfaces the PSP-D can also be used for voice-over or as a commentary unit
The ADX-2400M MADI Network Interface accepts a MADI stream as its local inputs, and outputs a MADI stream as its local outputs, making integration with the truck's or studio's audio system fast and simple.
The 24 local inputs and outputs use 24 of the 64 available MADI channels, and may be configured to use channels 1-24 or 33-56. All other MADI channels pass through the unit. This allows two ADX-2400Ms to be used in tandem on a single MADI stream.
Both optical and coax MADI inputs and outputs are available. The optical I/O uses a standard SFP module, so it may be configured for multi-mode or single-mode fiber, with wavelength and power parameters of the customer's choice.
These units may serve as the 'truck end' of ADX networked announce systems, or with other 2400s for transmission or distribution, or to provide a network interface for other vendors' networked products.
The B-DF4 is a network four channel four wire unit in a compact aluminium beltpack enclosure.
With four audio inputs and four audio outputs it will meet the most demanding beltpack requirements. The B-DF4 has a built in speaker so may be used as a handy four wire box.
B-DF4 front
The talk buttons can be programmed to operate push to talk, latching or 'smart' (tap to latch, push to talk). When selected to talk the buttons illuminate red.
Listen input(s) may be enabled/disabled in conjunction with the listen select switch. Buttons may be set to flash on incoming audio.
Programming the B-DF4 is simple using the OLED display which also shows line input and output levels during normal operation.Power may be supplied Power over ethernet (PoE) or a 9-16 volt external DC supply.
