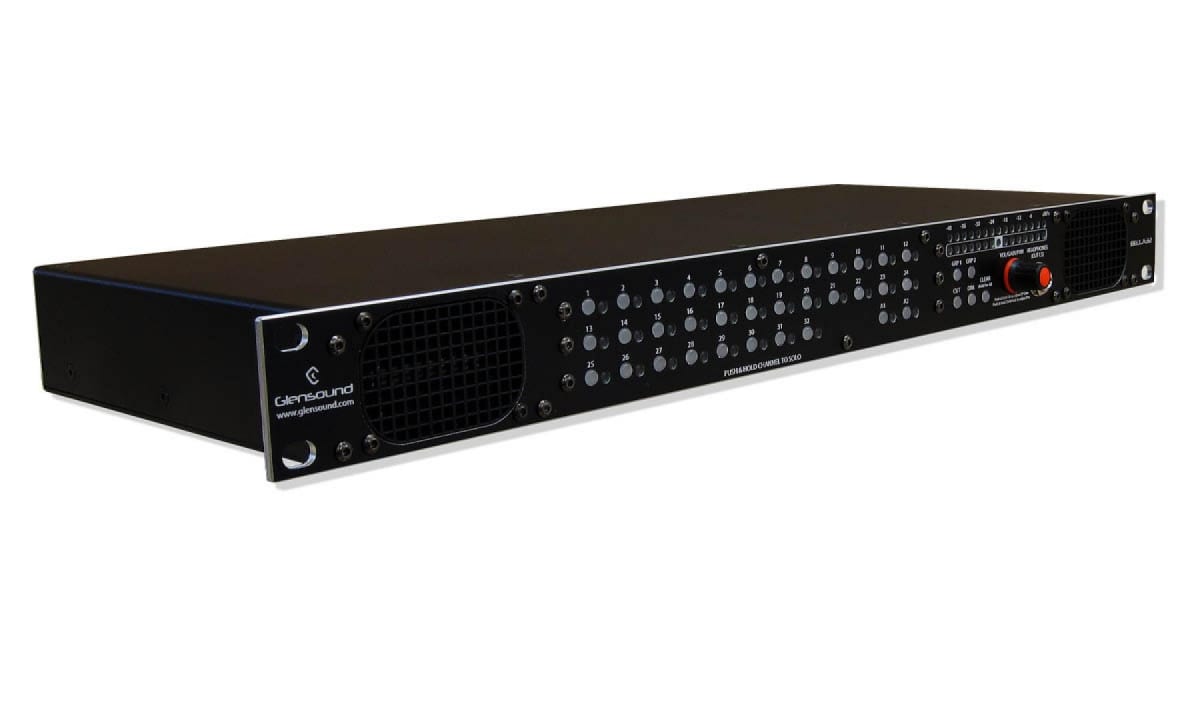

Glensound – Bella 32

Audio Monitors

More details

Similar Products

DDM888front
  • CTP Systems

CTP Systems – DDM888

The DDM888 is a 1RU Dante enabled stereo monitor unit with two high/midrange speakers and a single bass driver for quality monitoring. The unit can access sixteen stereo Dante inputs, eight stereo analogue inputs, eight balanced AES inputs and eight stereo SDI audio channels. There is also a programmable preset button for monitoring frequently used combinations. The unit includes a stereo meter which may be selected to analogue PPM style metering with phase indication or bargraph. There is an SDI output as well as a stereo analogue output for external monitoring or metering. The network connections include a selectable redundant or switch secondary.

All inputs include level controls for normalising the input levels if required. Additionally, inputs may be individually delayed by up to eight frames.

The DDM888 includes a webserver GUI for easy setup and selection.

Power may be PoE or Mains.

    Audio Monitors
See the product
nixer-RL64
  • Nixer

Nixer – RL64

A 1U 19inch rack mounted Dante monitoring and mixing unit, which allows two modes of operation a mixing mode which can mix up to 64 Dante channels at 48kHz (32 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 67 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.

The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL64 Dante. The mix output is also routed to the Dante output. The RL64 Dante is operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel. A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RL64 Dante very quickly.

The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.

    Audio Monitors
See the product
iVAM1-3_o
  • Wohler

Wohler – iVAM1-3

An LCD Monitor that provides Value for Money!

The all new iVAM1-3 represents a well featured, easy to use, competitively priced 16 channel video and audio monitor which comes standard with 3G-SDI and Analog inputs and includes Loudness measurement and phase status. License other signal formats and processing options, including AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof.

iVAM1-3 is designed to be easy to operate, providing access to both video and meters, as well as loudness and other data. The unit comes standard with Analog and 3G-SDI but has options for additional signals, including ST-2110, ST-2022, AES3, Dante, Ravenna & MADI64. The touch screen front panels make the unit easy to use, easy to operate, and easy to configure for your particular purpose. Four rotary knobs supplement the touch controls and provide fast and easy access to volume, balance, signal source or presets, and channel selection. A front mounted USB port is provided for software updates to support new and emerging technologies. All iAM Series monitors are built with an onboard web server.

The iVAM1-3 is the perfect solution for any application that requires a compact 1U unit and superior performance characteristics for the purpose of monitoring an evolving range of professional signals.

    Audio Monitors
See the product
