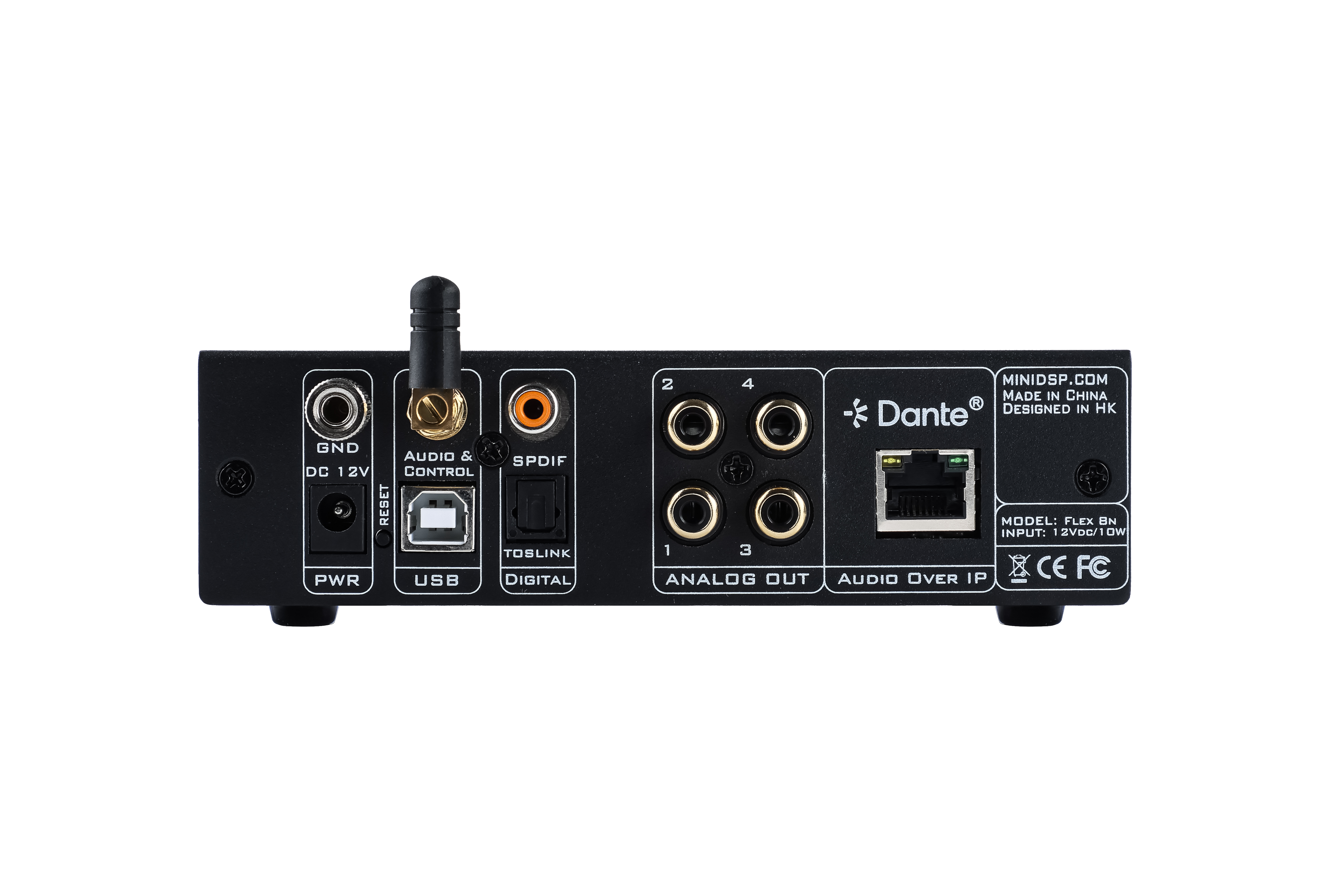

Flex 8N

DSPs (Digital Signal Processors), I/O Interfaces, Soundcards - physical / virtual, Speaker Management Processors

More Details

Similar Products

IX30-4
  • Dynacord

IX30:4

The IX30:4 is a 4-channel networked DSP amplifier with 6 kW total output power. Capable of driving Hi-Z or Lo-Z loads with powerTANK technology, the IX30:4 is ideal for a wide range of applications including sports venues, houses of worship, live performance spaces and hospitality. IX30:4 features eight (8) Dante inputs, eight (8) Dante outputs and four (4) mic/line inputs that can be used as Dante break-in points. The natively operating 96 kHz DSP features a fully equipped 12 x 12 matrix mixer, EQs, dynamics, Dynacord FX and FIR-Drive capability. All 12 inputs feature pilot-tone detection, while the eight (8) Dante and four (4) amplifier outputs allow to add pilot tones up to 30 kHz. The IX30:4 uses Dynacord‘s patented ecoRAIL technology for optimizing energy consumption. ghostPOWER via POE maintains the entire DSP, the Dante network and all mic/line inputs active, independent of the mains power. The integrated MXEstyle TaskEngine allows for system automation, scheduling, control, and integration to third party devices. IX series is fully integrated in Dynacord‘s SONICUE Sound System Software and can be used as a SONICUE control server, for direct use with the WPN1 wall panel as well as TPC-1, iOS and Windows devices.
    DSPs (Digital Signal Processors)
See the product
Transform Engine
  • Fourier Audio

Transform Engine

Transform.Engine brings Dante-connected studio-grade audio software plugins to productions and broadcasts around the world in a robust 2U rackmount server. any plugin, live.transform.engine runs VST3 plugins, giving engineers and creatives access to the very best studio-grade processing on a robust platform that is specifically designed for the complexities of live productions.
    DSPs (Digital Signal Processors)
See the product
BLU-100_Front_full_width
  • BSS

BSS – BLU-100

The Soundweb London BLU-100 offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing and a high bandwidth, fault tolerant digital audio bus.

The BLU-100 has open architecture which is fully configurable through HiQnet™ London Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.

This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.

The BLU-100 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel digital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120 and BLU-BOB devices.

Analog Inputs provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel.

Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect.

12 Control Inputs and 6 Logic Outputs allow the BLU-100 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet London Architect.

The BLU-100 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

    DSPs (Digital Signal Processors)
See the product
