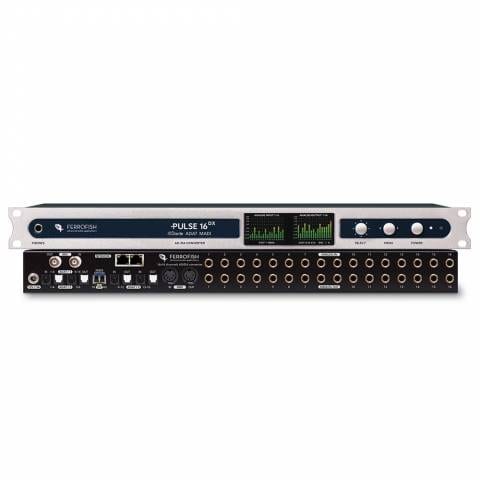

Ferrofish – Pulse 16 DX

I/O Interfaces

More details

Similar Products

unito-NIO-1212_600px
  • DELEC

DELEC – unito NIO 1212

The unito NIO 1212 provides bidirectional format conversion of analog line signals and AES/EBU audio to and from Dante. The NIO 1212 offers 12 AES and 12 analog inputs and outputs and uses RJ45 for high density, easy to use connections. It also includes redundant power supplies. The unito NIO 1212 provides bidirectional format conversion of analog line signals and AES/EBU audio to and from Dante. The NIO 1212 offers 12 AES and 12 analog inputs and outputs and uses RJ45 for high density, easy to use connections. It also includes redundant power supplies. DELEC unito devices are easy to configure via a web browser and configurations may be stored, imported and exported—reducing setup time for large installations. All the unito products include two Ethernet ports to allow redundant network infrastructure or daisy-chain wiring to reduce the cost of installation while their compact design makes them equally space efficient.
    I/O Interfaces
See the product
Dante官网logo
  • BARE

BARE – DE-6

Features： 1. The audio signal and power transmission of the speaker are realized through the same network cable. 2. The RJ45 interface on the back panel of the box is equipped with XLR firmware, which can be used for waterproofing and strengthen the connection between the box and the wire. 3. The network cable realizes signal transmission and power supply; 4. The IP address is automatically assigned through the router DHCP; 5. Each receiving channel can be controlled independently, and it can be applied to any location in the local area network 6. It has high efficiency and high sound energy output, excellent sound quality, perfect protection function and good electromagnetic compatibility characteristics. 7. The built-in DSP network active speaker can remotely control the EQ and pressure limit of the active speaker on the PC side. 8. It has complete protection functions (short circuit protection, over current protection, over and under protection, DC protection, power limit, temperature limit, long-term output power limit, clipping limiter). 9. The speaker uses Dante digital audio interface and PoE network power supply to drive the power amplifier module, and only one network cable is needed to realize the simultaneous supply of audio signal and power.
    I/O Interfaces
See the product
dark-1616m-front-angle-BAN|dark-1616m-front-angle-BAN
  • Glensound

Glensound – DARK1616M

The DARK 1616M ia an audio interface that provides connections to a Dante or AES67 ip network. The DARK 1616M ia an audio interface that provides connections to a Dante or AES67 ip network. Inputs & Outputs There are 16 digital inputs and 16 digital outputs, available on 8 x AES connections.  There are also 16 analogue inputs and 16 analogue outputs, available in paralell to the digital.  The analogue and digital outputs are always available, and the inputs work on AES input priority. The AES3 inputs have sample rate converters and can accept input frequencies up to 192kHz.  The incoming AES3 circuit is always sample rate converted to match the Dante newtork frequency.  The AES3 outputs are locked to the sample frequency of the Dante network. Connections For ease of cabling, audio I/O is presented on D25 sockets to the AES59 standard (Tascam wiring convention) for which there are a number of reasonably priced break out cables available from multiple suppliers. Remote Mic Amps The analogue inputs are switchable between mic, line and 48v phantom power.  These are controllable across the network via the Dark Controller Windows 10 app.  This allows remote control by an engineer of the input selection, gain adjust and input on/off control.  A meter is also provided for each input on the app, to monitor the input level and help with setting the gain. Network Interface Being designed for resiliant broadcast applications the Dark1616M features both redundant power supplies and redundant Dante network links with link status GPOs (general purpose outputs (solid state relays)). Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. The Dante system itself provides a completely transparant redundant link system which means that if the Dark1616M lost its primary link circuit the secondary link would automatically take over with no loss of audio. The primary and secondary network interfaces are routed internally via a network switch and it is possible to set this switch to work as a traditional network switch instead of the default redundant mode meaning that there would be just one link to the Dante network and the other connections of the switch could have other Dante or network devices connected to them. As with all Dante devices once set up Dark1616 units can be directly connected with each other with no external network hardware. Alarms On the front panel 4 bright LEDs indicate the status of the 2 power supplies and the primary and secondary local network links. In parallel to these 4 indicating LEDs there are 4 solid state relay outputs for connecting to external alarm systems for failure notification of a power supply or link fault.
    I/O Interfaces
See the product
