FBT elettronica - Horizon VHA 118SND

FBT elettronica – Horizon VHA 118SND

Product Information

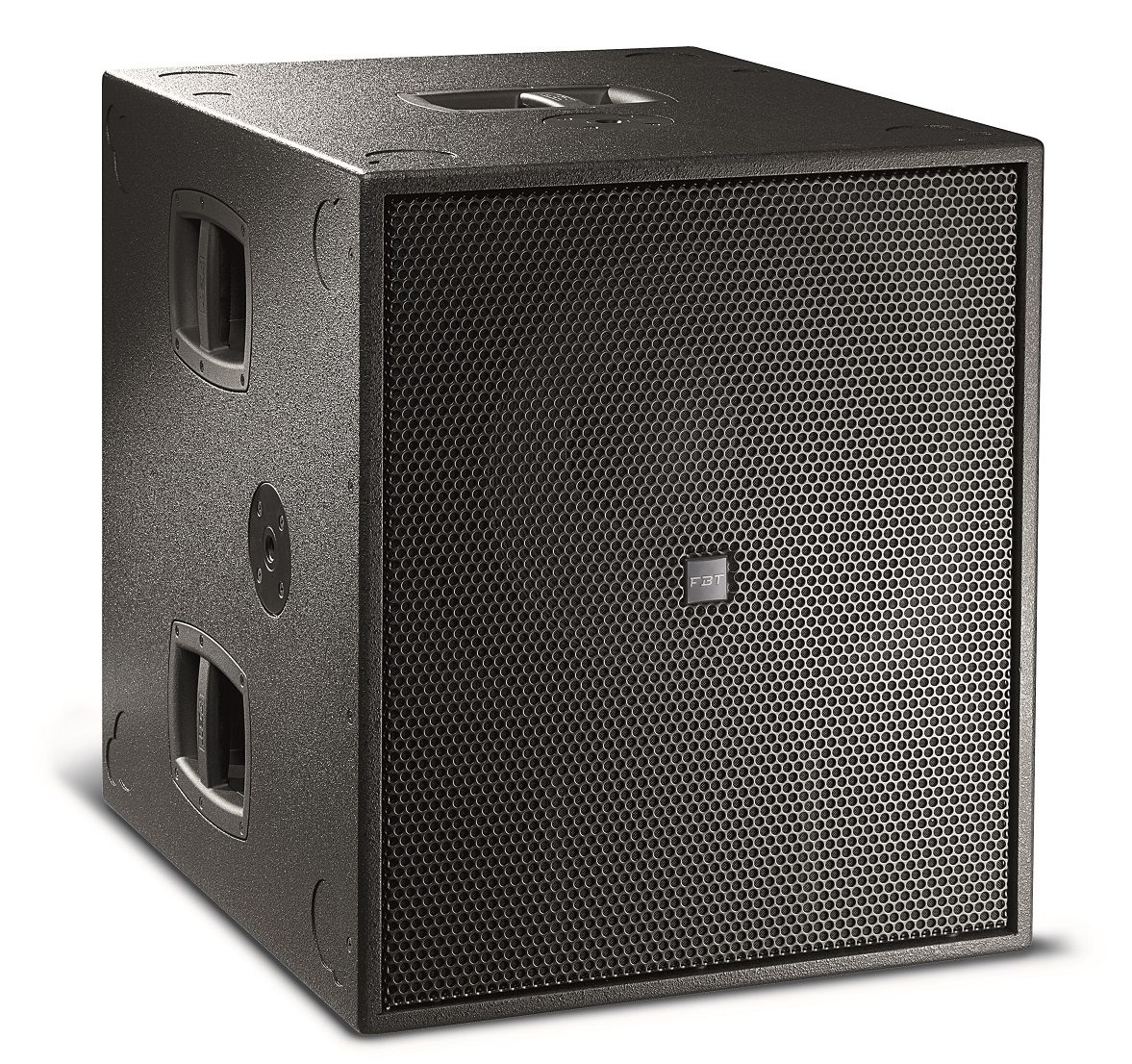

Comprising a single 18” B&C woofer, the birch plywood, bass reflex sub again deploys a laminar air-flow for refined performance, while its 2000W Class-D amplifier module offers a selection of six entirely rewritten preset algorithms.
The summit of the entire project is the 800+400W RMS amplification module with a TCP/IP network interface. Based on the OCA ALLIANCE AES70 standard, the new HORIZON family receives 24-bit 48-96Khz digital audio streaming from all devices compatible with the DANTE standard and communicates with the INFINITO System Management Suite remote control software.

Specifications

Bit Depth: 24-bit
Sample Rate: 48kHz, 96kHz

LS118

Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, the LS118 is the result of a deep understanding of customer needs and application requirements. The LS118 is easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations. Featuring QSC Acoustic Linear Phase (ALP) design, which permits effortless combination and coherent deployment of QSC loudspeakers within the same sound system, the LS118 also provides daisy-chain connections for analog, networked digital audio (Dante®) and AC power (PowerCON TRUE1). Two or more LS118 can be configured in a cardioid arrangement, maximizing low frequency output in front while minimizing unwanted energy around the sides and rear of the system.

Speakers

See the product

FZ Audio – FZ 108A

Características

Caixa acústica duas vias 1 x AF de 8” + driver 1”
DSP Interno (Digital Signal Processor) com controle via PC ou MAC através de protocolo TCP-IP
Amplificação Digital e fonte chaveada
Flytrack superior e lateral para içamento
Quatro pontos M6 para suporte pan/Tilt e flange 35mm para pedestal
Formato PA / monitor simétrico – caixa L e R
Presets e Filtro High Pass selecionável através de software com comando no painel traseiro
Falante de baixa compressão de potencia com bobina de 2,5”
Entradas de áudio digital protocolo Dante opcional

Speakers

See the product

Aimline

AIMLINE – AL4.1PoE

The AIMLINE AL 4.1PoE column speaker is powered by a POE+ network amplifier with two channel Dante input. No external power supply is required.Thanks to the use of a high efficiently power supply this amplifier is rated with 30 Watts RMS / 60 Watts peak (using a PoE+switch). The enclosure is equipped with 4 x 3,5” speaker and 1” HF driver in a biamped system.The internal powerful 96 kHz DSP gives access to gain, delay, 10-Bd EQ with IIR filter and 24 internal presets. The PANC software controls the DSP in an IP network. This system will solve the issue of having to provide a separate amplifier or I/O interfaces for speaker installations using just a single CAT cable over long distances. This assembly can be used in wide range of projects in multi zones for speech and background music applications.

Speakers

See the product
