Extron – AXI 22 AT

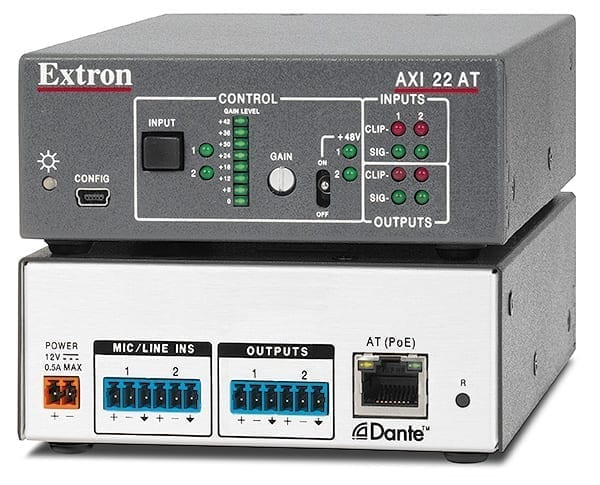

The Extron AXI 22 AT is a quarter rack width audio interface for integrating two mic/line sources onto a Dante™-enabled audio system.

The Extron AXI 22 AT is a quarter rack width audio interface for integrating two mic/line sources onto a Dante™-enabled audio system. It features two mic or line inputs on a 3.5 mm captive screw connector, with switchable 48 volt phantom power. Input select, gain, and phantom power settings are controllable from the front panel, via DSP Configurator Software, or by SIS command. The AXI 22 AT also features two line level outputs for routing any two Dante channels from the network to the audio system. The AXI 22 AT interfaces with any Dante-equipped audio processor,  and can be powered through PoE.

• Dante Ch: 2x2
• Bit Depth: 24-bit
• Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• AES67 Enabled
