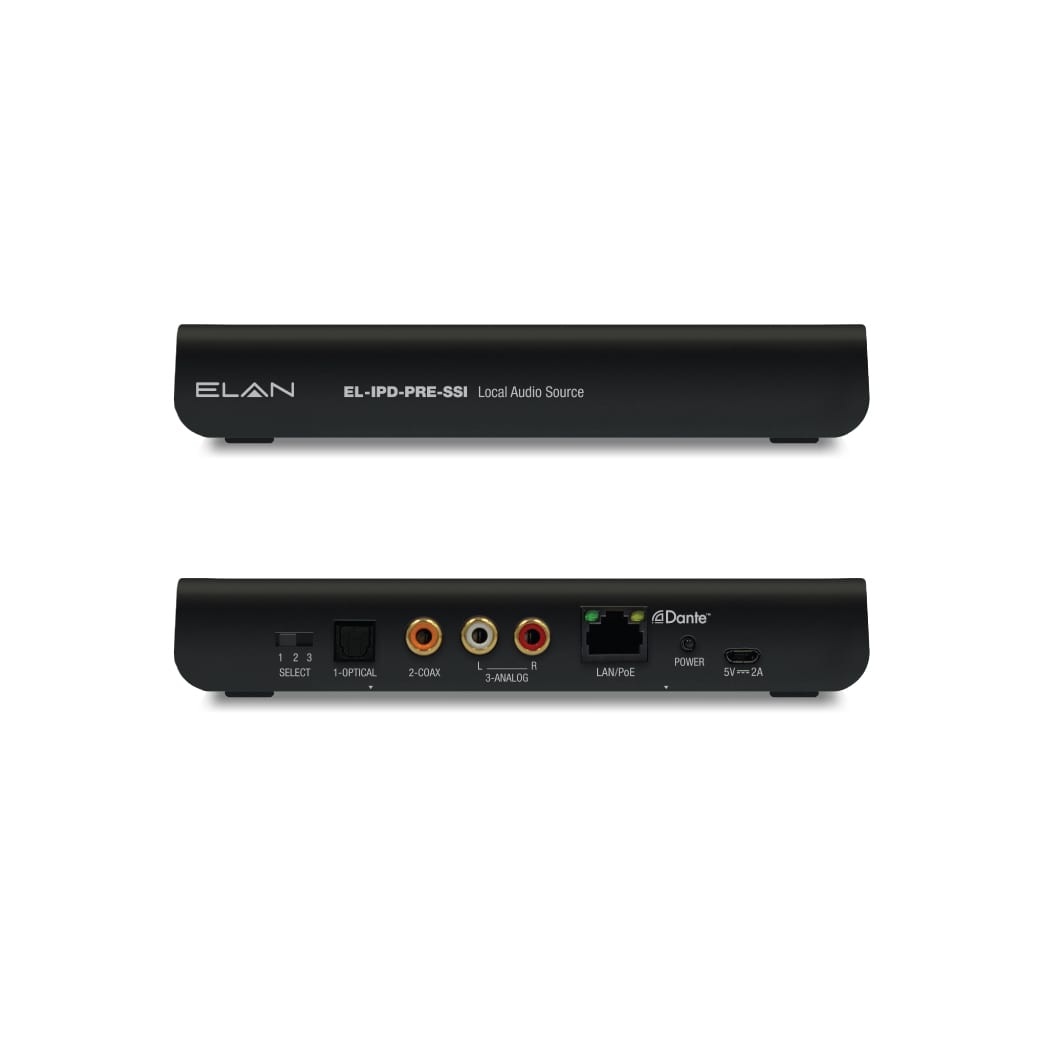

ELAN – EL-IPD-PRE-SSI

I/O Interfaces

More details

Similar Products

dark-1616m-front-angle-BAN|dark-1616m-front-angle-BAN
  • Glensound

Glensound – DARK1616M

The DARK 1616M ia an audio interface that provides connections to a Dante or AES67 ip network. The DARK 1616M ia an audio interface that provides connections to a Dante or AES67 ip network. Inputs & Outputs There are 16 digital inputs and 16 digital outputs, available on 8 x AES connections.  There are also 16 analogue inputs and 16 analogue outputs, available in paralell to the digital.  The analogue and digital outputs are always available, and the inputs work on AES input priority. The AES3 inputs have sample rate converters and can accept input frequencies up to 192kHz.  The incoming AES3 circuit is always sample rate converted to match the Dante newtork frequency.  The AES3 outputs are locked to the sample frequency of the Dante network. Connections For ease of cabling, audio I/O is presented on D25 sockets to the AES59 standard (Tascam wiring convention) for which there are a number of reasonably priced break out cables available from multiple suppliers. Remote Mic Amps The analogue inputs are switchable between mic, line and 48v phantom power.  These are controllable across the network via the Dark Controller Windows 10 app.  This allows remote control by an engineer of the input selection, gain adjust and input on/off control.  A meter is also provided for each input on the app, to monitor the input level and help with setting the gain. Network Interface Being designed for resiliant broadcast applications the Dark1616M features both redundant power supplies and redundant Dante network links with link status GPOs (general purpose outputs (solid state relays)). Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. The Dante system itself provides a completely transparant redundant link system which means that if the Dark1616M lost its primary link circuit the secondary link would automatically take over with no loss of audio. The primary and secondary network interfaces are routed internally via a network switch and it is possible to set this switch to work as a traditional network switch instead of the default redundant mode meaning that there would be just one link to the Dante network and the other connections of the switch could have other Dante or network devices connected to them. As with all Dante devices once set up Dark1616 units can be directly connected with each other with no external network hardware. Alarms On the front panel 4 bright LEDs indicate the status of the 2 power supplies and the primary and secondary local network links. In parallel to these 4 indicating LEDs there are 4 solid state relay outputs for connecting to external alarm systems for failure notification of a power supply or link fault.
    I/O Interfaces
  • Dante Ch: 16x16
  • 24-bit
See the product
ssl-bl-II-bridge
  • Solid State Logic

SSL – BL II-Bridge

For fixed installations where ruggedised connections are not required, the BL II Bridge also offers 256 channels of 96 kHz audio between a Live console and a Dante network by utilising SSL’s proprietary high bandwidth Blacklight II protocol. For fixed installations where ruggedised connections are not required, the BL II Bridge also offers 256 channels of 96 kHz audio between a Live console and a Dante network by utilising SSL’s proprietary high bandwidth Blacklight II protocol.
    I/O Interfaces
  • Dante Ch: 256x256
  • 24-bit
See the product
hubextender
  • SoundTube

SoundTube – IPD-HUB 2 Extender Box

SoundTube's new IPD Hub 2 Extender Box for adding onto a Hub 2 local system. Connect up to 5 IPD Hub 2 amplifiers to an extender box. The IPD Hub 2 utilizes a Dante infrastructure for flexible audio distribution. The amp is complete with local and Dante inputs and local and network control to address requirements for commercial audio connectivity in numerous scalable systems such as retail, bar, restaurants, hospitality, spas, education facilities, and more.

    I/O Interfaces
See the product
