Ecler - MIMO4040DN

Ecler – MIMO4040DN

Product Information

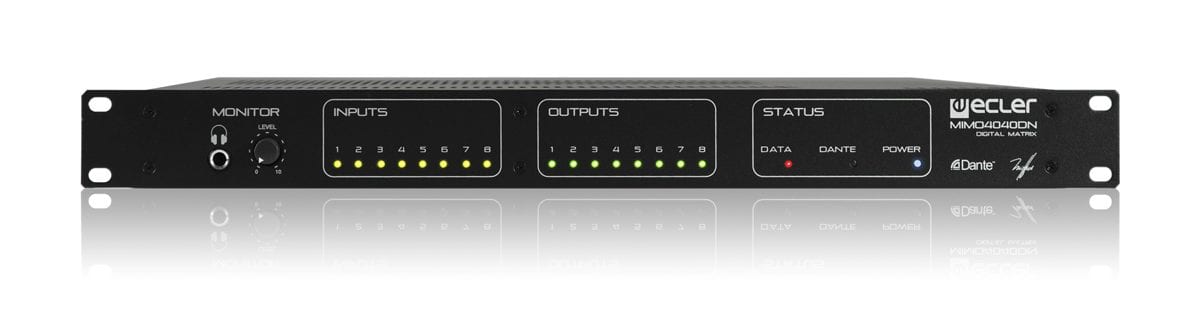

MIMO4040DN is a digital matrix with native processing of 40 inputs and 40 outputs (8 analogue inputs, 8 analogue outputs, 32 Dante™ inputs and 32 Dante™ outputs).

MIMO4040DN is a digital matrix with native processing of 40 inputs and 40 outputs (8 analogue inputs, 8 analogue outputs, 32 Dante™ inputs and 32 Dante™ outputs). Incorporating audio over IP technology, MIMO4040DN allows signal transmission using a Local Ethernet network. It features accessories from WPNET Series connected by Ethernet. MIMO4040DN is also capable of executing EclerNet projects thanks to its processor acting as a UCP server. Dimensions 482,6x44x266,5mm. Weight 3.25 kg

Specifications

Dante Ch: 32x32
Bit Depth: 24-bit
Sample Rate: 48kHz
AES67 Enabled

AllDSP – ASP-2M6

The ASP-2M6 is a powerful processor with two analog inputs, two AES3 inputs, two Dante inputs, six outputs (12dBu), 10 PEQ bands per input and output and a frequency range up to 40kHz. The rugged analog input stage accepts input voltages of up to +23dBu thus matching any source on the market today, with an excellent dynamic range of 118dB. Using a switch-mode power supply for clean power supply rails and superior ruggedness, 64-bit digital processing and some of the best converters available on the market today, the ASP-2M6 offers sound quality that sets standards in professional as well as high-end home audio.

DSPs (Digital Signal Processors)

See the product

Q-SYS

Core 6000 CXR

The Q-SYS Core 6000 CXR is an industry-first solution that combines the processing capabilities of the Q-SYS realtime operating system with the compact, ruggedized, MIL STD, NEBS and Marinecompliant Dell PowerEdge XR11 server

DSPs (Digital Signal Processors)

Dante Ch: 8x8
24-bit

See the product

AllDSP

AllDSP – ASP-4M8

The ASP-4M8 is a powerful processor with four analog inputs, two AES3 inputs, two Dante inputs, eight outputs (12dBu), 10 PEQ bands per input and output and a frequency range up to 26kHz. The rugged analog input stage accepts input voltages of up to +23dBu thus matching any source on the market today, with an excellent dynamic range of 118dB. Using a switch-mode power supply for clean power supply rails and superior ruggedness, 64-bit digital processing and some of the best converters available on the market today, the ASP-4M8 offers sound quality that sets standards in professional as well as high-end home audio.

DSPs (Digital Signal Processors)

See the product

Ecler – MIMO4040DN

Product Information

Specifications

Similar Products

AllDSP – ASP-2M6

Core 6000 CXR

AllDSP – ASP-4M8
