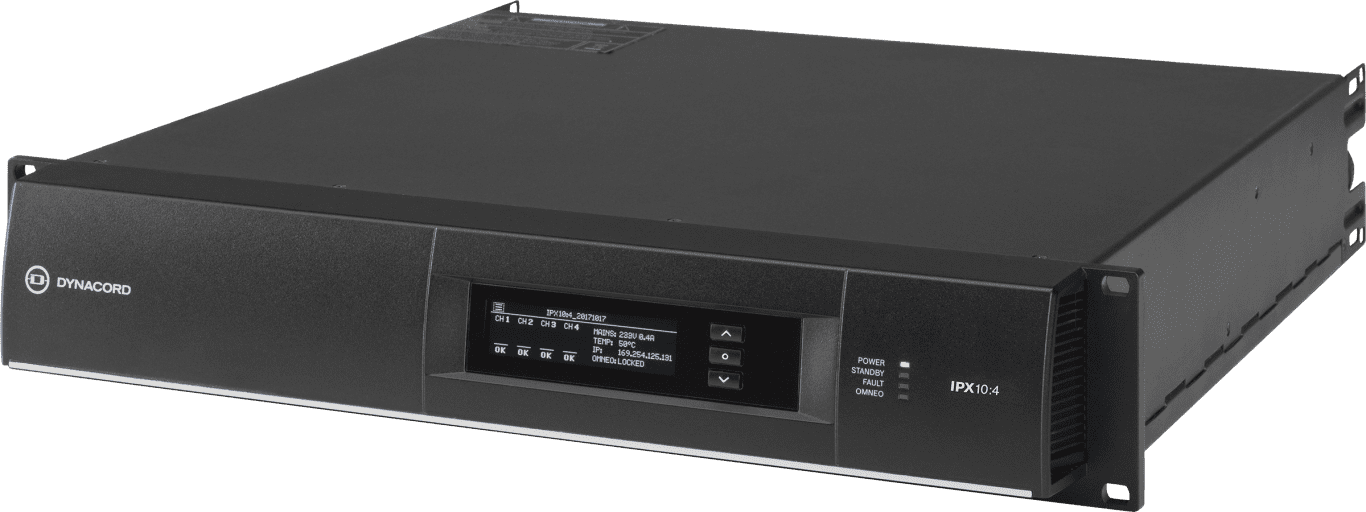

Dynacord – IPX10:4

Amplifiers

More details

Similar Products

NPA23_D2
  • Kingray

Kingray – NPA23_D2

NPA23-D2 is a 2*300W8Ω class-D amplifier, which configures with 2-channel Dante input interface and DSP processing solution such as compressor, limiter, noise gate, parameter equalization, matrix routing, delay, etc. Suitable for various scene with demands of sound reinforcement system. The whole series of products are equipped with TCP/IP communication interface, mobile phone App control, GPIO extension control and Mconsole unified management.

◆ Optional 2-channel Dante network audio input

◆ Support Mconsole and app TCON network control

◆ IPS color LCD

◆ Built in DSP digital processor

◆ Multiple control modes are supported: USB、TCP/IP、RS232、RS485

◆ Monitor the working state of power amplifier

◆ Call and standby the amplifier by remote

◆ Support balanced XLR input and unbalanced RCA input

◆ Support stereo, bridge, mono, matrix mode, switch by software

◆ Input sensitivity 0dBU / 6dbu setting by software or LCD

◆ Power on state: Power On/Standby

◆ Constant Pressure and Resistance support:100V、70V、8Ω、4Ω

    Amplifiers
See the product
jbl-dsi-2-series
  • JBL Synthesis

JBL – DSi 2.0 Series

The DSi 2.0 amplifier family, JBL’s first line of dedicated cinema amplifiers, builds on Crown DSI Digital Screen Array amplifier technology, integrating best-in-class DSP from Crown’s flagship CDi DriveCore series to deliver potent, cost-effective amplification for JBL’s entire range of cinema loudspeakers. Choose from three power configurations, available in analog and analog-plus-digital “D” versions featuring Dante/AES67 connectivity.

Deploy systems faster and easier while streamlining hardware needs: DSi 2.0 amplifiers are designed to meet power requirements of JBL cinema speakers, for a single JBL cinema solution. D-models interface with Dolby Atmos directly, without the need for additional processing hardware. JBL Cinema Speaker presets simplify configuration, optimize playback audio and protect against equipment damage. All DSi 2.0 amps feature SNMP connectivity for networked audio distribution, immersive installations and direct interfacing with third-party theater-management and cinema-control systems.

Models supply 4 channels of amplification with bridgeable outputs in a single 2RU footprint, and can power up to four JBL surround speakers with a single amp channel in high-power-density 2Ω mode. All DSi 2.0 series amps incorporate best-in-class, 32-bit/96kHz floating-point DSP and Crown DriveCore technology, which replaces hundreds of internal components with a single processing chip for superior power density, stability and audio fidelity.

Cinema managers and integrators looking to maximize their power investment and future-proof their systems can count on the JBL DSi 2.0 series to deliver robust, reliable amplification in an efficient, cost-effective package.

    Amplifiers
See the product
Q60i
  • DMIX

DMIX – Q60i

Advantages:

● High power density and light body weight, not only can meet the needs of large sound amplifying system, but also easy to move and install;

● Powerful DSP function, including routing control, level adjustment, filtering, equalization, voltage limit, delay, inverting, mute, etc.

● Accurate and intuitive status indicator and LCD function display, working status;

● Power amplifier built-in DSP front stage, without external signal front stage, you can match different styles of speakers, easily adjust the required effect, and can be stored in the parameters of multiple speakers, convenient access;

● Environmental monitoring unit can be used to collect voltage, current, temperature and other parameters;

● Accurate and sensitive temperature detection protection, to ensure that the machine during heating work in a safe range.

Technical parameters：

Product Model: Q60i

Product type: Two channel DSP digital power amplifier

8 Ω power: 1500W X2

4 Ω power: 2500W X2

Analog maximum input： 22dBu

AES maximum input： 0dBS

Frequency response： 20-20KHz +/- 1dB

THD+N： <1%

Damping coefficient： 200

Signal to noise ratio： 102

Working voltage： 180V-240V

    Amplifiers
See the product
