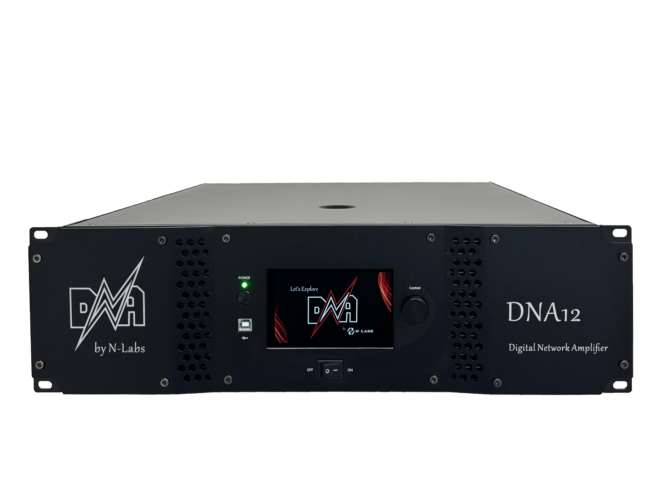

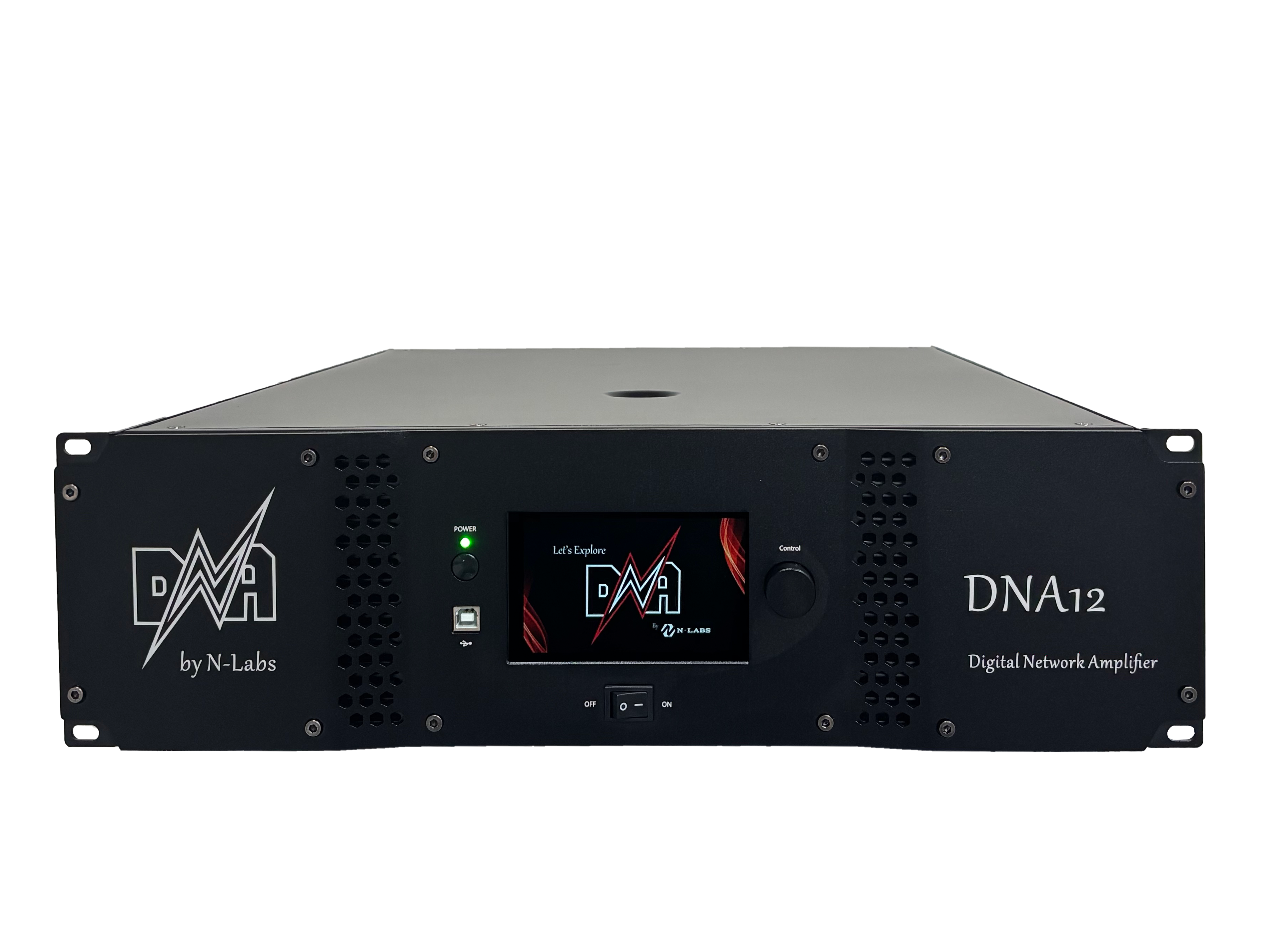

DNA12

Amplifiers

More Details

Similar Products

nXe-3.02_600px
  • Ashly Audio

Ashly – nXe3.02bd

The nXe3.02bd is a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 3,000W per channel at Low Z, 2,450W per channel in 70V mode, and 1,250W in 100V mode. There is an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply auto-detects 120VAC or 240VAC mains, and a Neutrik® powerCON is used for the AC cord. Each channel has selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel has remote DC level control. Input connectors are Neutrik® XLR/TRS combo jack and Euroblock, while output connectors are Neutrik® speakON. The unit has a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit has Ethernet control with a real-time clock for event scheduling. The unit has serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The amplifier has temperature dependent variable speed forced-air cooling.
    Amplifiers
See the product
extron1004_1000
  • Extron Electronics

Extron – NetPA U 1004-100V

The Extron NetPA U 1004-100V is a Dante-enabled, ENERGY STAR qualified power amplifier that delivers four 100 watt channels in a half rack, 1U, plenum rated enclosure. With its integrated DSP, the NetPA U 1004-100V includes essential signal processing that offers the ability to meet the requirements of complex, decentralized systems while Dante Domain Manager and AES67 support ensure wide compatibility with enterprise configurations and other network audio devices. Exceptional thermal design provides the ability to install units without using rack spaces for ventilation, conserving precious rack space. The NetPA U 1004-100V is a highly efficient advanced Class D amplifier that features defeatable auto standby with fast wake up and our patented CDRS – Class D Ripple Suppression.

    Amplifiers
  • Dante Ch: 4x4
  • 24-bit
See the product
AV25-2-NET
  • Stewart Audio

Stewart Audio – AV25-2 NET

2 Channel Networked Subcompact Amplifier - 25W x 2 @ 8Ω 2 channel networked amplifier in a subcompact, 1/3 rack form factor. Includes two channels of networked amplification.
  • Two channels of networked input
  • Remote volume control and muting
  • External inline power supply
    Amplifiers
See the product
