Dmix – SLB115a

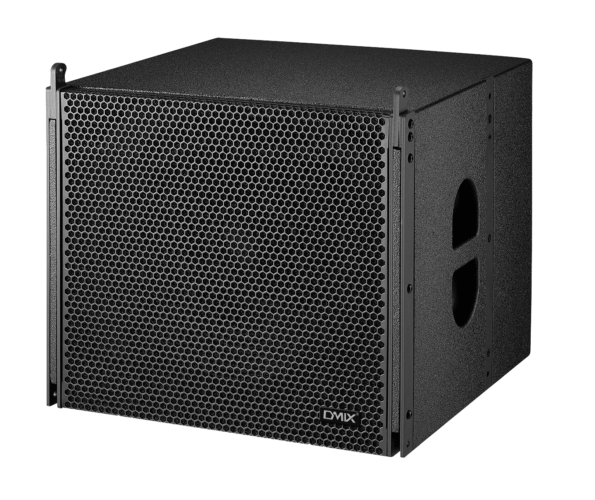

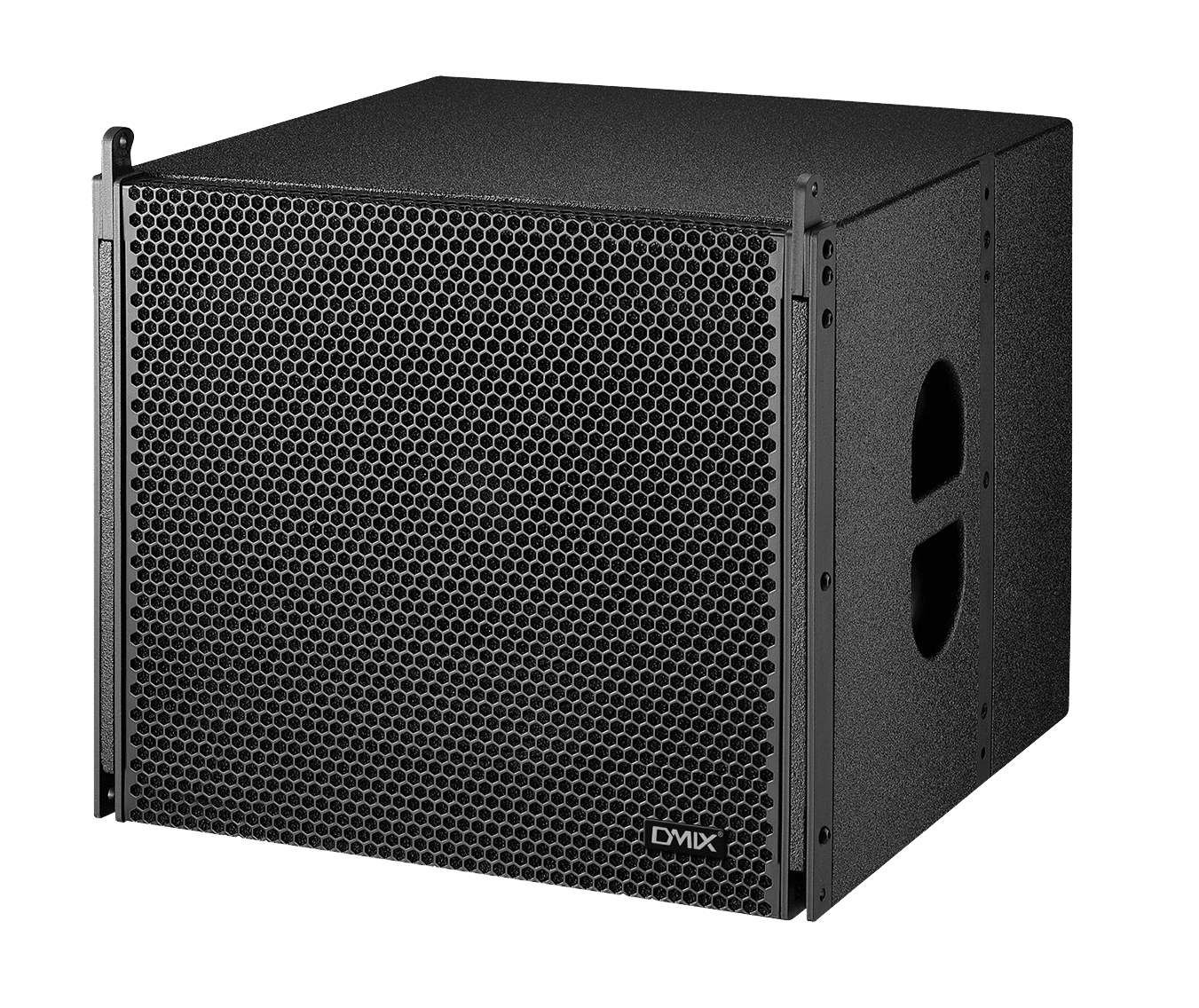

The SLB 115A is a small active compact line array speaker system designed to achieve high fidelity and ultra high definition amplification in small and medium sized applications. Lightweight and flexible with excellent performance, compact box design and special mounting components make installation easy and quick.

The SLB 115A active Linear array ULTRA-low frequency speaker has a built-in three-channel power amplifier module with a high-performance digital signal processing system. Two full-frequency channels drive the system with three SLA 206, and the remaining channel drives the ULTRA-low frequency SLB 115A. With two balanced line input and one signal output port, plus one power input and output port, fully meet the use requirements, but also convenient system expansion. With the high performance 2 in 3 out DSP digital audio signal processor, various scene parameters can be set according to different application requirements and different number of speakers. Through the control software setting and quick key selection, greatly simplifies the system construction process, full frequency channel and ultra low frequency channel can be adjusted independently, can achieve the best effect in a very short time. The SLB 115A uses a high-efficiency class D power amplifier design, a patented L-shaped heat dissipation design combined with an integrated cast aluminum back plate for heat dissipation, resulting in a high energy conversion efficiency of up to 2x700W+1800W, while being compact and stable in performance.
