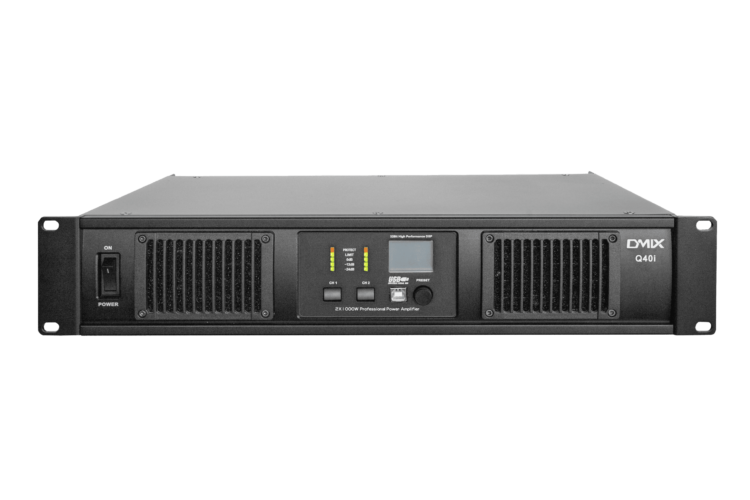

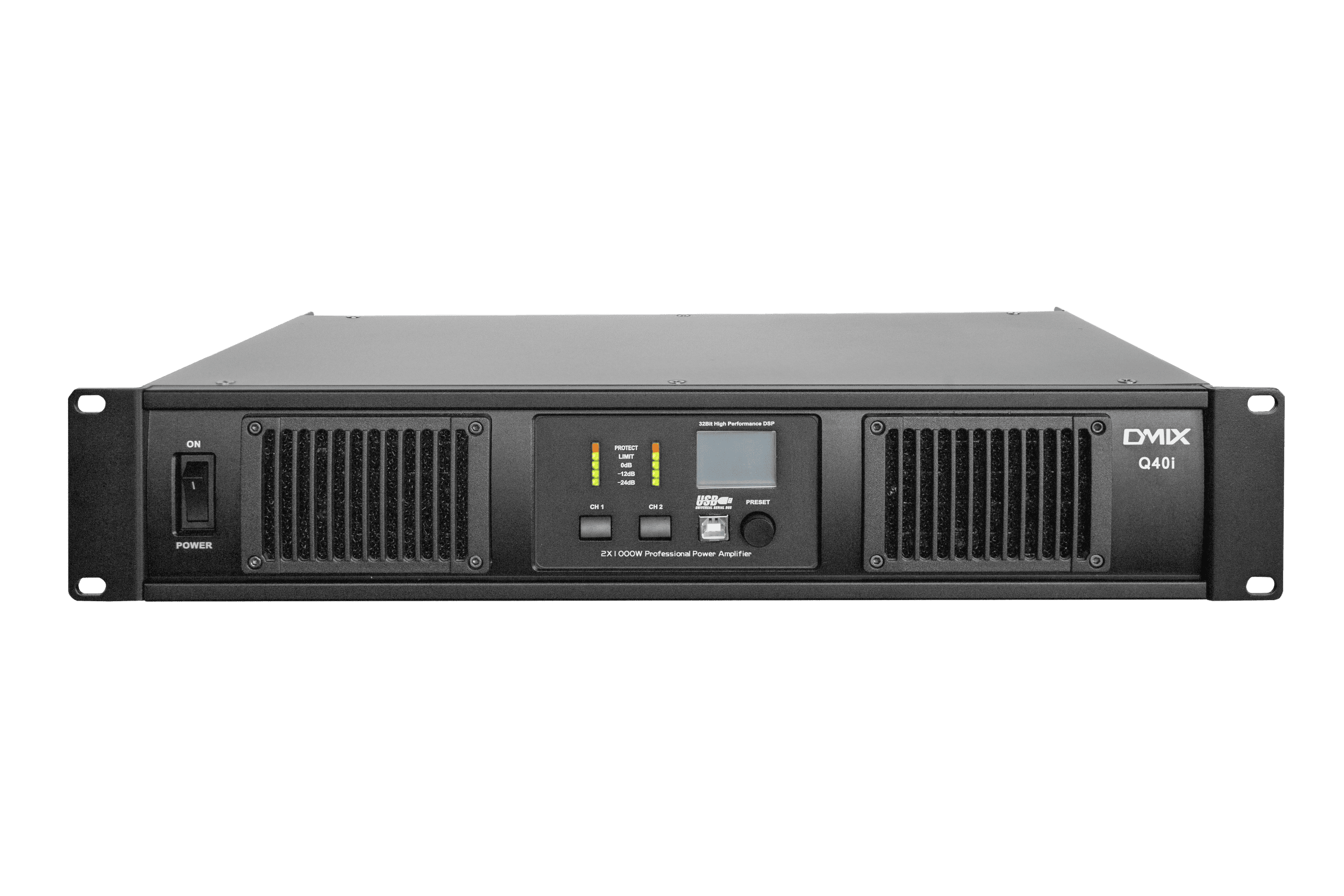

Dmix – Q40i


● High power density and light body weight, not only can meet the needs of large sound amplifying system, but also easy to move and install;

● Powerful DSP function, including routing control, level adjustment, filtering, equalization, voltage limit, delay, inverting, mute, etc.

● Accurate and intuitive status indicator and LCD function display, working status;

● Power amplifier built-in DSP front stage, without external signal front stage, you can match different styles of speakers, easily adjust the required effect, and can be stored in the parameters of multiple speakers, convenient access;

● Environmental monitoring unit can be used to collect voltage, current, temperature and other parameters;

● Accurate and sensitive temperature detection protection, to ensure that the machine during heating work in a safe range.

Technical parameters:

Product Model: Q40i

Product type: Two channel DSP digital power amplifier

8 Ω power: 1000W X2

4 Ω power: 2000W X2

Analog maximum input: 22dBu

AES maximum input: 0dBS

Frequency response: 20-20KHz +/- 1dB

THD+N: <1%

Damping coefficient: 200

Signal to noise ratio: 102

Working voltage: 180V-240V
