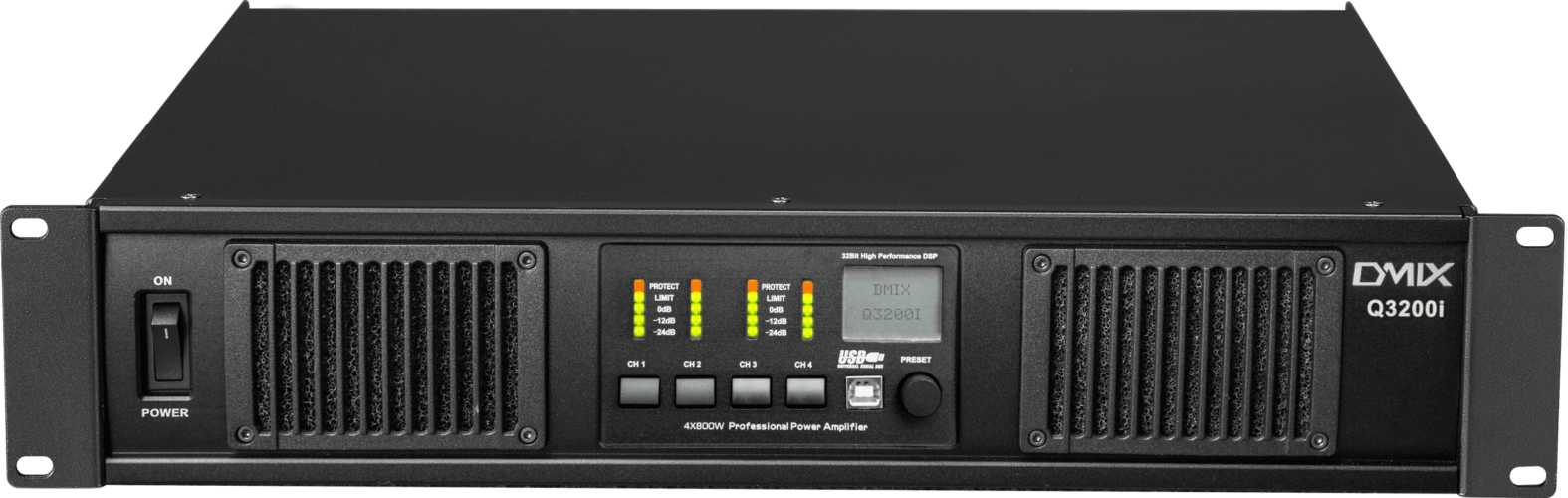

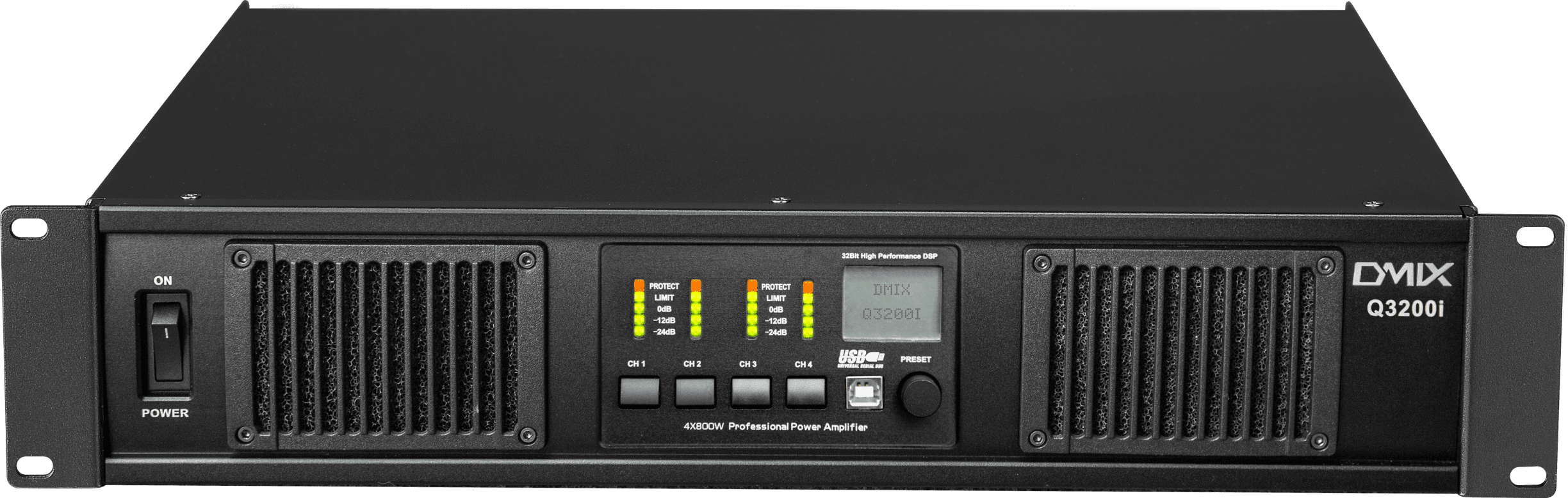

Dmix – Q3200i

◆ High power density and light body weight, not only can meet the needs of large sound amplification system, but also easy to carry and install;

◆ Powerful DSP functions, including routing control, level adjustment, filtering, equalization, voltage limit, delay, inverting, mute, etc.

◆ Accurate and intuitive status indicator and LCD function display, working status;

◆ Power amplifier built-in DSP front stage, without external signal front stage, you can match different styles of speakers, easily adjust the required effect, and can be stored in the parameters of multiple speakers, convenient access;

◆ Environmental monitoring unit can be used to collect voltage, current, temperature and other parameters;

◆ Precise and sensitive temperature detection and protection, to ensure that the machine work within a safe range during heating.

Technical parameters:

Product Model: Q3200i

Product type: Four-channel Dante digital power amplifier

8 Ω power: 4×800W

4 Ω power: 4×1200W

2 Ω power: 4×1500W

Bridge: 4×2500W

Analog audio signal: Maximum input level +18dB

Digital Audio signal: 24/20 bit 48KHz

Corresponding frequency (20-20khz) : + -1dB

THD + N: <0.5%

Dynamic range: 120dB

Ambient humidity: <90%

Damping coefficient: >200

Signal to noise ratio: >105dB
