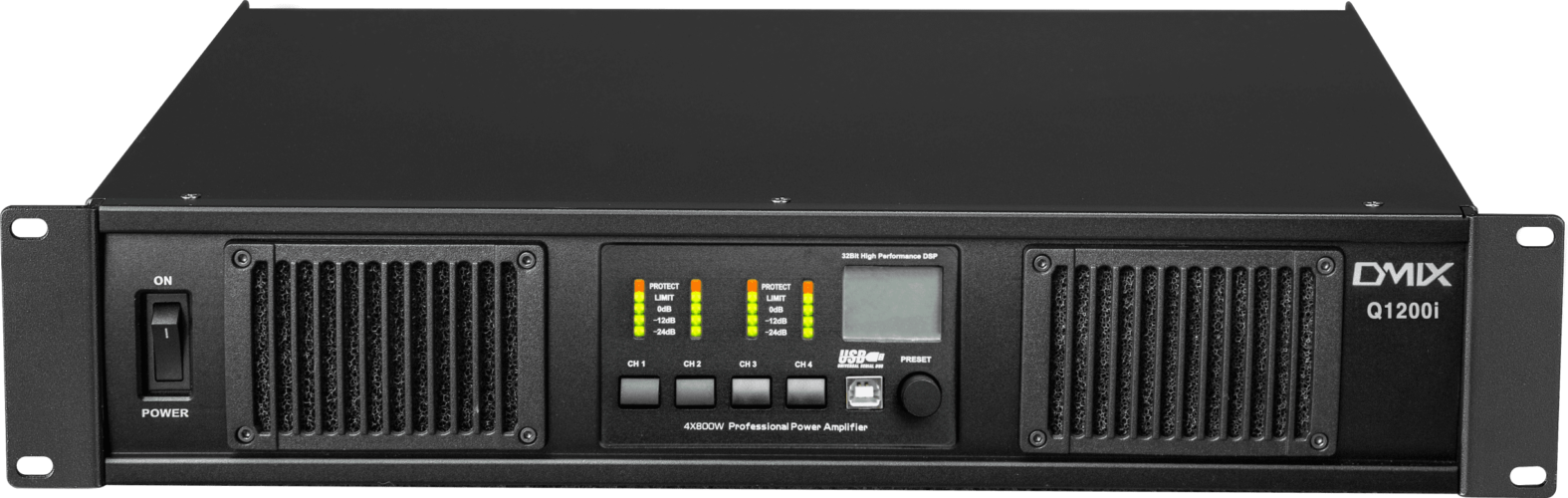

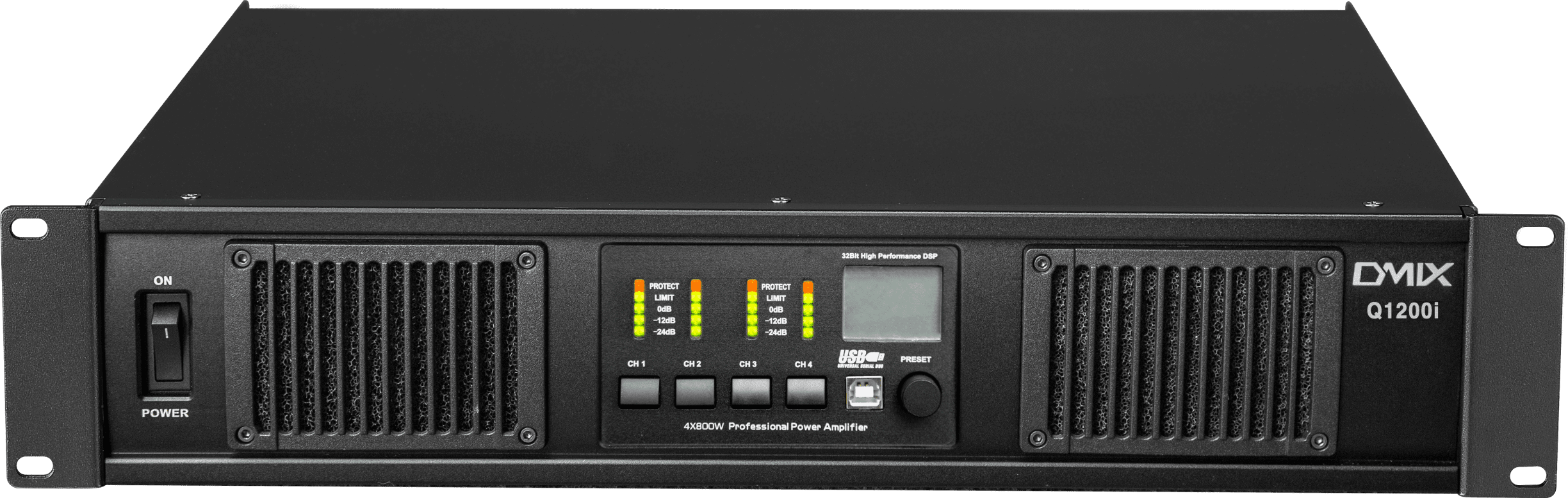

Dmix – Q1200i

◆ High power density and light body weight, not only can meet the needs of large sound amplification system, but also easy to carry and install;

◆ Powerful DSP functions, including routing control, level adjustment, filtering, equalization, voltage limit, delay, inverting, mute, etc.

◆ Accurate and intuitive status indicator and LCD function display, working status;

◆ Power amplifier built-in DSP front stage, without external signal front stage, you can match different styles of speakers, easily adjust the required effect, and can be stored in the parameters of multiple speakers, convenient access;

◆ Environmental monitoring unit can be used to collect voltage, current, temperature and other parameters;

◆ Precise and sensitive temperature detection and protection, to ensure that the machine work within a safe range during heating.

Technical parameters:

Product Model: Q1200i

Product type: Four-channel Dante digital power amplifier

8 Ω power: 300W X4

4 Ω power: 600W X4

Analog maximum input: 22dBu

AES maximum input: 0dBS

Dante input: 48k

Frequency response: 20-20KHz +/- 1dB

THD+N: <0.8%

Damping coefficient: 150

Signal to noise ratio: 100

Working voltage: 180-240V
