Product Information
Advantages:
● High power density and light body weight, not only can meet the needs of large sound amplifying system, but also easy to move and install;
● Powerful DSP function, including routing control, level adjustment, filtering, equalization, voltage limit, delay, inverting, mute, etc.
● Accurate and intuitive status indicator and LCD function display, working status;
● Power amplifier built-in DSP front stage, without external signal front stage, you can match different styles of speakers, easily adjust the required effect, and can be stored in the parameters of multiple speakers, convenient access;
● Environmental monitoring unit can be used to collect voltage, current, temperature and other parameters;
● Accurate and sensitive temperature detection protection, to ensure that the machine during heating work in a safe range.
Technical parameters：

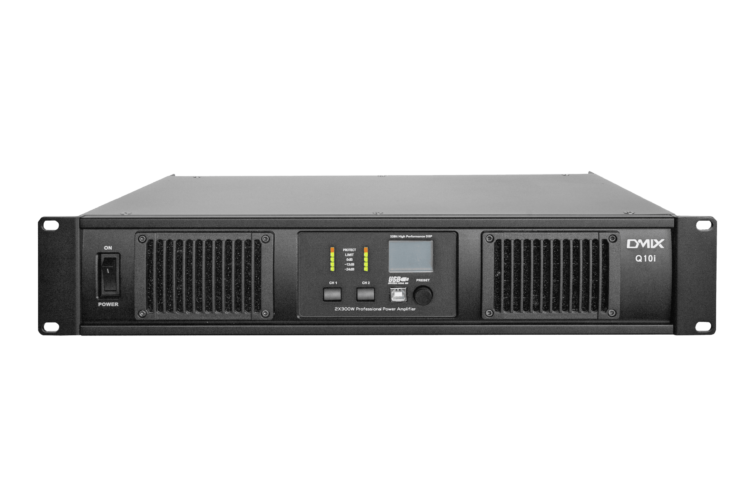

Product Model: Q10i
Product type: Two channel DSP digital power amplifier
8 Ω power: 300W X2
4 Ω power: 600W X2
Analog maximum input： 22dBu
AES maximum input： 0dBS
Frequency response： 20-20KHz +/- 1dB
THD+N： <0.8%
Damping coefficient： 150
Signal to noise ratio： 100
Working voltage： 100-240V
