Dmix - GLA312a

Power amplifier:

Rated power (EIAJTHD=1%,1KHZ) ： 8Ω: 1200W+1200W 4 Ω: 1600W+1600W

RMS output voltage (THD=1%,1KHZ)：98V 8 Ω

THD+N (10% power rating) ：<1%

Imd-smpte (10% power rating) ：<0.5%

Frequency response：-0.5dB 1dB 20-20khz

SNR：>95dB >98dB

Power input: 220-240VAC 50/60Hz

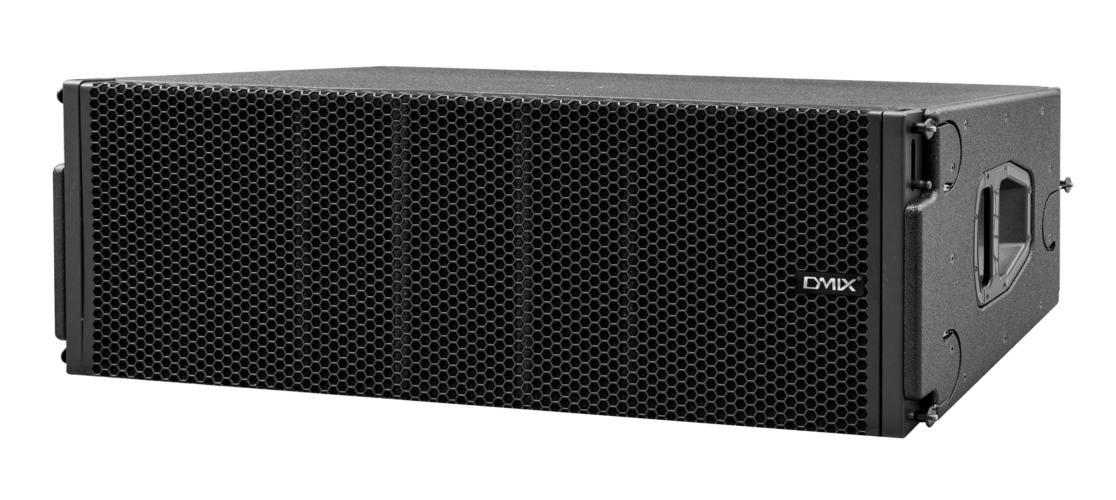

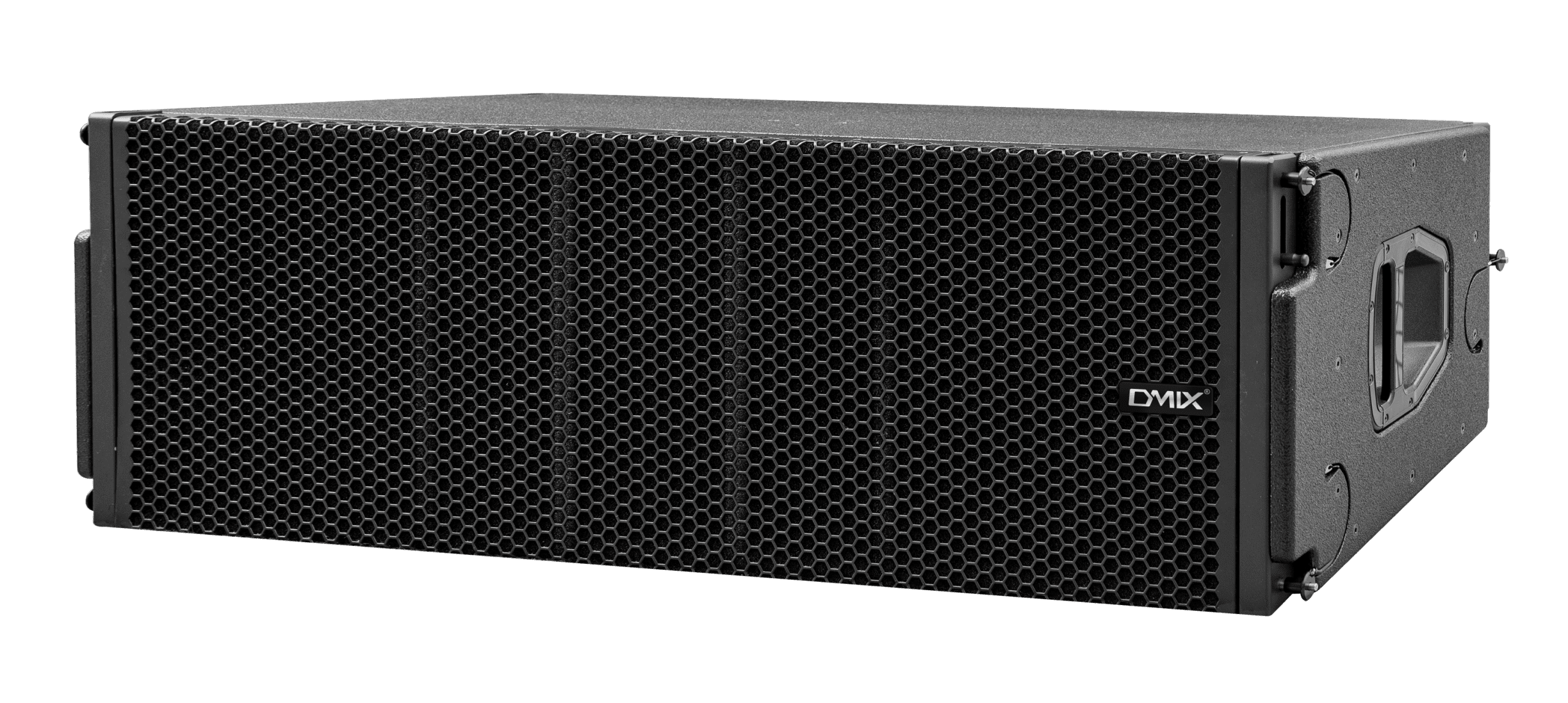

Speaker model: GLA 312a

Speaker category: Dual 12 “Active triplex array speakers

Unit configuration: HF：3×1.7″ Treble driver MF：1×10″ MF unit LF：2×12″ woofer

Frequency response: 55Hz-20KHz (-10dB)

Rated power: MHF：400W LF：700W

Sensitivity: MHF：105dB LF：102dB

Nominal impedance: MHF：8Ω LF：8Ω

Coverage Angle (H x V) : 120° x 10°，Vertical adjustable

Sound pressure level MHF: 139dB LF: 136dB（peak）

Power amplifier: 1500W+1500W

Size (mm) : 1138x381x645（WxHxD）
