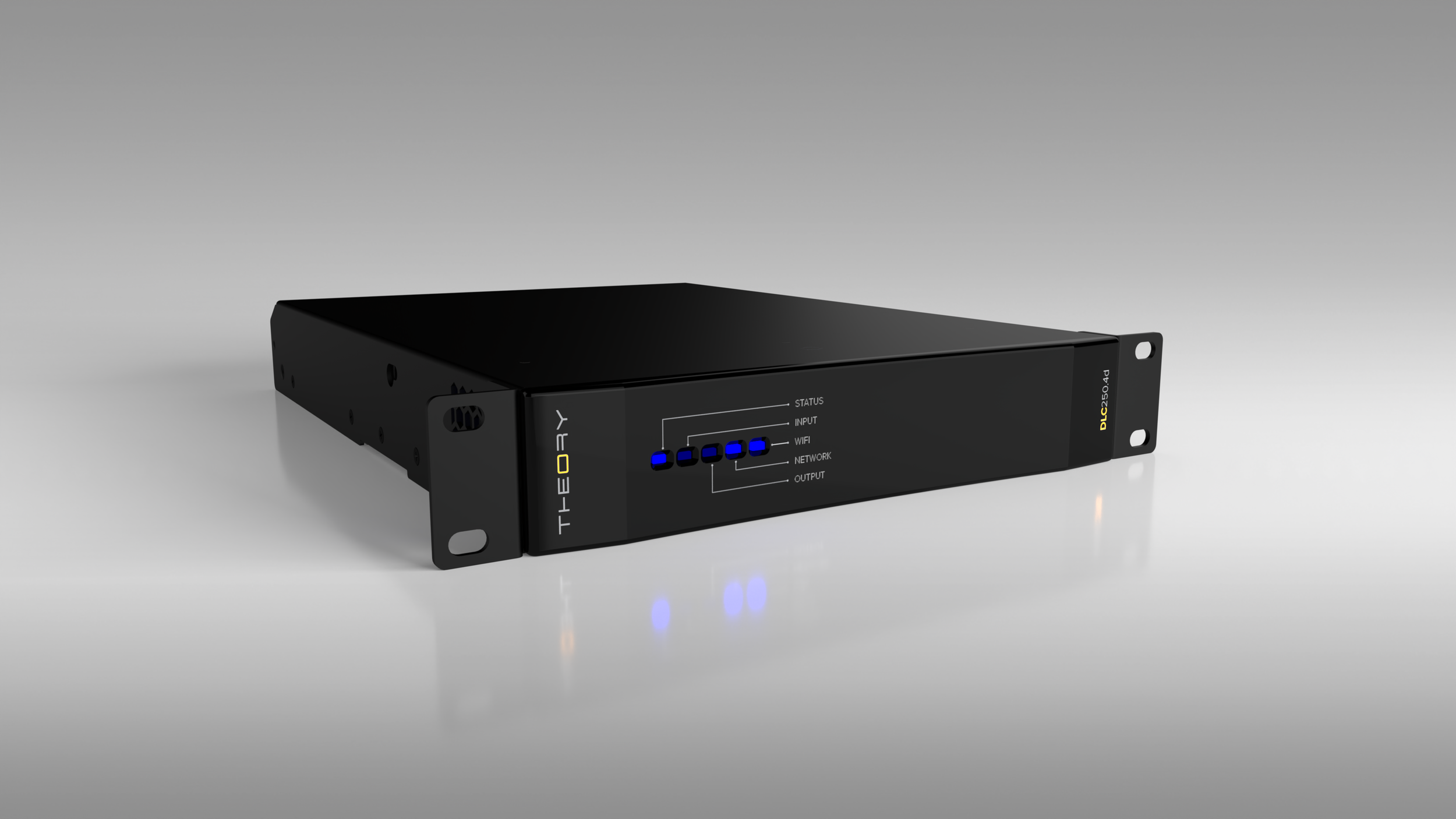

Just like its predecessor (the DLC-250.4), the DLC-250.4d is small but mighty and it’s now even mightier with the addition of Dante and AES67. Capable of delivering 250W into 4, 8, and 16-ohms from any channel pair, or 125W into 4, 8 or 16-ohms all channels driven, this little 6.5lb., one-half rack loudspeaker controller packs a punch into minimal rack space.
The digitally guided full-frequency sound column adopts a multi-channel high-current digital power amplifier with advanced dedicated coaxial transducers, and each transducer is equipped with a high-frequency array of three tweeters. "Array in an array" three tweeter designs shorten the distance between high-frequency sources, thereby greatly improving high-frequency performance through a continuous and wide horizontal distribution.
As long as it is simple and directly connected to the network, multi-channel digital audio transmission, user-controlled DSP, user-selectable presets, and comprehensive remote system management control can be achieved , and all use standard Ethernet hardware and cables.
With computer remote control, audio system technicians can make settings that cover almost all audience areas. Multiple beams can be set one by one, and a software-controlled DSP is designed to separate them from a single array: up to 4 beams. The acoustic center of the array can also be raised or lowered because all array elements are identical and equidistant. Suitable for large lecture halls, stadiums, theaters, etc.
The digitally controlled line arrays Ascolto® are equipped with high-quality 2,5” neodymium loudspeakers, capable to spread perfectly voice as well as sound instruments. They can handle higher power applications, delivering great tone at any volume levels. Each Ascolto® digital line array contains a set of custom-designed, fully-programmable 135-MHz, 48-bit DSPs where high precision 76-bit accumulators ensure the bit resolution for a total quality in digital audio processing such as beam filtering and audio equalization.
The Ascolto LH2425 is unique for its acoustic directivity, extremely selective and capable of reaching deep space. The Ascolto LH2425 is particularly suitable to ensure an extended coverage in large environments, where it needs simultaneously a very incisive beam and a bright tone.
Ascolto LH2425
enhances the quality of the sound;
improves environment with acoustically difficult characteristics;
focuses the sound energy directly to the public, minimizing the effects of the sound
reflections of the ceiling and the side walls;
fulfills all aesthetic and architectural requirements;
distributes capably audio in cathedrals, churches, mosques, theaters, auditoriums, airports,
railway stations and in general everywhere it is necessary acoustic precision and reliability.
The digitally controlled line arrays Ascolto® are equipped with high-quality neodymium loudspeakers, capable to spread perfectly voice as well as sound instruments. They can handle higher power applications, delivering great tone at any volume levels. Each Ascolto® digital line array contains a set of custom-designed, fully-programmable 135-MHz, 48-bit DSPs where high precision 76-bit accumulators ensure the bit resolution for a total quality in digital audio processing such as beam filtering and audio equalization.
The Ascolto LH2425 possesses the innovative Anti Reverberation System ARS®, capable of increasing the voice intelligibility in reverberant environments. ARS conveys uniformly acoustic energy on the lower part of the audio beam and reduce drastically the audio emission upwards, attenuating significantly the acoustic reflections related to ceilings.
AVE Line Array User Control® is a sophisticated software application that uses a complex proprietary algorithm to calculate accurately SPL distribution of Ascolto® Digital Line Arrays from their EASE® models. It allows the user to select the appropriate dispersion pattern and transfer aiming and filtering parameters to the digital line array through the dedicated network.
The AVE IRC Infrared Remote Control lets you control the configuration settings even if a host computer is not available.
The LH2425 is optionally available with Dante card. Thus the LH2425 can be integrated in an existing speaker system or in a Dante network.
The MONISMS MNS-8AXXWS-2P [MONISMS Model:MNS-8A11WS-2P / MNS-8A12WS-2P / MNS-8A22WS-2P] is a digital steerable active wall-mounted wooden speakers with DANTE®-Input.
Thanks to its very small and unobtrusive enclosure the MONISMS-Speaker is a fit for most architecturally sensitive environment including museums, churches, conference-rooms and many more challenging spaces and environments.
MNS-8AXXWS-2P is powered by standard POE+ and has a MAX power of 30 watts. If there is not POE+ used, It can used the external 19VDC power supply.
[Model:MNS-8A11WS-2P] 1 Channel, Only Master DANTE Speaker.
[Model:MNS-8A12WS-2P] 1 Channel, Reserve Additional Passive Speaker Terminals.
[Model:MNS-8A22WS-2P] 2 Channels [One Channel for Master Speaker, Another Channel for Passive Speaker], Reserve Additional Passive Speaker Terminals.
