DiGiCo - A164D Wall LCD

DiGiCo – A164D Wall LCD

Product Information

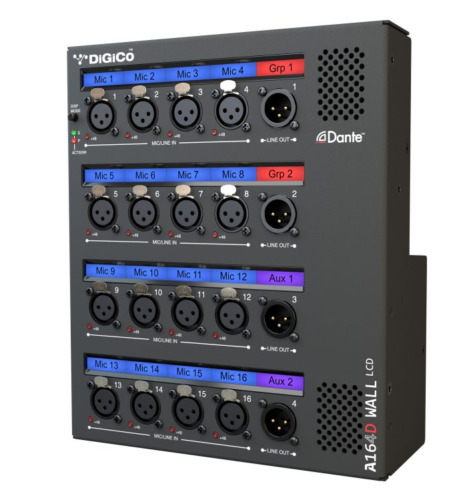

The A164D Wall LCD is a 16 input 4 output I/O Expander that uses the Dante network protocol to provide fixed, additional I/O anywhere on a network and is designed for wall or floor mounting. It comes with 16 Mic Preamps on XLR inputs with Phantom Power status LEDs and four XLR Line Outs with direct preamp control from the 4REA4 controller software. It can run at both 48K and 96k sample rates and it is AES67 compatible. Primary and secondary Dante ports come with locking EtherCON connectors and can run in both redundant and switched mode. All LCD labels are dimmable and can be customised using Dante controller software.

promedias – proDT 2XI/CI UP

AES67 & DDM ready! 4x0 LINE IN (XLR/Cinch Stereo female) PoE / 5VDC Input Stereo L+R DANTE® Broadway Sample Rate: max. 192kHz | Latency: min. 0.25ms Network Speed: 1Gb/s / 100Mb/s Dimensionen: Gr. I+I (1x2/2x1) - 148x88x_mm Einbaumasse: 118x67x_mm (Ausschnitt x Tiefe) Farbe: Weiss (Feller 61), ähnlich RAL 9010 (auch als Standard u.a. Schwarz 60 oder Option RAL/NCS Farbton erhältlich!)

I/O Interfaces

See the product

Micromedia

Micromedia – Digimedia DAC

Digimedia HPA DAC is a professional studio-grade 2 channel Dante™ interface for Dante™ Audio Monitoring with analog headphone and XLR line output. On board is a high quality DAC from TI/Burr Brown with typical S/N 114dB and a high class amplifier with up to S/N 120dB. Digimedia HPA DAC is a professional studio-grade 2 channel Dante™ interface for Dante™ Audio Monitoring with analog headphone and XLR line output. On board is a high quality DAC from TI/Burr Brown with typical S/N 114dB and a high class amplifier with up to S/N 120dB. There is Dante Domain Manager and AES67 support build in. Interface has PoE (Power over Ethernet) or can be powered with external 12V DC. Professional high quality Neutrik XLR and jack audio connectors with gold contacts for long life. The audio volume of headphone and line output can be set separately with a single rotary.

I/O Interfaces

See the product

AudioScience

AudioScience – Iyo Dante 16.0LR

The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format. The 16.0MR provides 16 balanced analog audio inputs and 0 outputs. Each input accommodates microphone through line level signals with a gain range of -60 to +24dBu. +48V phantom power is individually switchable on each input. With RJ-45/StudioHub + GPIO Connector close-up.

RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.

The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.

Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.

All units can also be operated in Livewire+ AES67 interoperability mode.

I/O Interfaces

See the product
