DANTE.RAV.SRC.IO

Product Information

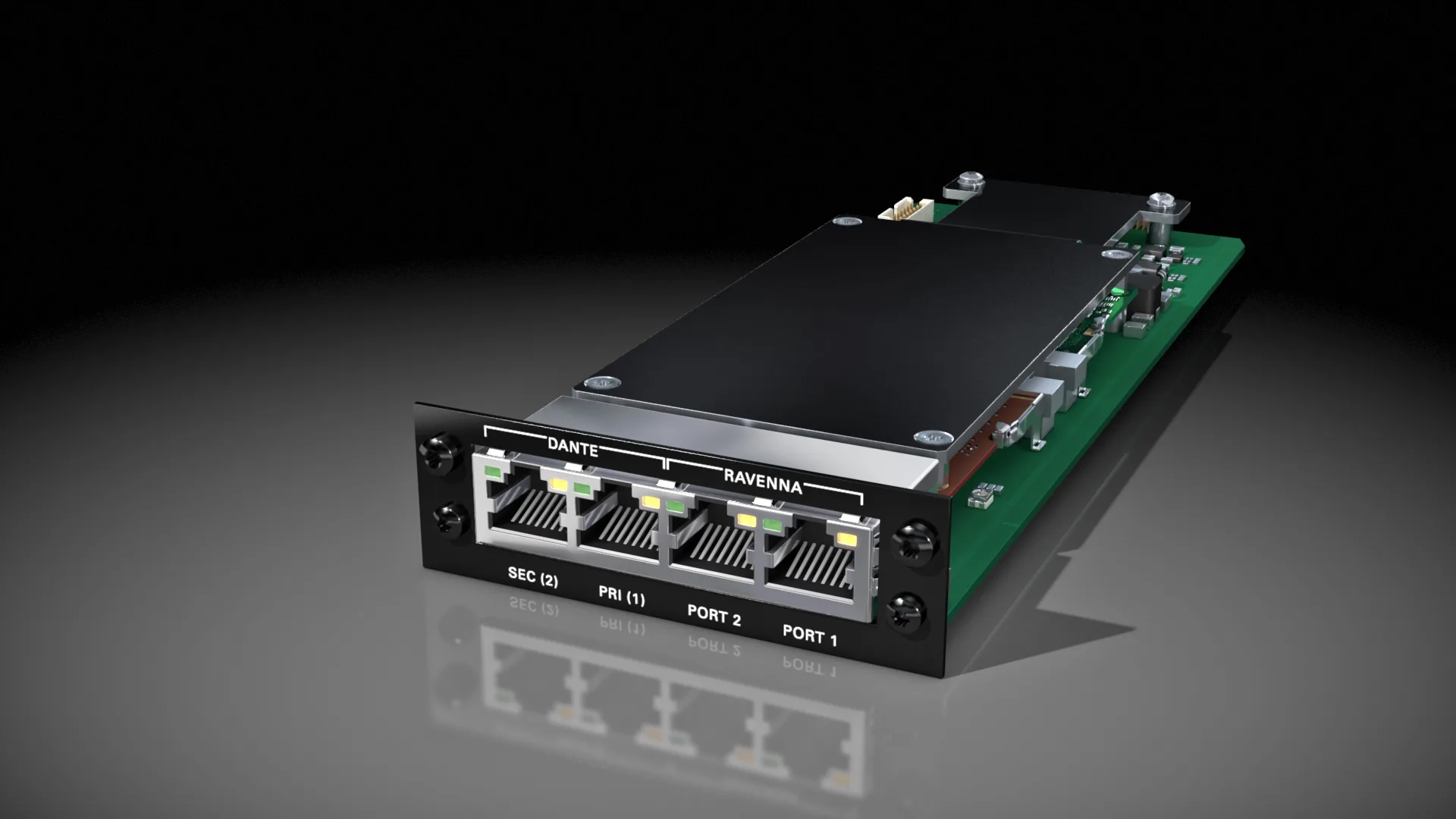

DANTE.RAV.SRC.IO is a dual audio network module for the PRODIGY Series and MAVEN.A to interface with 64 channels each of Dante and RAVENNA streams.

One module, two audio engines
Hosting two audio network boards the module offers 2 x 64 of two different audio protocols – Dante and RAVENNA. This allows to interface with two audio protocols in a single A Slot of MAVEN.A or PRODIGY.MC. With the two A Slots of a PRODIGY.MP the coverage can be extended by a third or even fourth audio protocol.

Sample Rate Conversion
Individual HD SRC for bi-directional sample rate conversion is on board as a standard. The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRC) for input and output. The two audio network boards can be operated at different sample rates.

Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.

Specifications

Dante Ch: 64x64
Bit Depth: 24-bit
Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
AES67 Enabled
