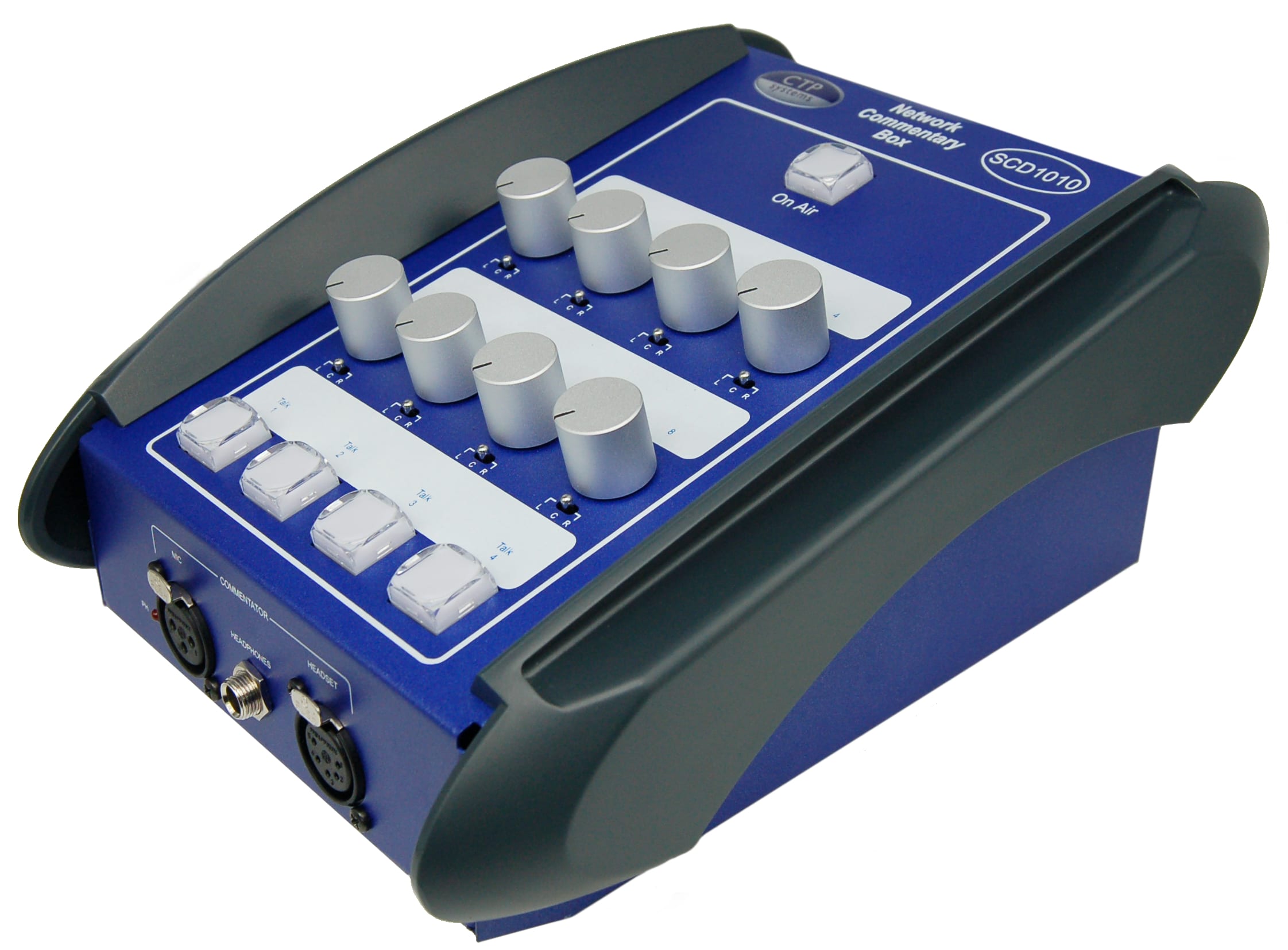

CTP Systems – SCD1010

Commentary Systems

More details

Similar Products

glensound-inferno-commentary
  • Glensound

Glensound – Inferno

The Glensound Inferno is acommentary system for a single user or a large multi-commentator system. Connections use audio network cabling, either directly to the GSI-Dark88 break out box, or across a structured network. The Dante audio protocol is used to transport the audio, making the system flexible an dprogrammable as part of a larger Dante system.
  • Single mic/line/48v input with compressor/limiter
  • Headphone mixer has 7 inputs supplied from the Dante network, plus the local input (sidetone)
  • Each headphone input has left/both/right headphone switching
  • 7 talkback circuits are programmable via the Dante network
    Commentary Systems
  • Dante Ch: 7x8
  • AES67 Enabled
See the product
glensound-paradiso_1200px|glensound-paradiso_1200px
  • Glensound

Glensound – PARADISO

Paradiso is a commentators box for 3 commentators. It can be used by itself to provide the commentary facilities alongside an OB truck for small events or multiple Paradisos can be used at large events that require Worldwide broadcast coverage. Paradiso is a commentators box for 3 commentators. It can be used by itself to provide the commentary facilities alongside an OB truck for small events or multiple Paradisos can be used at large events that require Worldwide broadcast coverage. Audio links between the Paradiso and other equipment are by Dante (AES67 compliant) complete with redundant copper & fibre links. Analogue I/O and AES3 I/O are also provided directly from the unit for local connections and/ or another layer of redundancy. The Paradiso has been designed to be intuitive & easy to use for Commentators’ who would rather be talking about the game than working out how the equipment works, and is also built to our exacting rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer. Features
  • Comprehensive commentary unit
  • Suitable for 3 commentators on 1 programme or 3 seperate programmes
  • Glitch free redundant Dante network audio
  • Two copper & two fibre network interfaces
  • Multiple power sources (PoE x 2), Mains & DC
  • Best microphone amplifiers available
  • ePaper displays to make the commentators life easy
  • Local analogue and AES3 inputs & outputs for extra redundancy
  • Includes our much revered Referee compressor/ limiter
  • Windows 10 app for remote control & setup
  • No expense spared to make this the best commentary unit ever
    Commentary Systems
  • Dante Ch: 32x32
  • 24-bit
See the product
m234_ta_1200-1024x739|m234_ta_1200-1024x721
  • Studio Technologies

Studio Technologies – Model 234 Announcer’s Console

The Model 234 Announcer's Console is designed for on-air and live-event use by announcers and commentators who will benefit from high-performance microphone and headphone audio resources. Supports Dante audio-over-Etherent media networking technology and includes an extensive set of features. The compact tabletop unit uses the STcontroller software application for configuration. Five pushbutton switches allow the user to control five audio output channels: one main and four talkback. Two gigabit (GbE) Ethernet interfaces allow redundant Dante operation. Powered using a Power-over-Ethernet (PoE) connection or an external source of 12 Vdc.

    Commentary Systems
  • Dante Ch: 9x7
  • 16-bit, 24-bit, 32-bit
See the product
