CTP Systems – DIO1616MA

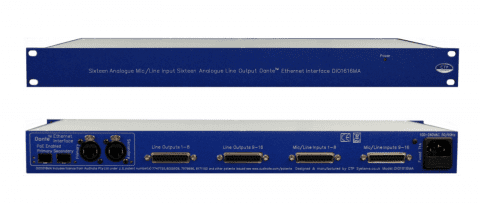

The DIO1616MA is a Dante enabled interface unit converting sixteen analogue microphone or line level inputs to Dante streams. The unit also converts Dante streams to sixteen line level analogue outputs.

The DIO1616MA is a Dante enabled interface unit converting sixteen analogue microphone or line level inputs to Dante streams. The unit also converts Dante streams to sixteen line level analogue outputs.

All microphone/line level inputs have adjustable gain from +65dB to -12dB and the analogue outputs from +12dB to -12dB. Phantom power may be selected to each microphone input. Network connections may be copper and/or fibre and the unit includes connections for network redundancy. The DIO1616MA is PoE enabled so it may be operated without a mains supply. All level control and phantom switching is adjusted using the built in web server. The unit operates at a sample rates of 48kHz or 96kHz

• Dante Ch: 16x16
• Sample Rate: 48kHz, 96kHz
• AES67 Enabled
