CTP Systems – DDM888

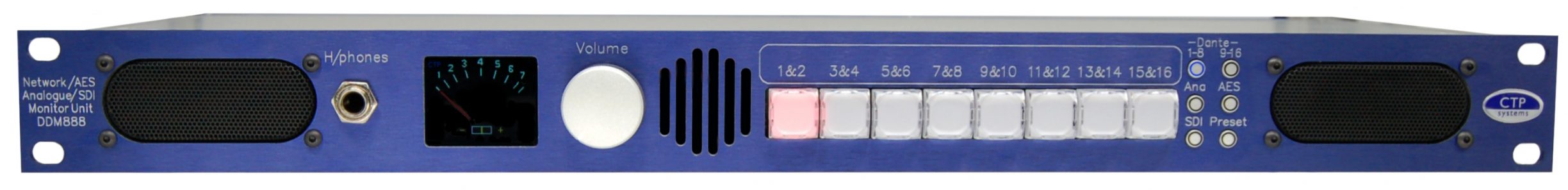

The DDM888 is a 1RU Dante enabled stereo monitor unit with two high/midrange speakers and a single bass driver for quality monitoring. The unit can access sixteen stereo Dante inputs, eight stereo analogue inputs, eight balanced AES inputs and eight stereo SDI audio channels. There is also a programmable preset button for monitoring frequently used combinations. The unit includes a stereo meter which may be selected to analogue PPM style metering with phase indication or bargraph. There is an SDI output as well as a stereo analogue output for external monitoring or metering. The network connections include a selectable redundant or switch secondary.

All inputs include level controls for normalising the input levels if required. Additionally, inputs may be individually delayed by up to eight frames.

The DDM888 includes a webserver GUI for easy setup and selection.

Power may be PoE or Mains.

• Dante Ch: 16x0
