CTP Systems – NMS802

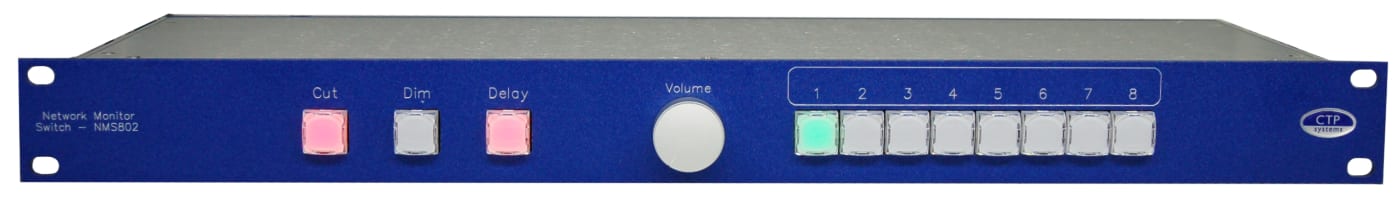

Designed primarily for switching between monitoring systems the NMS802 is a Dante enabled PoE Network Monitor Switch with one Dante stereo input, one stereo analogue input, eight Dante stereo outputs and one analogue stereo output. The unit includes up to eight frames of programmable stereo delay plus cut, dim and a volume control. There are also two GPI inputs for remote control of cut and dim. The NMS802 has many features that may be programmed via its web page including key colours, delay time, input and output gains and remote control of functions. For convenience of adjustment the delay time may also be set using just the front panel controls as well as via the web page. The unit includes a redundant network connection which may alternatively be used as a network switch output. The Dante Left and Right inputs are mirrored on the rear of the NMS802 as balanced XLR analogue inputs. One of the outputs may be selected as analogue available on the rear.
The unit may be powered by mains or PoE or both.

• Dante Ch: 2x16
