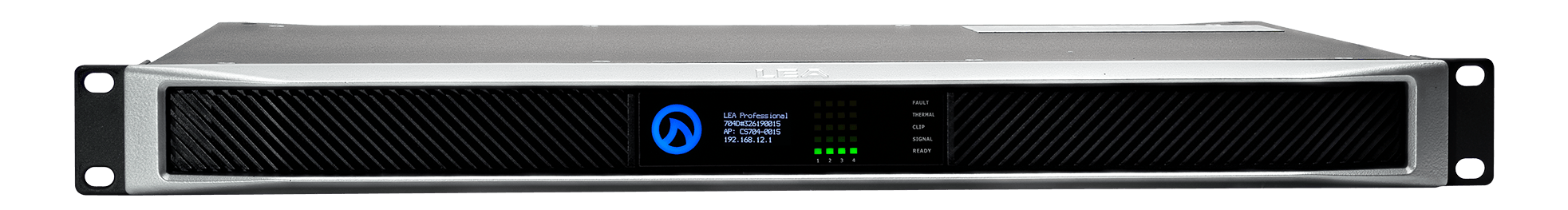

CS704D-ADSP

Amplifiers

More details

Similar Products

CS702D
  • LEA Professional

CS702D

The CONNECTSERIES 702D is a 2-channel amplifier with 700 watts per channel. As part of the Dante CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, perfectly suited for small to medium-scale installations. The 702D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable. Then there’s the Cloud…DANTE CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.  Register for your free LEA Cloud account at leaprofessional.cloud The DANTE CONNECTSERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.
    Amplifiers
See the product
MFA208
  • AUDAC

AUDAC – MFA208

This revolutionary amplifier is designed as a two-channel amplifier using class D amplifier technology. It can be used for powering low impedance stereo systems with a maximum power of 2 x 40 Watt, while bridging to a constant voltage (100V and 70V) is possible with a maximum output power of 80 Watt. A switch-mode power supply allows a wide variation of mains voltages for global compatibility.

The integrated SourceCon™ module* slot allows the implementation of any available compatible module, offering a true all-in-one solution. Typical applications are the implementation of an audio streaming module or internet radio module. Additionally, a stereo line input allows connection for any kind of external audio sources.

A balanced mic/line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled and compatibility with line-level sources (e.g. voice file players) is guaranteed by wide gain adjustment (0 dB ~ +50 dB). Thanks to the 2.8” TFT display and the push rotary dial on its front, an unmatched user experience is achieved.

The MFA series are both RS232, RS485 and TCP/IP controllable allowing implementation with home & industrial automation systems and peripheral devices. Using the freely available AUDAC Touch™ 2 application, control and configuration can be done from any portable or non-portable device on any location and at any time.

Desktop installation or mounting in an equipment rack using the MBS1xx series mounting adapters is possible. The half 19” rackspace enclosure allows single installation in a 10.5” equipment rack, or side-by-side (two devices) in a 19” equipment rack.

    Amplifiers
See the product
NAM-603_600px
  • DELEC

DELEC – unito NAM 603

The unito NAM 602/603 is the first product from a new DELEC range – a speaker amplifier for IP networks that converts traditional analog and digital audio to IP and vice versa. This way, it combines audio, which still relies mostly on analog technologies, with the emerging innovative world of IP. The unito NAM 602/603 is the first product from a new DELEC range – a speaker amplifier for IP networks that converts traditional analog and digital audio to IP and vice versa. This way, it combines audio, which still relies mostly on analog technologies, with the emerging innovative world of IP. The NAM 602/603 transfers the audio from the Dante audio network right to the speakers and, therefore, is the ideal monitoring tool for a multitude of applications. Designed for either indoor or outdoor use, the NAM 602/603 carries an IP66 rating that ensures solid performance under the most challenging conditions. This unit incorporates dual 1GB Ethernet ports (2 x RJ45), four outputs that deliver 12W RMS at 4, 8 or 16 Ohms or, alternatively, two outputs delivering 24W RMS at 8 or 16 Ohms, AES/EBU input and output capability, plus a microphone input. Like the NAM 203, this higher capacity model also provides Delay and Gain, as well as FIR and IIF filters on each channel. The unit is powered by an external power supply. Also noteworthy, the NAM 603 offers redundant audio sources for power amp inputs when used in combination with other DELEC Dante enabled products.
  • Direct monitoring in Dante audio networks
  • Integrated power amplification
  • Simple configuration via web interface
    Amplifiers
See the product
