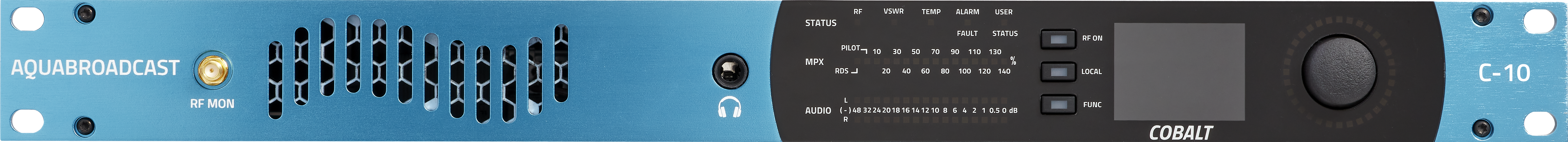

The COBALT C-10 is a robust 10W FM Broadcast Transmitter, boasting FCC part 73 LPFM and IC certifications. Its exceptional audio quality and clear sound from the Direct to Channel Digital technology with minimal manipulation, maintains audio integrity.
RAM Audio® introduces this new generation of professional touring amplifiers based on the field proven QuantaPulse™ Technology: V Series / W Series (with only aesthetic differences).
These new devices feature two or four channel models, ready for rough handling in the touring world. For this purpose, V/W Series amps implement oversized high efficiency regulated power supply with PFC front end to deliver their full performances independently of mains status.
This together with oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution, full digital control from LCD display on the front panel… Resulting in: just power, reliability and robustness for your touring gigs!
V6000 Specifications:
| Power table | V6000 |
| 2 ohm | 2x3025W |
| 4 ohm | 2x1600W |
| 8 ohm | 2x820W |
| Bridge 4 ohm | 1x6050W |
| Bridge 8 ohm | 1x3200W |
| V6000 | |
| Frequency Response (power bandwidth ±0.25dB) | 20Hz – 20kHz |
| Phase Response (@1W 20Hz-20kHz) | ±15 deg |
| Total Harmonic Distortion (20Hz-20kHz) | <0.05% |
| Intermodulation Distortion (SMPTE) | <0.05% |
| Damping Factor (@8ohm) | >500 |
| Crosstalk (20Hz-1kHz) | >80dB |
| Voltage Gain | 26 dB to 38 dB (0.5 dB steps) |
| Sensitivity (rated power 26/32/38dB Gain) | 4.0/2.0/1.1V |
| Signal to noise Ratio (20Hz-20kHz) | 113dB |
| Required AC Mains | Operating Voltage (50Hz-60Hz) |
| Power On Idling (@230V) | 0.5A |
| 1/8 rated power (@230V min. Z) | 7A |
| Dimensions (WxHxD) | 483×88.9x460mm – 19×3.5×18.1inches |
| Weight (Net) | 10kg – 22.1lb |
The Cloud CV Series includes 3 models - CV2500, CV4250, and CV8125
Cloud CV digital amplifiers are versatile multi-channel power amplifiers of advanced design, able to drive 100 V/70 V line loudspeaker systems directly. They are ideal for sound reinforcement applications in the retail, leisure, hospitality, commercial or industrial sectors. Large installations using multiple amplifiers will benefit from the amplifiers’ network connectivity: each amplifier may be configured individually, controlled and monitored remotely over a standard Ethernet network.
All models include on-board, user-configurable DSP permitting great flexibility of internal architecture, and a wide variety of remote control options including Ethernet, RS-232 and DC: the latter providing compatibility with standard Cloud remote control plates. An important aspect of the design is that “out of the box”, the amplifiers emulate earlier Cloud amplifier designs. It is not necessary to either connect a computer nor remove the lid to access internal jumpers to set primary configuration parameters such as input routing, which may be done using rear panel DIP switches. Where more advanced configuration options are needed, they can be easily accessed through the internal web server and an Ethernet connection to an external device.
