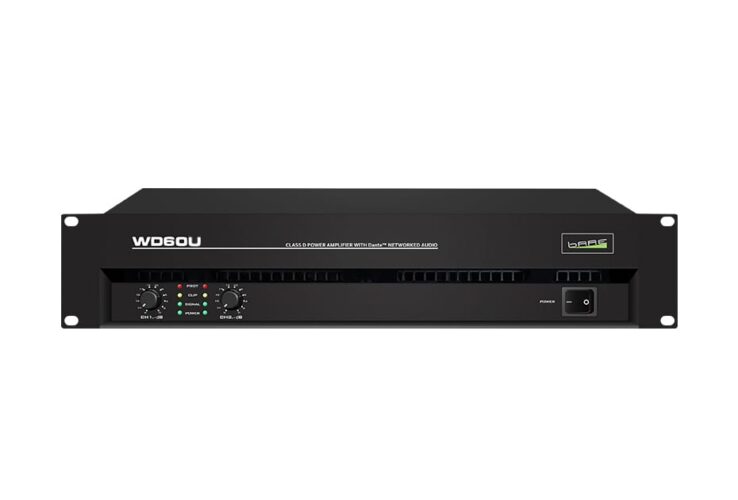

BARE – WD60U
The network audio power amplifier integrates a four-way digital power amplifier module. Signal processing and power amplification are solved on one motherboard, which shortens the signal path and simplifies engineering wiring.
- Built-in 4 x 600W / 8 Ω ( 800W / 4 Ω) digital power amplifier
- Professional PC- side control software is easy to use, Ethernet TCP / IP online management, can manage every device in the system at the same time
- ★ DANTE network audio technology, low latency without interference, without loss of smooth and full sound quality
- Network dual backup, multiple devices can be connected hand in hand.
- ★ Automatic or manual network IP configuration, can be named independently for easy identification in the network
- Automatic protection memory function in case of power failure
| Output Power | Output power 8 ohms: 4x600W Output power 4 ohms: 4x800W Bridge mode 8 ohms: 2x 1600W |
| Power amplifier | Maximum efficiency of 90%, two-channel digital power amplifier |
| Frequency Range | 20Hz-20kHz |
| Signal to noise ratio | 100dB / 95dB |
| Sensitivity | 26dB / 1.4V / 32dB |
| Crosstalk | ＞ 90dB |
| Damping coefficient | ＞ 500 |
| Voltage gain | 40dB |
| Total harmonic distortion | ＜ 0.1% |
| Voltage conversion frequency | ＞ 70 |
| Conversion time | <1.5 |
| Features | Input: 2 DANTE signal inputs |
| Protect power | Single channel: short circuit, DC output, low impedance; equipment: ultra low / high voltage, temperature, overload |
| Operation mode | Stereo, mono, bridged |
| interface | Input: 2 x RJ45 Output: 4 x XLR (up to) |
| Unit delay | <1.5ms |
| sampling | 48k |
| Dimensions (WxHxD) mm | 485x90x320mm |
| Weight (kg) | 8kg |
