BARE - AF-D Series

BARE – AF-D Series

Product Information

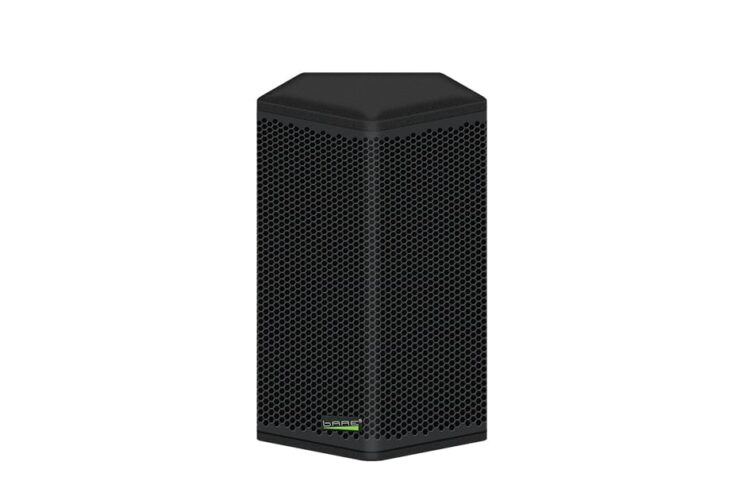

The BARE AF-D Series contains five models; AF-6D, AF-8D, AF-10D, AF-12D, AF-15D

AF-D series network active speaker is an active full-range speaker that integrates network transmission, pure digital power amplifier and RS-232 control and monitoring. With high efficiency and high sound energy output, excellent sound quality, perfect protection function and good electromagnetic compatibility characteristics. It has a backup analog input interface and a Dante network interface, and the transmission is dual-backup. A built-in Dante board can be connected through a network cable to implement network audio signal transmission. The router automatically assigns an IP address through the DHCP of the router, and performs signal transmission with the audio matrix with Dante function in the local area network, and can easily set up a fully digital network sound reinforcement system.

model	AF-6D	AF-8D	AF-10D	AF-12D	AF-15D
Frequency Range	70-19KHz	65-18KHz	60-18KHz	55-20KHz	45-20KHz
Coverage angle	80×60	80×80	80×70	80×50	80×50
power	100W	150W	200W	300W	400W
Drive unit	Low frequency 6 inch, high frequency 1 inch	8 inch low frequency , 1.5 inch high frequency	Low frequency 10 inch, high frequency 1.5 inch	Low frequency 12 inch, high frequency 1.75 inch	Low frequency 15 inches, high frequency 1.75 inches
Active power amplifier module	200W 8Ω	200W 8Ω	300W 8Ω	8 00W 8Ω	8 00W 8Ω
Sensitivity	88dB	90dB	92dB	98dB	98dB
input interface	Canon * 1, RJ45 * 2	Canon * 1, RJ45 * 2	Canon * 1, RJ45 * 2	Canon * 1, RJ45 * 2	Canon * 1, RJ45 * 2
size	188x220x306mm	280 x 295 x 426mm	326 x 350 x 486mm	376 x 421 x 606mm	445x490x666mm
net weight	7kg	10kg	13kg	25kg	36kg

Martin Audio – CSX-LIVE 118

CSX-LIVE 118 is a compact, high-performance subwoofer that extends the low frequency operating range of a CDD-LIVE full-range system to 35Hz — providing exceptional low frequency impact and increasing headroom. It incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. CSX-LIVE 118 is a compact, high-performance subwoofer that extends the low frequency operating range of a CDD-LIVE full-range system to 35Hz — providing exceptional low frequency impact and increasing headroom. It features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure. The design of the 18” driver maximises output while minimising power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a maximum SPL capability of 135dB peak at 1 metre, the CSX-LIVE 118 is the ideal subwoofer for theatre and portable live sound applications, as well as premium installations that require the maximum output from a compact enclosure. A self-powered system, the CSX-LIVE 118 incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks.

Speakers

See the product

DMIX

DMIX – CA-306DA

Technical parameters：

Speaker model: CA-306DA

Speaker type: Active Speaker

Unit composition: 6×3" Full frequency unit

Frequency response: 130Hz-19kHz （-10dB)

Sensitivity: 95dB

Rated impedance: 12Ω

Sound pressure level: 122dB（peak）

Rated power: 120W

Horizontal coverage Angle: 100°x20°-30°，Electronic control

Speakers

See the product

Cadac

Cadac – CA124

The CA124 beam forming array module combines a comprehensive package in all relevant disciplines without compromise. With the CA124, even at most demanding and complex sound installations can be realized. The combination of mapping optimization and direct array definition is the most comprehensive and powerful loudspeaker management system on the market. The CA124 is a selfpowered 2-way high-end beam forming array loudspeaker, which features 12 x 4" wideband woofers and 36 x 1" dome tweeters. Due to the fully integrated connection hardware, the column can be stacked to realize larger systems with up to 14 meters of acoustic length. With the small source distances, the beamforming capabilities of the column are excellent even at very high frequencies. Internally, one CA124 has 48 amplifier and 48 DSP channels. The CADAC DSP-core module platform is integrated with the amplifier section into the loudspeaker. Cabinets are electrically connected by the CADAC C-Link audio and command interface. The CCP control and prediction software can connect to the array via LAN for command and control, Auto-EQ and to calculate sound prediction on listener areas. With the CMAP (mapping optimization mode), the vertical dispersion can be adjusted and optimized according to the listener area.

Speakers

See the product
