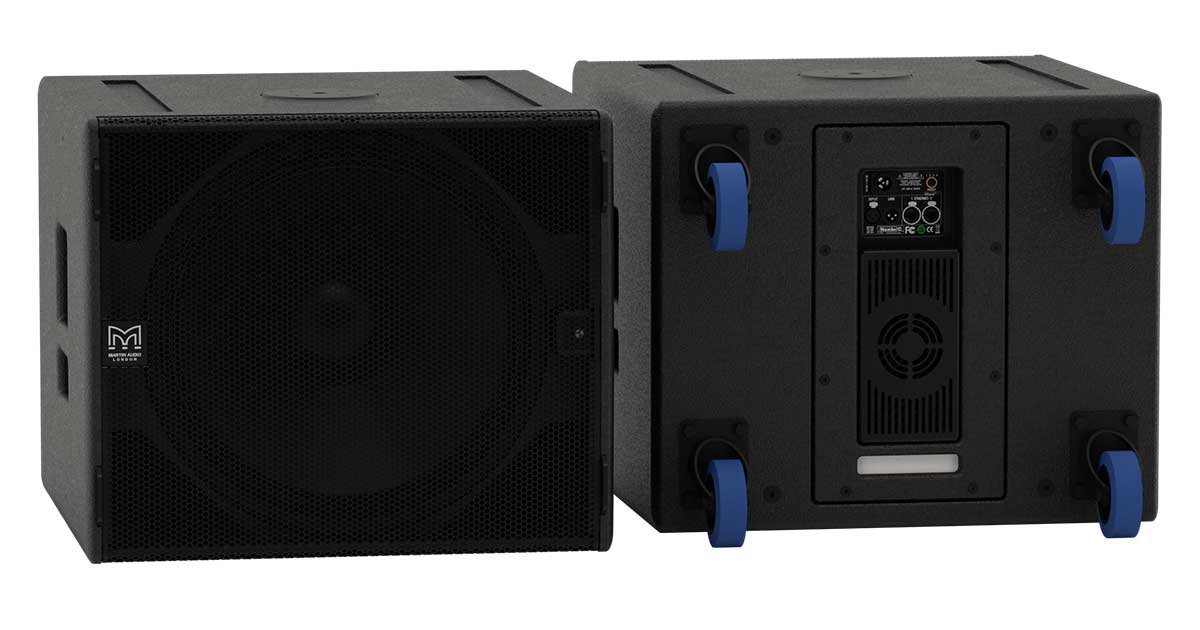

Martin Audio – CSX-LIVE 118

Speakers

More details

Similar Products

worxaudio-trueline-x2_600px|worxaudio-trueline-x2_600px
  • WorxAudio

WorxAudio – TrueLine X2

The X2 is a two-way, high efficiency, line array loudspeaker. It is designed as an all-in-one ultra compact high performance system for the reproduction of speech and music program material. The X2 is a two-way, high efficiency, line array loudspeaker. It is designed as an all-in-one ultra compact high performance system for the reproduction of speech and music program material. The X2 incorporates two medium format 1” exit compression drivers coupled to a stabilized proprietary FlatWave Former that delivers clear but penetrating high frequencies over a predictable and controlled coverage area. The X2 has a Horizontal pattern of 160 degrees and a Vertical of 30 degrees. Quad 8” cone transducers coupled to the (A.I.M.) Acoustic Integrating Module minimizes comb filtering throughout the entire operating range. A sturdy multi-ply plywood enclosure, with a multi layered catalyzed Polyurea finish, will withstand the most demanding portable applications. A perforated, powder coated steel grill with a high transmission ratio offers excellent protective properties. The custom designed flyware enables the user to easily array the system to the precise desired coverage area. The X2 is available in black or white exterior. The X2 excels in a myriad of diverse applications requiring a compact line array enclosure. Superior workmanship and transparent sonic quality make the X2 an exceptional tool for any speaker system.
    Speakers
See the product
K-array_-_KMT18_Mark_I
  • K-array

K-array – KMT18 Mark I

The K-array KMT18 I is a powered 18” subwoofers, with a programmable on-board DSP and multiple analog and digital inputs and outputs for creating a wide array of speaker configurations. The K-array KMT18 I is a powered 18” subwoofers, with a programmable on-board DSP and multiple analog and digital inputs and outputs for creating a wide array of speaker configurations. The amplifier mounted on board is class D, delivering 2 x 1000 W at 8 Ω. The KMT18 I features an integrated touch screen, providing intuitive control over the main DSP functions: input/output levels, signal routing, offset delays for subwoofer and speakon output (up to 12 ms) and overall system delay (up to 330 ms). All DSP functions, including EQ, can also be remote controlled via software over USB or RS485 (3-pin XLR). The KMT series provides two balanced analog line level inputs and a two-channel AES/EBU digital input. An integrated class D amplifier delivers 2 x 1000 W at 8 Ω, with a max THD of 1% (EIAJ test @ 1kHz). The KMT18 I features multiple analog and digital outputs, including a Speakon output to connect a wide array of passive speakers including mid-high models (KK52, KK102) or additional passive subwoofers (KMT18P). To optimize performance, the on-board DSP includes up to 40 programmable presets. The unique four-corner port configuration provides symmetrical back loading to the speakers, for extended bass response with very low distortion. The port configuration also provides incredible structural strength to the cabinet, despite its light weight. Pocket handles and an M20 thread mount position for attaching mid-high speakers makes the subwoofer convenient to use and ideal for medium throw applications in theaters, concert halls, and Audio/Video installation
    Speakers
See the product
Crest_Audio_Versarray_Pro_112_left_03617310|peavey-versarray-112_0
  • Crest Audio

Crest Audio – Versarray VR112 PRO

The Versarray™ Pro 112 Powered Ribbon Tweeter Line Source Array speaker system consists of a 12″ Neo Black Widow® woofer combined with a Neodymium based Peavey RD™ 2.6 ribbon tweeter in a cabinet with a simple, quick, yet flexible rigging system.  Designed to provide modular coverage of small to medium venues, and intended for use with the companion Versarray™ Pro Sub models, the Versarray™ Pro 112 offers excellent versatility with a very high performance capability. The two-way system consists of the following driver components: a 12″ Black Widow ® Neo series woofer with Neodymium magnet structure. Capable of over 500W of continuous power handling (AES Std 2-1984), the woofer can handle a lot of sheer power. The high frequencies are handled by two Peavey RD™ 2.6 ribbon tweeters utilizing a composite sandwich ribbon, a Neodymium magnet system, and a low distortion waveguide.

Power for bi-amping is supplied by some very efficient power amplifier systems, controlled by a sophisticated and refined DSP operations system with Dante connection capability.  Total system power is 3400W total peak power, with 2000W peak power for the woofer, and 1400W total peak power for the two ribbon tweeters. This sheer power is controlled precisely and processed by a high performance DSP system, which provides all the crossover and EQ functions, as well as providing all limiting, compression and driver protection duties with unfailing attention to every detail of the music.

A unique set of control buttons on the rear panel allow analog signal input and use without the need for a network controller, by setting the system for typical use situations via push-button.  This feature allows the use of the system without the requirement for a full-blown digital networking controller or system.

The adjustable rigging system provides for a classic straight line-array configuration, or a number of different angling options, providing easy aiming of the system. Angles between the array modules is adjustable from 0 degrees (straight), to 7.5 degrees in 2.5 degree increments. Total angle possible between two cabinets is 15 degrees.

Quick-lock pins are supplied with the rigging hardware to couple the Versarray™ Pro 112 modules together and lock the angles between them into place, as well as for the rigging halo and fly bar configurations of a line array. The flexibility of the Versarray system allows the use of anywhere from 1 to 10 Versarray™ Pro 112 modules in conjunction with anything from one Versarray 118 Pro Sub to as many Versarray 218 or 215 Pro Subs as you can! An optional special groundstack bracket set mounts to the Versarray 218 Pro Sub, and allows up to three of the Versarray™ Pro 112’s to be mounted on top of the Versarray 218 Pro Sub, and angled upward, for use on stage in a stadium seating situation.

    Speakers
See the product
