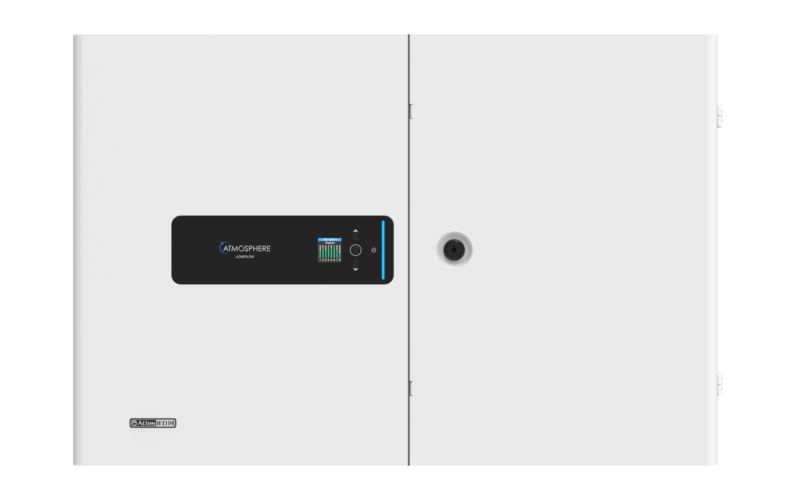

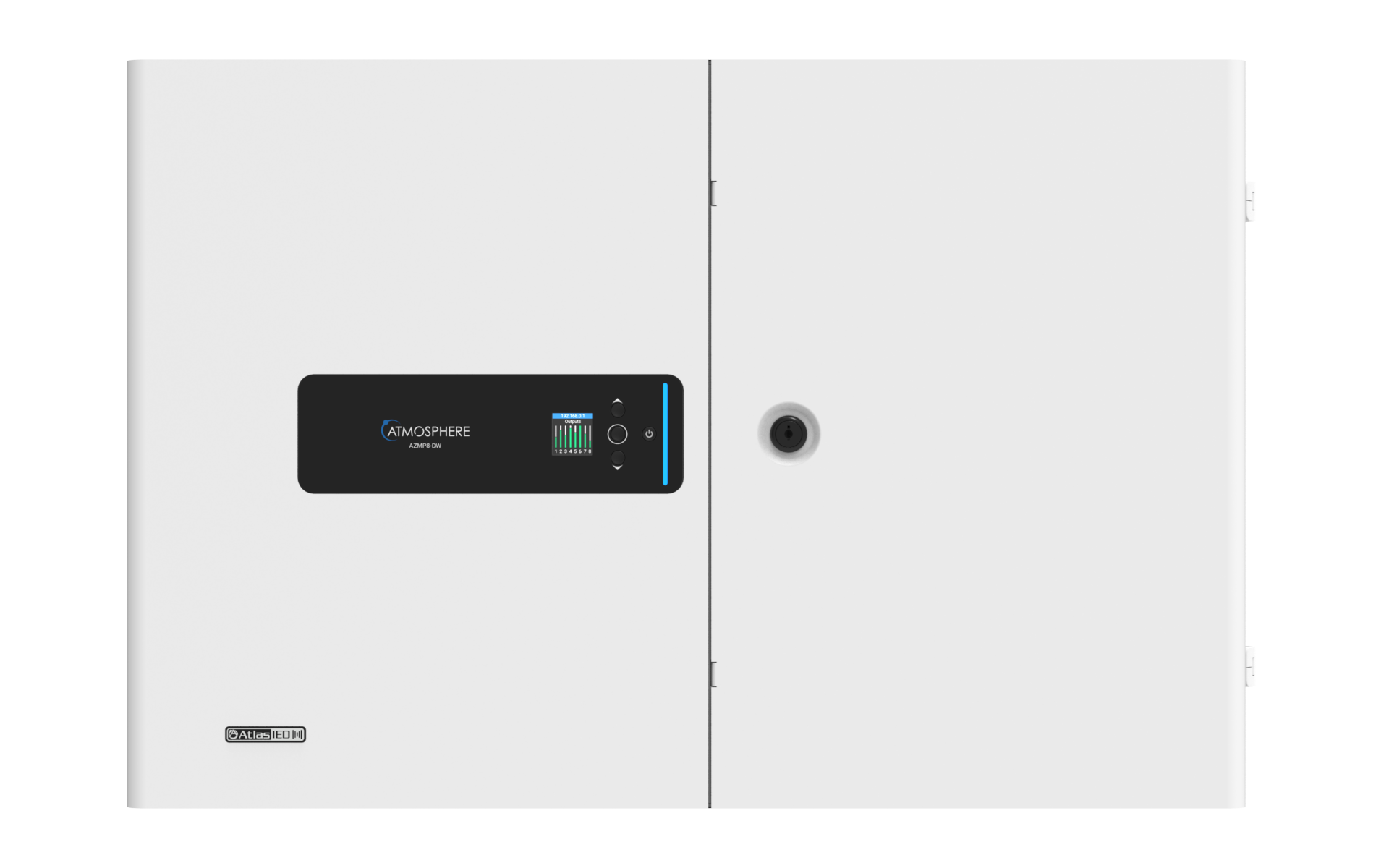

AZMP8-DW

I/O Interfaces

Learn more

Similar Products

rdl-dd-bn22_1200px_0|rdl-dd-bn22_1200px_0
  • RDL

RDL – DD-BN22

The DD-BN22 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs and two XLR mic or line outputs on the front panels. The DD-BN22 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs and two XLR mic or line outputs on the front panels. Special software is not required to configure the DD-BN22. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. Each XLR output provides a switch to set the output to balanced professional line level or mic level. The DD-BN22 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN22 is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. Two Dante audio channels are converted to balanced line level on front-panel XLR jacks. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to set the output to line level or attenuate the output by 50 dB to mic level. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN22 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN22’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
Dante官网logo
  • BARE

BARE – DF-15

A network active speaker is an active full-range speaker that integrates network transmission, pure digital power amplifier and RS-232 control and monitoring. It has high efficiency and high sound energy output, excellent sound quality, perfect protection function and good electromagnetic compatibility characteristics. It has a backup analog input interface and a Dante network interface, which can transmit dual backups. It can be connected to the built-in Dante board through a network cable to realize network audio signal transmission. The IP address is automatically assigned through the router DHCP, and the signal is transmitted with the audio matrix with dante function in the local area network, and a set of all-digital network sound reinforcement system can be easily formed. It is suitable for classrooms in primary and middle schools, small and medium-sized meeting rooms, corridor broadcasting and other places.
    I/O Interfaces
See the product
ru-mlb4_400px|ru-mlb4_400px
  • RDL

RDL – RU-MLB4

The RU-MLB4 is a high quality mic/line-level bi-directional Dante network interface. The RU-MLB4 converts four mic or line-level audio sources to Dante network channels, and four Dante network audio signals to balanced line level. LED audio signal indicators are provided. Model RU-MLB4P operates from PoE. The RU-MLB4 is a high quality mic/line-level bi-directional Dante network interface. The RU-MLB4 converts four mic or line-level audio sources to Dante network channels, and four Dante network audio signals to balanced line level.  Each input is switch-selectable for mic or line level. In the mic position, the balanced input provides P48 phantom to an associated microphone jack. Connection of a dynamic microphone automatically sets the preamplifier gain to 60 dB. Connection of a condenser microphone automatically sets the gain to 40 dB. The automatic gain setting is always active so that no user adjustment is required when changing microphones. The RU-MLB4 is also available in a PoE version (RU-MLB4P). If PoE power and an external 24 Vdc supply are both feeding an RU-MLB4P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
    I/O Interfaces
See the product
