Product Information

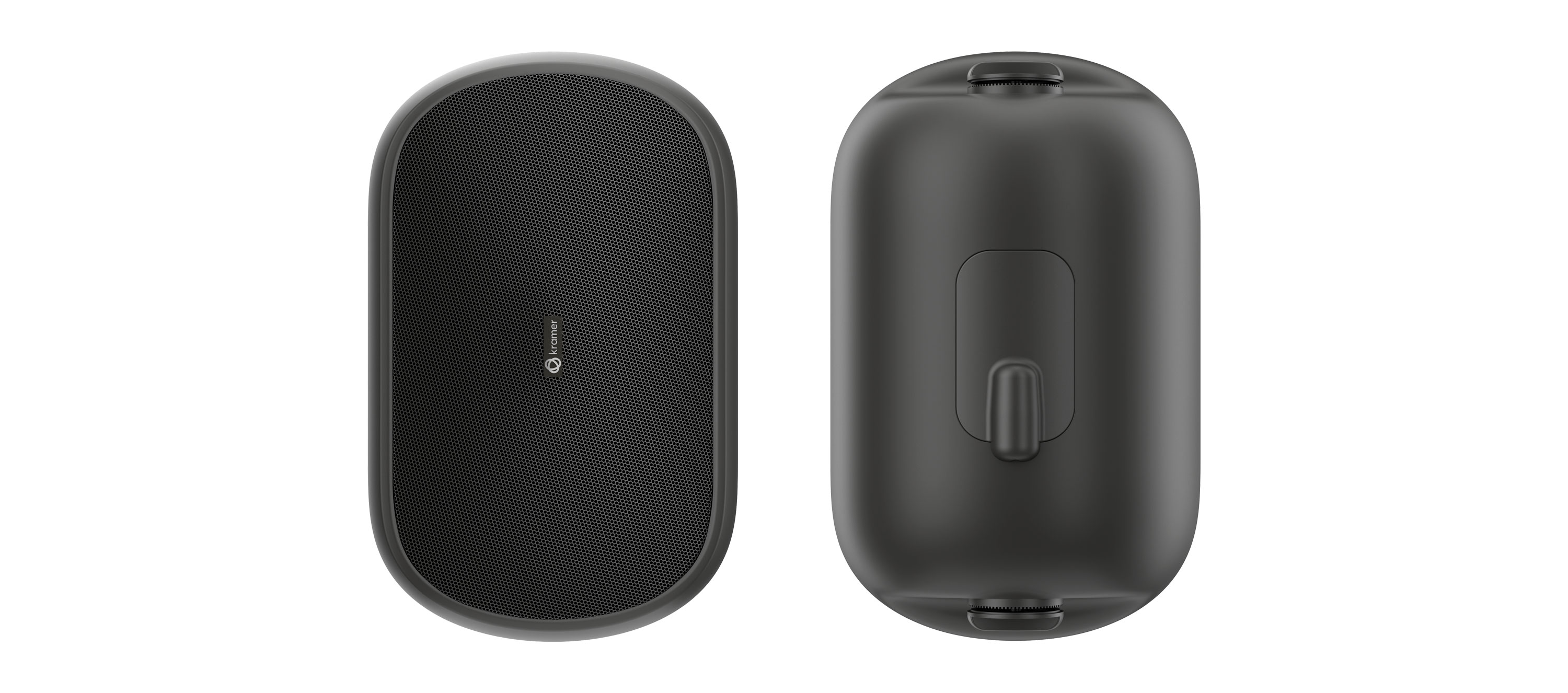

The AW−8D – All−weather, IP66/UL certified, 8” two−way wall mounted PoE powered Dante speaker
Kramer’s AW Series are engineered to deliver exceptional sound performance in both indoor and outdoor environments featuring both passive and PoE powered Dante speakers. The AW−8D is a high performance 8” all−weather PoE powered Dante speaker. This UL compliant, IP66−rated speaker is designed to withstand the elements while providing clear, high−quality audio, making it the perfect solution for mixed installations, in which some of the speakers are outdoor and others are indoor. The speaker delivers premium audio performance with advanced flexibility and control, featuring a built−in mixer, DSP, and amplifier, it allows the mixing of two channels and fine−tuning of the sound with parametric EQ, LPF & HPF, input compressor, output limiter, power managements and activate a “find me” tone, all configurable using Kramer’s speaker utility software. The speaker is available in both black & white colors.
Key Features —
• IP66 rated for outdoor installations
• UL1480A certified for indoor installations, made of flame retardant ABS765A
• Exceptional sound performance
• Supports PoE++/PoE+/PoE (auto–negotiate)
• Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
• Power Handling:<font–size=2% style=”box-sizing: border-box; transition: 0.5s;”>
◦ PoE++: 10W RMS / 30W continuous program
◦ PoE+: 10W RMS / 20W continuous program
◦ PoE: 10W RMS / 10W continuous program
◦ Auto protect feature automatically reduces output power if the built–in amplifier gets critically hot.
• Sound Pressure Level (SPL):<font–size=2% style=”box-sizing: border-box; transition: 0.5s;”>
◦ Sensitivity (1W@1m, free field): 91dB SPL
◦ Maximum SPL: Continuous: 101dB SPL / Peak: 106dB SPL
• Regulatory compliance:<font–size=2% style=”box-sizing: border-box; transition: 0.5s;”>
◦ UL 1480A
◦ IEC62368(CB) / CE LVD, UL62368
◦ FCC+IC, BIS, RCM
◦ RoHS, REACH, WEEE
• TAA compliant option
• Industrial design: black & white bezel–less magnetic grills included in the box, front–access wiring
• Eco–friendly mono–material packaging</font–size=2%></font–size=2%></font–size=2%>
The AW–8D all–weather PoE powered Speaker is a high–end solution for both outdoor and indoor installations delivering high–performance high–quality sound in professional Dante networked audio installations.
Specifications
- Dante Ch: 2x0
- Bit Depth: 24-bit
- Sample Rate: 48kHz
