AVE – Ascolto FF0870

FF0870 performs 8-channel DSP beam filtering to steer the vertical radiation pattern, making column high directive and featuring main propagation lobe less dependent on the frequency.

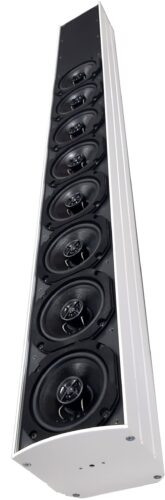

FF0870 is equipped with 8 high quality, coaxial loudspeakers, each one mounting 4” neodymium woofer + 1’’ dome tweeter, capable to transmit perfect audio.

FF0870 uses 8 x 70 Wrms class-D audio amplifiers with excellent THD+N and high efficiency (90%) and completely protected against thermal over-load.

FF0870 mounts high-reliable, switching power supply (430 W peak) with universal input (90 – 264 VAC).

FF0870 has analog line input and built-in Dante input both.

FF0870 setup comes easy throughout the AVE Line Array User Control PC software, via RS485 connection.

AVE Line Array User Control includes:
• Beam tilting/broadening control;
• Anti-Reverberation System ARS.
• Delay control;
• 8-biquads user equalizer with high/low shelving and parametric filters;

FF0870 cabinet is aluminum extrusion and it is designed and manufactured in Germany.

More details
