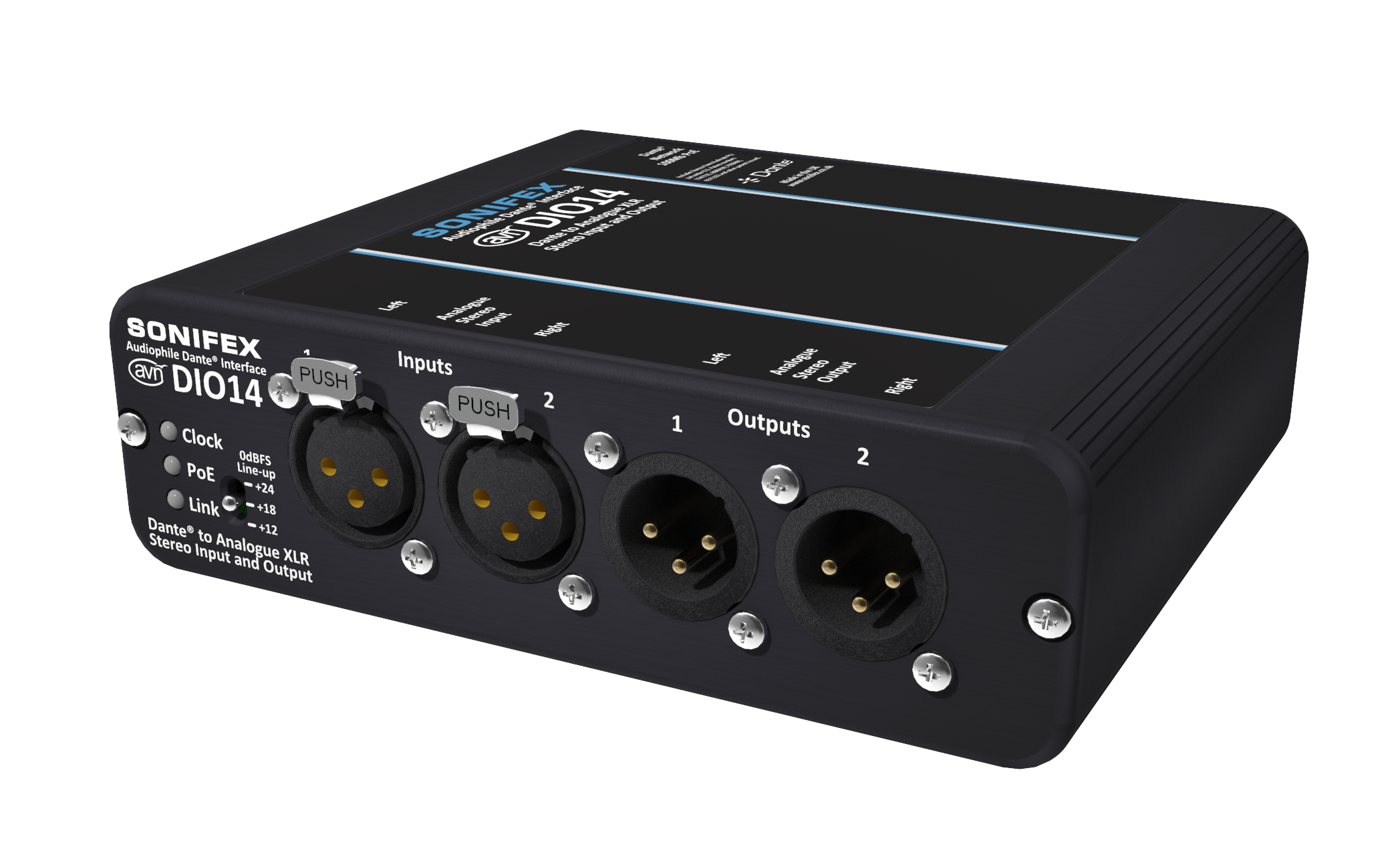

The AVN-DIO14 is a Dante to XLR analogue stereo input & output converter in the Sonifex DIO range of Dante input/output devices. It features two balanced analogue XLR outputs, two balanced analogue XLR inputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.
The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format.
The 16.16MD provides 16x16 balanced analog audio inputs and outputs. Each input accommodates microphone through line level signals with a gain range of -60 to +24dBu. +48V phantom power is individually switchable on each input. Output levels are configurable up to +24dBu. With DB-25/AES59 terminations.
RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.
The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.
Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.
All units can also be operated in Livewire+ AES67 interoperability mode.
E-Vocal MYRIAD are multiple channel analog input and analog output Dante converters. There are two models that make up the E-Vocal MYRIAD product:
These models are 1U rack mount analogue converters designed to transfer 16 or 32 analogue audio channels over a Dante network in both directions. Space-saving 25-pin D-sub connectors are provided for use with optional breakout boxes to input and output balanced line-level analogue audio signals. Two etherCON connectors (Dante Primary/Secondary) are available for redundant operation using two separate networks. For high availability operation requirements, dual AC input and dual PoE power sources are available for redundant operation. The units feature indicators for operation status and current sample rate as well as overload LEDs for each input and signal LEDs for each input and output. Any other settings, such as sampling frequency, channel routing or latency, can be made by the free “Dante Controller” computer application. The sampling frequency, power source status, will be displayed on the 2×20 character display located on front bezel. More info: https://www.aristaproav.com/product/myriad/
