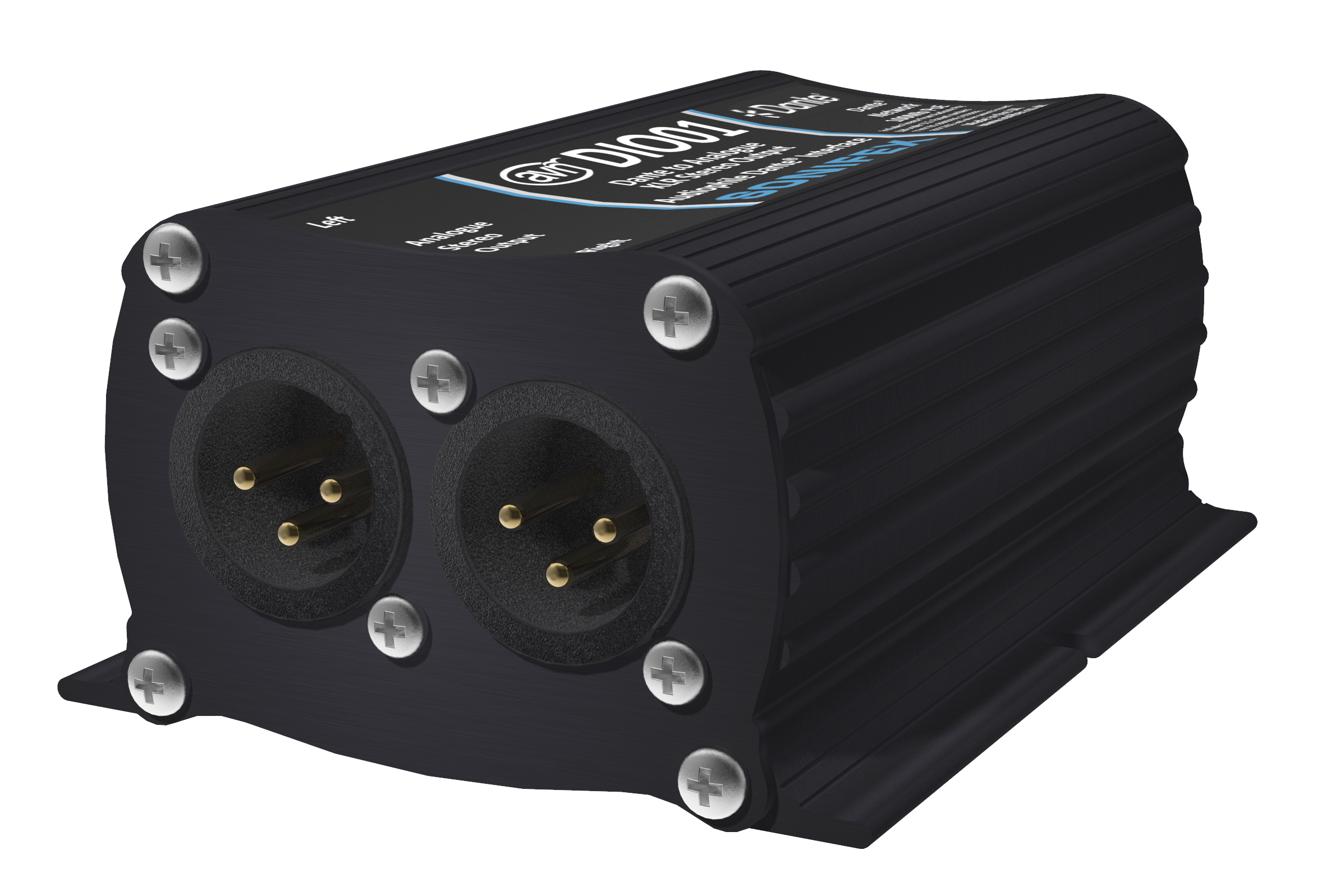

AVN-DIO01

I/O Interfaces

More details

Similar Products

audix-DN43
  • Audix

Audix – DN43

The DN43 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions - including on-off contact closure and LED status indicators - are available through a single CAT5 - CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost.

The DN43 features one microphone input specifically designed for the Audix M3 tri-element microphone and one input for Audix RJ45-equipped, single-element microphones. It has two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.

Audio Features

  • High-fidelity 24-bit, 48kHz audio
  • Balanced audio inputs with RFI filtering
  • 48V phantom power output
  • Each channel has selectable pre-amp gain, as well as low- and high-pass fi lters
  • All channels controlled independently
  • Flash memory prevents loss of settings in the event of power loss
  • Compatible with the M3 tri-element microphone (DN43 only), the flush-mount,
  • steerable M70WD ceiling microphone, and the M55WD ceiling microphone

Dante Features

  • Supports AES67 audio streams
  • Dante Domain Manager (DDM) ready
  • Dynamic or static IP address
  • Evaluated to the requirement of UL2043
  • and is suitable for use in above-ceiling
  • applications

Power Features

  • Operates on PoE from any IEEE 802.3af compliant equipment
    I/O Interfaces
See the product
digigram-AUDIOWAY-bridge-B3_1200px_0
  • Digigram

Digigram – Audioway Bridge B2

The BRIDGE B2 is an intelligent gateway between MADI digital audio and AES67/Dante™ synchronous audio-over-IP streams. Forming the backbone of your infrastructure, the BRIDGE B2 is the ideal solution to distribute and interconnect your MADI and AES67/Dante mission-critical streams in the studio. The BRIDGE B2 is an intelligent gateway between MADI digital audio and AES67/Dante™ synchronous audio-over-IP streams. Forming the backbone of your infrastructure, the BRIDGE B2 is the ideal solution to distribute and interconnect your MADI and AES67/Dante mission-critical streams in the studio.
  • Stainless steel 1U chassis power consumption <50 W
  • Front panel control interface for rapid overview of current status
  • Dual AC/DC power supply 4 configurable GPIOs Wordclock synchronisation 24-bit audio routing: 44.1 kHz to 96 kHz
  • AES67/Dante interface: 64-in/64-out EtherCON connector AoIP stream redundancy Integrated 4-port switch
  • MADI interface: 1 x optical 64-in/64-out connector 1 x BNC 64-in/64-out connector
    I/O Interfaces
See the product
  • Turtle AV

Mineola 4×4

The Mineola 4x4 connects the digital Dante and analog XLR worlds with two inputs and two outputs, perfect for compact setups. PoE-powered and equipped with 48V phantom power on both XLR inputs, it’s ideal for easy microphone connections. All connectors are locking, with Neutrik etherCON on the dual network ports for reliable redundancy. Fully compatible with the entire Dante software suite, the Mineola 4x4 integrates seamlessly into live event production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS, Telestream Wirecast. Designed for versatility and high performance, it’s the perfect solution for professional audio environments.
    I/O Interfaces
See the product
