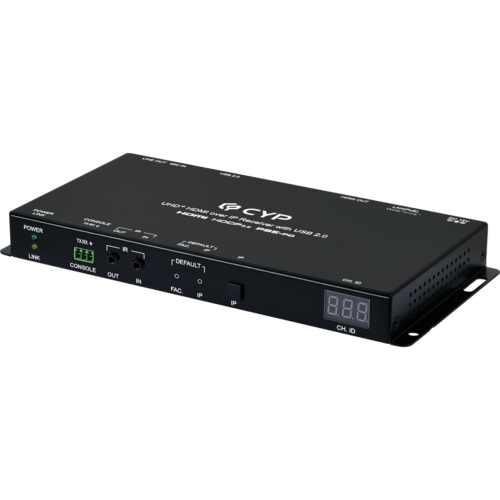

4K@60 HDMI over IP Receiver with USB 2.0
- 4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode.
- IP interface: RJ45
- Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows
- Supports PoE-PD (IEEE 802.3af).
- Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control.
- Controlled via hotkey, WebGUI, IP Master Controller, and Telnet
- Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information)
- 7 hotkeys dedicated to routing for transmitters and receivers, 4 hotkeys provide single functions, and 3 hotkeys for multiple functions that activates control system
- Supports independent breakaway A/V and control matrix routing
- Supports extension of many audio formats including 8 channel LPCM and standard Bitstream
- Note: The Line Out only supports LPCM 2.0 sources.
- The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver
- The Mic In sends audio directly to the analog Line Out on the currently routed transmitter
- Note: Only available when the transmitter also has its Line In connected.
- Optional Dante ReadyTM is compatible with existing Dante and AES67 audio networks
- Dante Ready brings Dante functionality to products already shipping and installed in sites
- Channels and features can be added as an installation grows
Specifications
- Dante AV Enabled
- AES67 Enabled
