Product Information

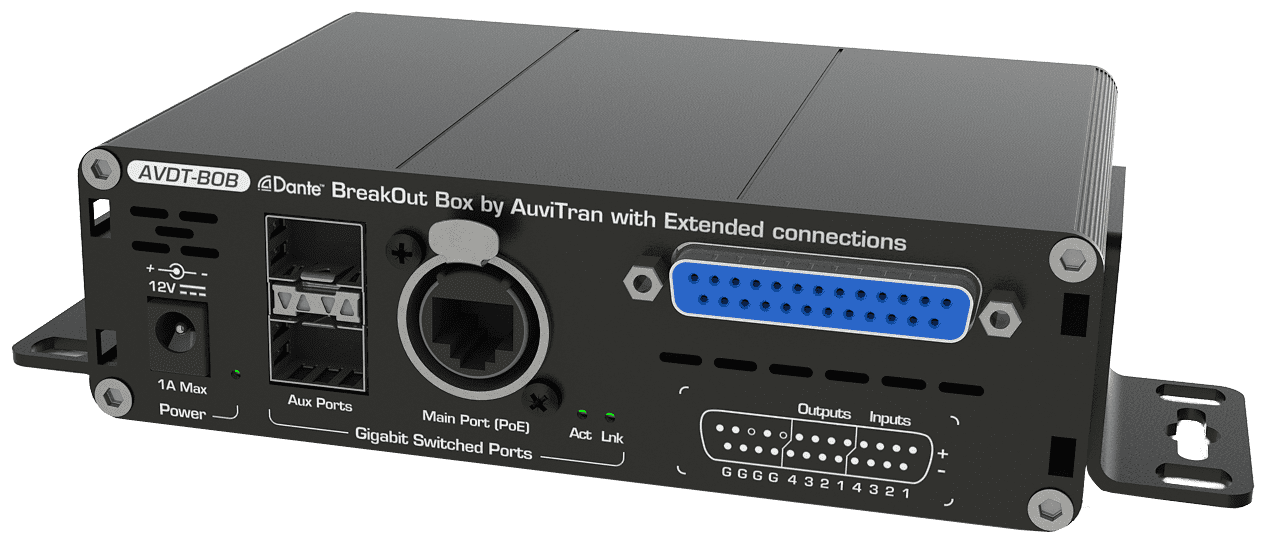

AVDT-BOB-AS8IO is a compact Dante analog break-out box with embedded Digital Signal Processing. It provides four state-of-the-art analog microphone preamplifiers inputs and four analog line outputs on DB25 connector plus optical fiber connection for Dante Network.
AVDT-BOB-AS8IO is a compact Dante analog break-out box with embedded Digital Signal Processing. It provides four state-of-the-art analog microphone preamplifiers inputs and four analog line outputs on DB25 connector plus optical fiber connection for Dante Network.
Embedded DSP allows for full mixing of the four Dante inputs/outputs and the four analog inputs/outputs plus effects like parametric equalization, dynamic compression and fine pitch digital gain adjustment.
Three Gigabit switched ports allows for daisy-chained/star connection without any bandwidth bottleneck. Neutrik port provides Power-Over-Ethernet for direct power supply (alternate 12Vdc jack input can be used as redundant PSU). SFP ports accept multi-mode or single-mode fibers, allowing to link devices on distances up to 20km.
The embedded dual core processor runs a Web 2.0 server with user-friendly interface for multiplatform remote control over IP (iOS, Android, Windows, Mac OS, Linux).
Accessories like long-ears kit allows for mounting of up to three AVDT-BOB on 1U 19” rack.
Specifications
- Dante Ch: 4x4
- Bit Depth: 24-bit
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
