Product Information

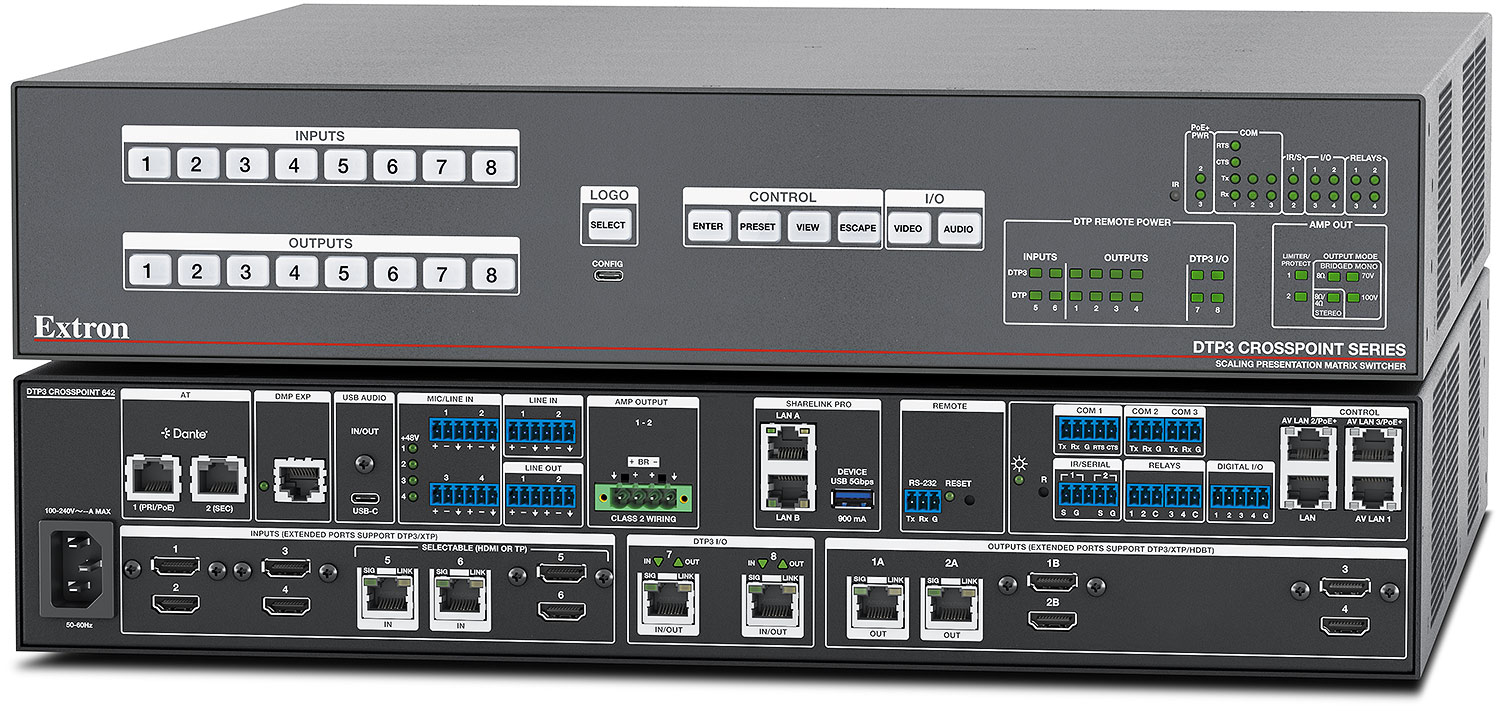

4K/60 Presentation Matrix Switcher Configurable from 6×6 to 8×4
Key Features:
- All‑in‑one configurable 4K/60 matrix switcher, scaler, audio DSP with AEC, audio power amplifier, and control processor
- Integrated DTP3 inputs and outputs support transmission of uncompressed video, audio, power, and control up to 330′ (100 m) over a shielded CAT 6A cable
- Supports video resolutions up to 4K/60 with 4:4:4 color sampling
- Dante® audio networking with Dante Domain Manager and AES67 support provides a wide range of expansion capabilities
- Available with energy efficient Class D amplifier with selectable output power modes:Two 100 watt channels into 4 or 8 ohms
- One 200 watt bridged channel into 8 ohms
- One 200 watt 70 V or 100 V channel
- Integrated ShareLink Pro Wireless Presentation System on select models
Specifications
- Dante Ch: 32x32
- Bit Depth: 24-bit
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- AES67 Enabled
