Audix - M3DK

Audix – M3DK

Product Information

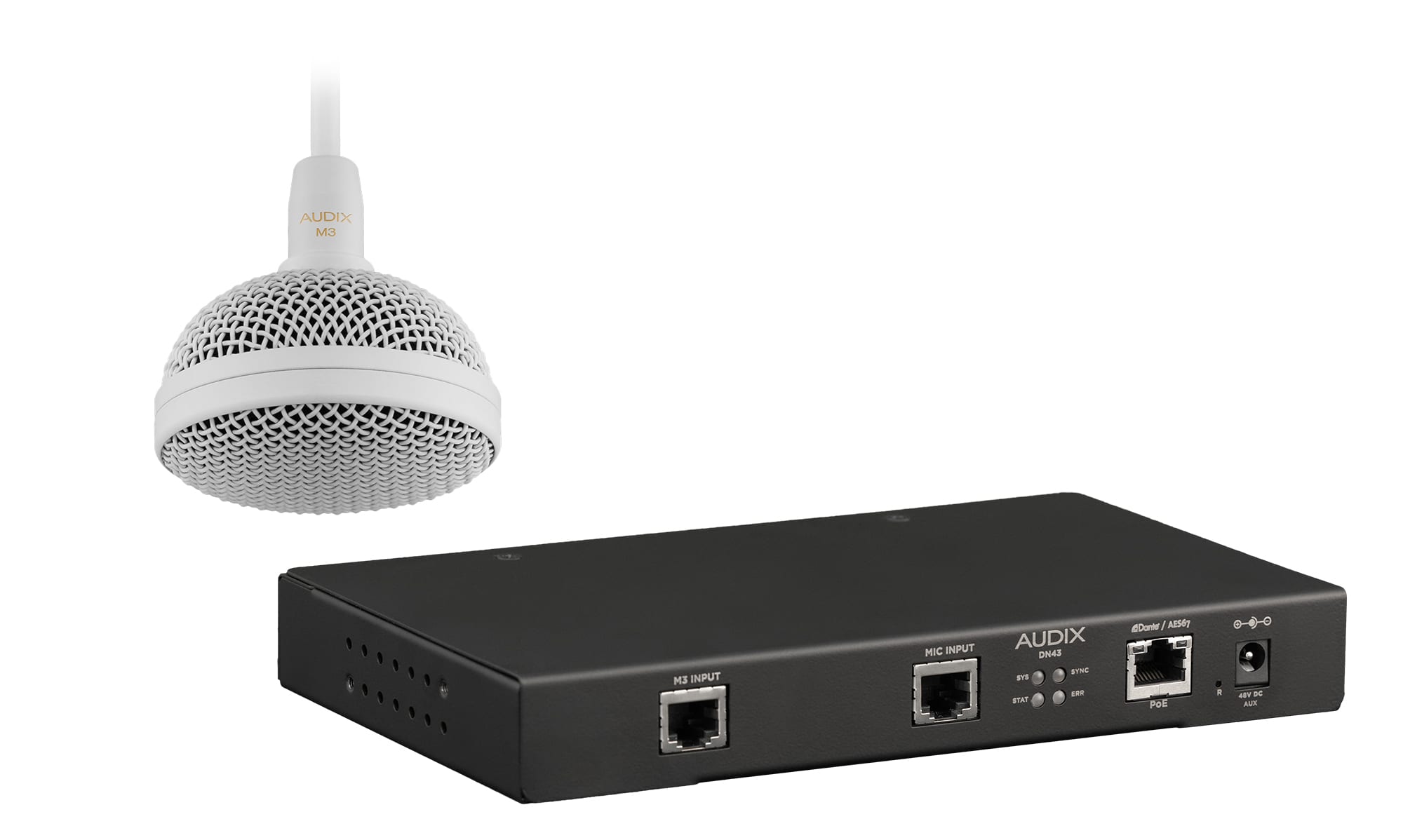

The M3DK is a convenient kit that pairs the Audix M3 hanging ceiling microphone with the Audix DN43 Dante | AES67 microphone interface, providing a simple to install, network-ready way to stream Audix audio performance through Ethernet networks.

The M3 is an innovative, tri-element hanging microphone designed for applications where aesthetics, sound quality, and ease of installation are critical. The frequency response and polar pattern of its three phase-coherent hypercardioid capsules are tailored for voice clarity and rejection of extraneous noise.

The Audix DN43 interface features one microphone port engineered exclusively for the Audix M3 tri-element microphone and one port for Audix RJ45-equipped single-element microphones. Each channel has selectable, independently controlled pre-amp gain, as well as low- and high-pass filters. It features balanced audio inputs with RFI filtering and delivers high-fidelity 24-bit, 48KHz audio.

Wohler – OPT-DANTE (12G)

Installing a Wohler unit with the Dante hardware option into an existing and functioning Dante network is virtually plug and play. The rear panel AoIP jack supports 1Gb/s and 100Mb/s Ethernet devices in Dante Audio over IP network configurations. Channel source selections are made by choosing Input Type ‘AoIP’ in the Configuration-Configure Presets page regardless of which AoIP option is installed. The iAM-series unit is set up at the Wohler factory to be used as a slave rather than a master within the Dante network. Other devices or software, such as a Dante Controller, are expected to be responsible for most device configurations and all audio routing.

Dante Interface Cards

Dante Ch: 64x0
AES67 Enabled

See the product

1073opx-digital-option-card-136-p[ekm]1000x691[ekm]

AMS Neve

AMS Neve – 1073OPX Digital Option Card

When Legend meets future. The 1073OPX Optional Digital card provides a USB and Dante AD/DA interface with eight channels of analogue to digital conversion for each 1073OPX preamp output and two channels of Digital to Analogue conversion for the digital monitor return signal path. The USB connection allows the 1073OPX to be connected to a DAW enabled PC/MAC computer to be used as a Primary/Core audio interface. In addition to the USB connection, Primary and Secondary Dante connections allow for the 1073OPX to be connected to any Dante Audio-Over-Ip network as a Dante enabled preamp. The Digital card can be retrofitted easily to any existing 1073OPX unit.

Dante Interface Cards

Dante Ch: 2x8
24-bit

See the product

Yamaha

Yamaha – Dante Accelerator PCIe Soundcard

The Dante Accelerator audio interface card (Yamaha AIC 128-D) can be installed in the computer running the Nuendo DAW to provide extra low-latency transfer of as many as 128 simultaneous channels of audio data, for a distinct performance advantage when communicating with Nuage I/O units. The Dante Accelerator audio interface card (Yamaha AIC 128-D) can be installed in the computer running the Nuendo DAW to provide extra low-latency transfer of as many as 128 simultaneous channels of audio data, for a distinct performance advantage when communicating with Nuage I/O units. The Dante Accelerator card also features a secondary port that can be used to provide redundant connections for failsafe reliability. Where to Buy: Yamaha Dante Accelerator AIC128-D PCIe-R Card

Dante Interface Cards

See the product
