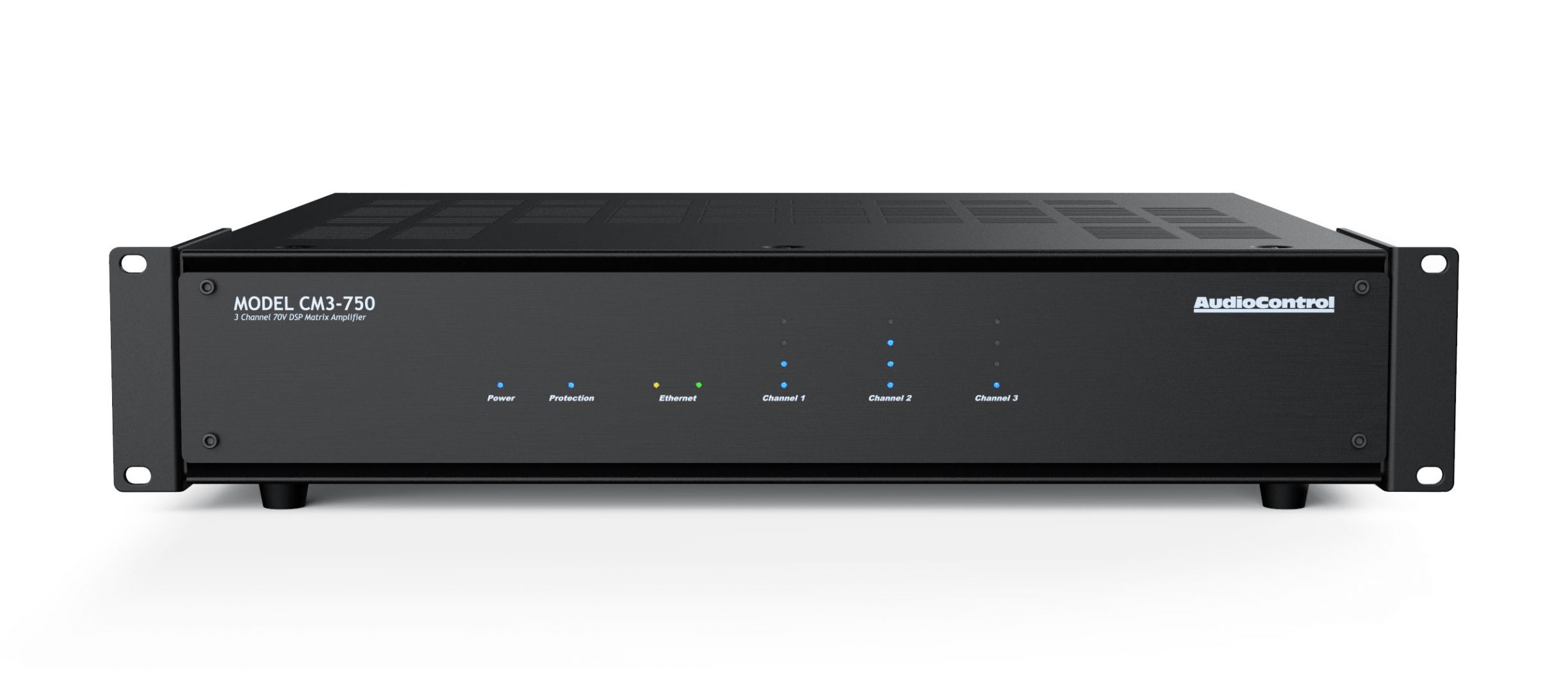

AudioControl – CM3-750

Amplifiers

More details

Similar Products

JBL_SDA_7120_Front_Web
  • JBL Synthesis

JBL Synthesis – SDA-7120

The JBL Synthesis SDA-7120 delivers seven channels of dynamic class G amplification with modern networking capability, audiophile sound and exceptional flexibility.

The JBL Synthesis SDA-7120 delivers seven channels of dynamic Class G amplification with modern network capability, audiophile sound and exceptional flexibility. With 100 watts per channel (all channels driven), 0.002% harmonic distortion balanced and single ended inputs, RS232 and IP control as well Dante audio networking, the SDA-7120 is a splendid choice for a broad range of applications.

    Amplifiers
  • Dante Ch: 16x0
  • 24-bit
See the product
vseries
  • RAM Audio

RAM Audio – V6000

RAM Audio® introduces this new generation of professional touring amplifiers based on the field proven QuantaPulse™ Technology: V Series / W Series (with only aesthetic differences).

 These new devices feature two or four channel models, ready for rough handling in the touring world. For this purpose, V/W Series amps implement oversized high efficiency regulated power supply with PFC front end to deliver their full performances independently of mains status.

This together with oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution, full digital control from LCD display on the front panel… Resulting in: just power, reliability and robustness for your touring gigs!

V6000 Specifications:

Power tableV6000
2 ohm2x3025W
4 ohm2x1600W
8 ohm2x820W
Bridge 4 ohm1x6050W
Bridge 8 ohm1x3200W
V6000
Frequency Response (power bandwidth ±0.25dB)20Hz – 20kHz
Phase Response (@1W 20Hz-20kHz)±15 deg
Total Harmonic Distortion (20Hz-20kHz)<0.05%
Intermodulation Distortion (SMPTE)<0.05%
Damping Factor (@8ohm)>500
Crosstalk (20Hz-1kHz)>80dB
Voltage Gain26 dB to 38 dB (0.5 dB steps)
Sensitivity (rated power 26/32/38dB Gain)4.0/2.0/1.1V
Signal to noise Ratio (20Hz-20kHz)113dB
Required
AC Mains		Operating Voltage (50Hz-60Hz)
Power On Idling (@230V)0.5A
1/8 rated power (@230V min. Z)7A
Dimensions (WxHxD)483×88.9x460mm – 19×3.5×18.1inches
Weight (Net)10kg – 22.1lb
    Amplifiers
  • AES67 Enabled
See the product
800x450_GTAQuattro
  • Outline

Outline – GTA Quattro

The GTA Quattro has been designed to be versatile and easy to use in any operation condition. Equally useful for most subwoofers as well as high power fullrange systems, Outline GTA Quattro suites any configuration and purpose.

Ultimately flexible and safe, Outline’s power supply is now suitable to Single Phase, Bi-Phase or Three Phase operation from 85 VAC up to 460 VAC without need of selection. True Three Phase load balancing is directly achievable by the unit without any complex load assignment in the power distribution system. Outline GTA Quattro provides four fully processable channels and selectable inputs from analog sources as well as digital AES3 and two redundant Dante™* streams. Channel mixing and routing can be easily performed thanks to the integrated revolutionary low latency DSP, providing the highest degree of freedom in sound shaping and speaker management.

Full support to 100 Mbps and Gigabit Ethernet makes it easy to integrate Outline GTA Quattro into any existing infrastructure. Completely integrated into Armonía Pro Audio Suite™, the new GTA Quattro interface is also available for smartphone and tablet, providing a new experience in power management.

    Amplifiers
See the product
