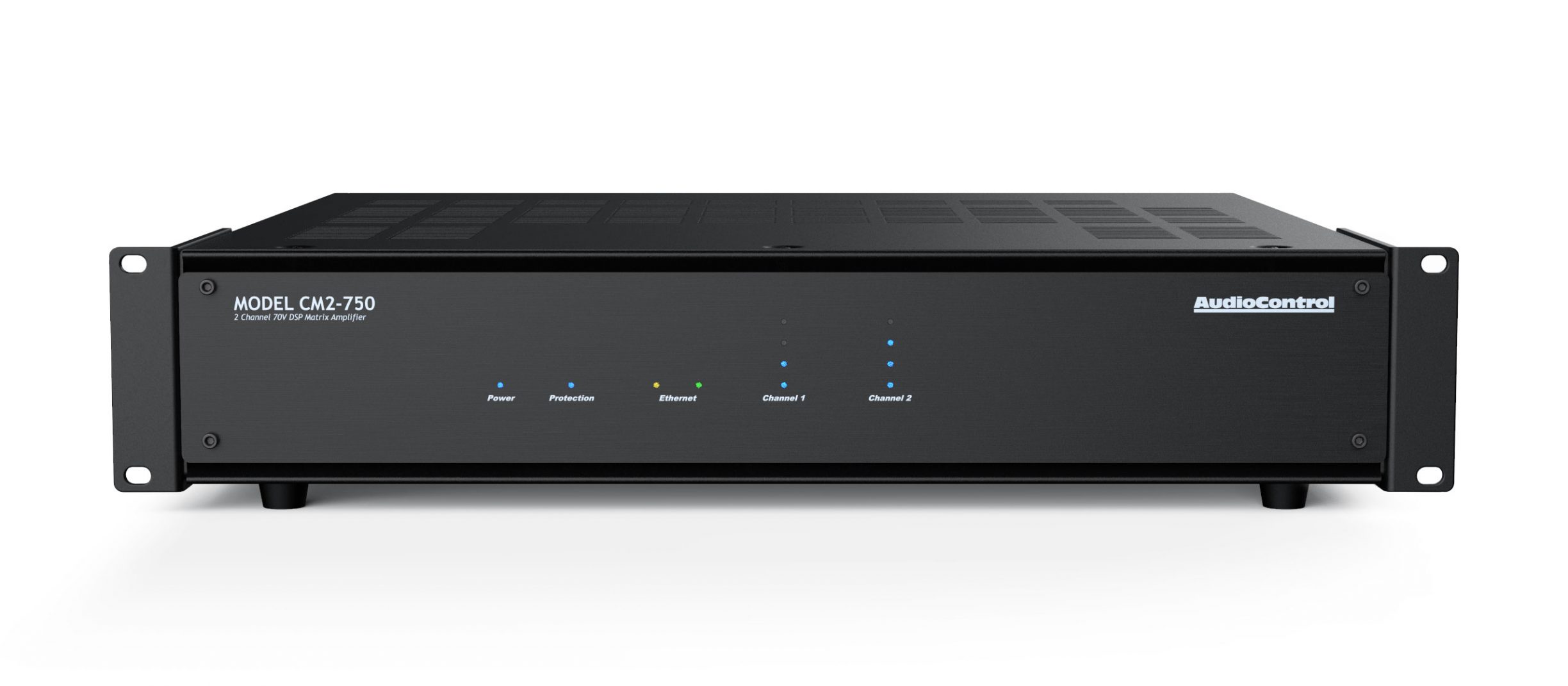

AudioControl – CM2-750

Amplifiers

More details

Similar Products

ashly-nXp-8004_600px|ashly-nXp-8004_600px
  • Ashly Audio

Ashly – nXp8004d

The nXp8004d is a 4 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 800W per channel at Low Z, 70V, and 100V mode. There is an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply auto-detects 120VAC or 240VAC mains, and a Neutrik® powerCON is used for the AC cord. Each channel has selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel has remote DC level control. Input connectors are Neutrik® XLR/TRS combo jack and Euroblock, while output connectors are Neutrik® speakON. The unit has a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit has Ethernet control with a real-time clock for event scheduling. The unit has serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The unit has 32-bit DSP processing at 48kHz or 96kHz sampling rate. DSP functions include swept load impedance, gain, dynamics including autoleveler and ambient noise compensation, equalization including graphic, parametric, feedback suppressor, and FIR filters, a matrix mixer including automixing, crossover, delay, and a signal generator. The amplifier has temperature dependent variable speed forced-air cooling.
    Amplifiers
  • Dante Ch: 4x0
  • 24-bit
See the product
pema-4250-front|pema-4250-front|pema-4250-front|ne-4250-front
  • Ashly Audio

Ashly – pema4250d

Ashly's Pema™ is an energy efficient, Class-D amplifier topology with a switching power supply and full matrix mixer, translates to 80% energy efficient out of the box. The pema4250 is a 4-Channel @ 250 Watts per channel and ships with Ashly’s full Protea™ suite of DSP.

The pema4250d is also available in these models:

pema 4250.25d - pema Network Power Amp 4 x 250W @ 25V with 8x8 Protea DSP. Includes OPDante Card

pema 4250.70d - pema Network Power Amp 4 x 250W @ 70V with 8x8 Protea DSP. Includes OPDante Card

pema 4250.10d - pema Network Power Amp 4 x 250W @ 100V with 8x8 Protea DSP. Includes OPDante Card

    Amplifiers
  • Dante Ch: 8x8
  • 24-bit
See the product
labgruppen-PLM-12K44
  • Lab.gruppen AB

Lab.gruppen – PLM12K44

Now packaged in an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 Lake Controller release, plus industry-standard Dante® networking, the PLM 12K44 sets the benchmark for Powered Loudspeaker Management Systems. The PLM 12K44 is the natural successor of the proven, road tested, and trusted Lab.gruppen touring foundation exemplified by the iconic PLM series, but with an additional new powerful feature set: the ability to rationalize power allocation between channels to optimize performance. Now packaged in an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 Lake Controller release, plus industry-standard Dante® networking, the PLM 12K44 sets the benchmark for Powered Loudspeaker Management Systems. The PLM 12K44 combines four channels of extremely powerful amplification with unrivalled signal processing and audio management. At the core of the system concept is the total integration of all devices – including networking, audio I/O, signal processing, amplifiers, power supply and connected mains supply – allowing complete control and monitoring of the entire platform, resulting in unique operational benefits.
    Amplifiers
  • Dante Ch: 8x8
  • 24-bit
See the product
