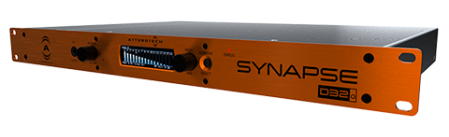

Attero Tech by Q-SYS – Synapse D32o

I/O Interfaces

More details

Similar Products

392_For_Dante_Website
  • Studio Technologies

Studio Technologies – Model 392 Visual Indicator Unit

The Model 392 is designed for a variety of applications that require a visual status indicator. An array of red/green/blue (RGB) LEDs provide backlighting for a distinctively shaped polycarbonate (plastic) lens assembly. The Model 392 can serve as a broadcast "on-air" light, a room occupied display, or an intercom call signal indicator. In addition, the unit can serve as an audio level display, with a green, yellow, and red indication of audio level. Full operation requires only a Power-over-Ethernet (PoE) 100 Mb/s data connection. It's compatible with the popular Dante® audio-over-Ethernet protocol but offers support for a range of additional applications. Configuration is performed using the Studio Technologies' STcontroller software application. Selected configuration values are stored within the Model 392's non-volatile memory. A variety of methods are provided to allow control of the Model 392's LED array. These include using STcontroller's "virtual" button, receiving network-transported UDP commands, and responding to an audio signal level associated with a Dante digital audio connection.

Key Features

Dante audio-over-Ethernet technology

General-purpose visual indicator with RGB LEDs

On, flashing, and audio level displays

Responds to high-frequency (18-23 kHz) call, UDP commands, and PCM audio data

Mounts in a US-standard 2-gang electrical box

Single Decora-style lens opening dimensions

Configured using STcontroller application

Power-over-Ethernet (PoE) powered

    I/O Interfaces
See the product
green-go-dante-interface-x
  • Green-GO

Green-Go – Dante Interface X

The Green-GO Dante interface links up to 8 audio streams from and into the Green-GO network.

Stay digital. The Dante interface will directly convert digital audio streams from Dante or AES67 to Green-GO and vice-versa, without the conversion losses that occur during analog to digital (and contrary) conversion.

This allows various audio signals to be injected into and extracted from the Green-GO network All Green-GO ports can be configured individually through the setup menu of the Green-GO Dante Interface. The Dante ports are manageable with the Dante Controller

Each of the 4 dual ports can operate in a full user based mode or a general purpose line in/out mode The Dante interface has a large TFT color screen for easy and quick setup and menu navigation. The display will give a quick overview of transmitted and received audio signals and levels.

Features

  • Easily combinable with any other Green-GO Beltpack or Multi-Channel Station (no separate matrix or interface required)
  • Connects up to 8 Dante/AES67 audio streams to and from the Green-GO network
  • Get Audio into and out of the Green-GO system, like Program audio or announcements.
  • Connect an audio source from anywhere in the world with a Green-GO bridge device
  • Intercom routing data, system setup & preferences are stored in local memory
  • Create your own configuration with the free Green-GO Control software
  • Dimensions: (L/W/H): 485 x 160 x 45 mm Weight: 2,38 Kg
  • PoE (802.3af) or optional external 12V DC Power Supply. Power consumption < 5 Watt
    I/O Interfaces
See the product
AMX-DGX1600-ENC_1200px
  • AMX

AMX – DGX1600-ENC

The new Enova DGX 1600 Enclosure (DGX1600-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. The new Enova DGX 1600 Enclosure (DGX1600-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. This robust solution includes a NetLinx® NX Integrated Controller, redundant power supplies and can be populated with Enova DGX video input and output boards in addition to optional audio-switching boards. There are four connections per video board, and each enclosure holds four video input boards and four video output boards for a maximum matrix of 16x16. The Enova DGX 1600 adds several new capabilities such as automatic setup of DXLink endpoints, single IP addressing for multiple endpoints, and a new web interface to greatly simplify installation and configuration. The new advanced Audio Switching Boards add audio breakaway capabilities and parametric EQ on each DGX output. The Enova DGX 1600 is far beyond a modular media switcher with built-in controller – it functions as the centerpiece of a complete integrated solution that manages and distributes analog and digital audio and video including HDMI/HDCP, control and Ethernet. Easily integrate HDCP into system designs and enjoy hassle-free plug-and-play operation. No tools, no delays and no key constraints – it just works with AMX's exclusive InstaGate Pro® Technology. Built for today's and tomorrow's needs, a comprehensive set of Enova DGX boards can be used in conjunction with DXLink and DGX Transmitters and Receivers to provide an end-to-end distribution system over twisted pair cable or fiber. An integrated NetLinx NX Controller and embedded Ethernet switch enables management of the entire solution including source equipment and display devices located throughout the environment – all from a single point of control. In addition to eliminating HDCP delays, InstaGate Pro allows traditionally key limited sources to be switched freely to all connected HDCP compliant displays – eliminating HDCP key limitations that plague large applications. Built-in SmartScale® Technology on every output provides video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different supported resolutions – making it easy to specify, easy to install and easy to use. With the powerful combination of analog-to-digital signal conversion, video scaling and high speed digital switching the system delivers perfect video every time – regardless of signal type. As part of a complete distribution system, easily send analog or digital audio and video including HDMI with HDCP signals, plus control 10 Km over single mode fiber or 300 meters over multimode fiber; send all this plus power up to 100 meters over standard twisted pair cable to and from the Enova DGX using the DXLink Twisted Pair and Fiber Transmitters/Receivers.
    I/O Interfaces
See the product
