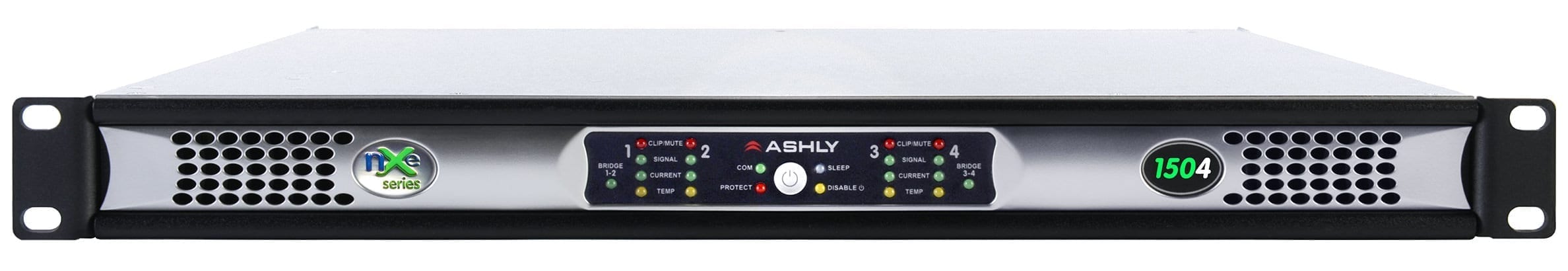

Ashly – nXe1504bd

Amplifiers

More details

Similar Products

ashly-nXp-8004_600px|ashly-nXp-8004_600px
  • Ashly Audio

Ashly – nXp8004d

The nXp8004d is a 4 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 800W per channel at Low Z, 70V, and 100V mode. There is an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply auto-detects 120VAC or 240VAC mains, and a Neutrik® powerCON is used for the AC cord. Each channel has selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel has remote DC level control. Input connectors are Neutrik® XLR/TRS combo jack and Euroblock, while output connectors are Neutrik® speakON. The unit has a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit has Ethernet control with a real-time clock for event scheduling. The unit has serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The unit has 32-bit DSP processing at 48kHz or 96kHz sampling rate. DSP functions include swept load impedance, gain, dynamics including autoleveler and ambient noise compensation, equalization including graphic, parametric, feedback suppressor, and FIR filters, a matrix mixer including automixing, crossover, delay, and a signal generator. The amplifier has temperature dependent variable speed forced-air cooling.
    Amplifiers
  • Dante Ch: 4x0
  • 24-bit
See the product
Q10i
  • DMIX

DMIX – Q10i

Advantages:

● High power density and light body weight, not only can meet the needs of large sound amplifying system, but also easy to move and install;

● Powerful DSP function, including routing control, level adjustment, filtering, equalization, voltage limit, delay, inverting, mute, etc.

● Accurate and intuitive status indicator and LCD function display, working status;

● Power amplifier built-in DSP front stage, without external signal front stage, you can match different styles of speakers, easily adjust the required effect, and can be stored in the parameters of multiple speakers, convenient access;

● Environmental monitoring unit can be used to collect voltage, current, temperature and other parameters;

● Accurate and sensitive temperature detection protection, to ensure that the machine during heating work in a safe range.

Technical parameters：

Product Model: Q10i

Product type: Two channel DSP digital power amplifier

8 Ω power: 300W X2

4 Ω power: 600W X2

Analog maximum input： 22dBu

AES maximum input： 0dBS

Frequency response： 20-20KHz +/- 1dB

THD+N： <0.8%

Damping coefficient： 150

Signal to noise ratio： 100

Working voltage： 100-240V

    Amplifiers
See the product
avn-ah8-iso-300dpi
  • Sonifex

Sonifex – AVN-AH8

The AVN-AH8 multi-channel headphone amplifier is a 1U rack-mount which distributes 2 sets of stereo audio to up to 8 different sets of headphones, fed from the Dante AoIP network. A typical application might be to provide common headphone feeds for guests in a radio studio, coming directly from the AoIP network.

Each output has front panel unbalanced 1/4” & 3.5mm jack sockets and a rotary level control. The front panel potentiometers adjust the headphone volumes from mute (fully anticlockwise) to 0dB of gain when fully clockwise. This is useful if the Dante stream level is low or high and requires adjusting.

There are 8 parallel 1/4” jacks on the rear panel, for ease of wiring if the unit is installed in an enclosed rack.

Each of the 8 professional headphone outputs can each select between 2 stereo Dante sources which are routed via Dante controller. The level of each stereo Dante stream can be adjusted ±12dB using one of the two front panel rotary controls. The unit supports AES67 operation and is Dante Domain Manager compliant.

The AVN-AH8 front panel contains a power (PoE) LED, a DC LED, a network link status LED, and a clock LED. A recessed reset switch is also provided.

The unit is powered via Power over Ethernet (PoE) or a 12VDC input via a locking 2.5mm DC Input, 2A minimum rating.

    Amplifiers
  • Dante Ch: 4x0
  • 16-bit, 24-bit, 32-bit
See the product
