Product Information

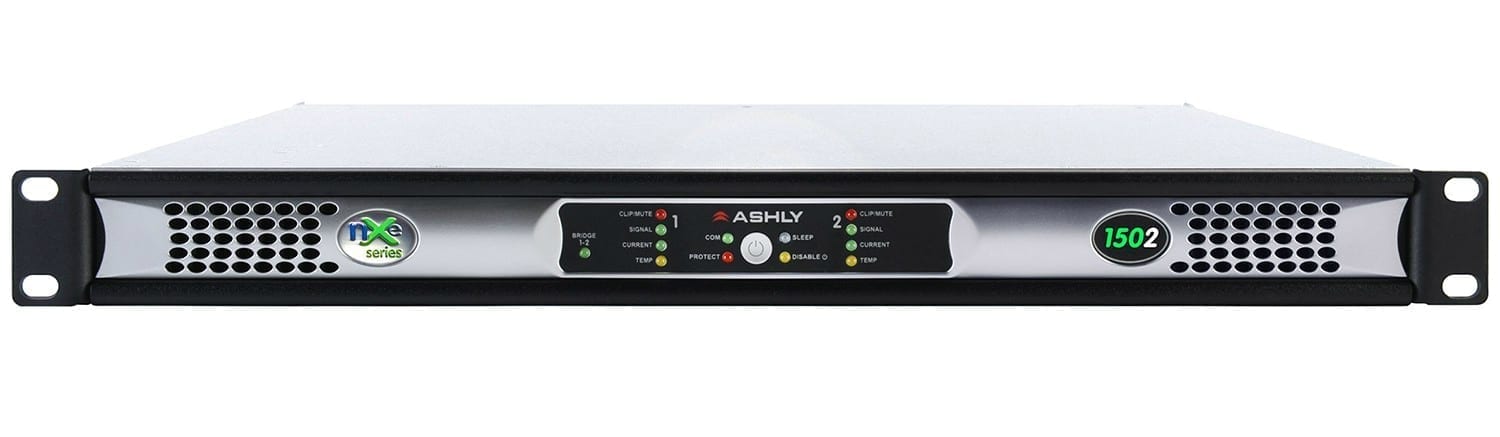

Introducing our newest addition to the NX Series of Multi-mode Amplifiers: Now available in 150 & 75 Watts per channel housed in a 1U chassis.
Multi-mode operation is standard on all nX amplifiers. Like it’s 2U models, choose from two or four channel configurations and set individual outputs to drive Low Impedance (2, 4, 8 Ohms), or 25V*, 70V, 100V Constant Voltage systems via rear-panel located DIP-switches. Add Ethernet (nXe) for monitoring and control, or add both Ethernet and Protea™ DSP (nXp). Expand onto a network with Dante™, CobraNet®, or AES3 digital inputs.
Adapt Worldwide with a universal switch-mode power supply with PFC (Power Factor Correction). Reduce power consumption using Ashly EMS™ (Energy Management System) by triggering a sleep mode that draws <1W, which meets the most aggressive Energy Star® benchmark†. Follow pre-scheduled preset settings including levels and sources using RTC Event Scheduler (Real-Time Clock on nXe & nXp models).
Remote Control ready via the Ashly Remote iPad® app, and/or hardwired Ashly remotes including analog (as well as serial) and Ethernet on nXe and nXp models. Monitor fault conditions and adapt via Ethernet and the onboard Fault Log included in nXe and nXp models.
