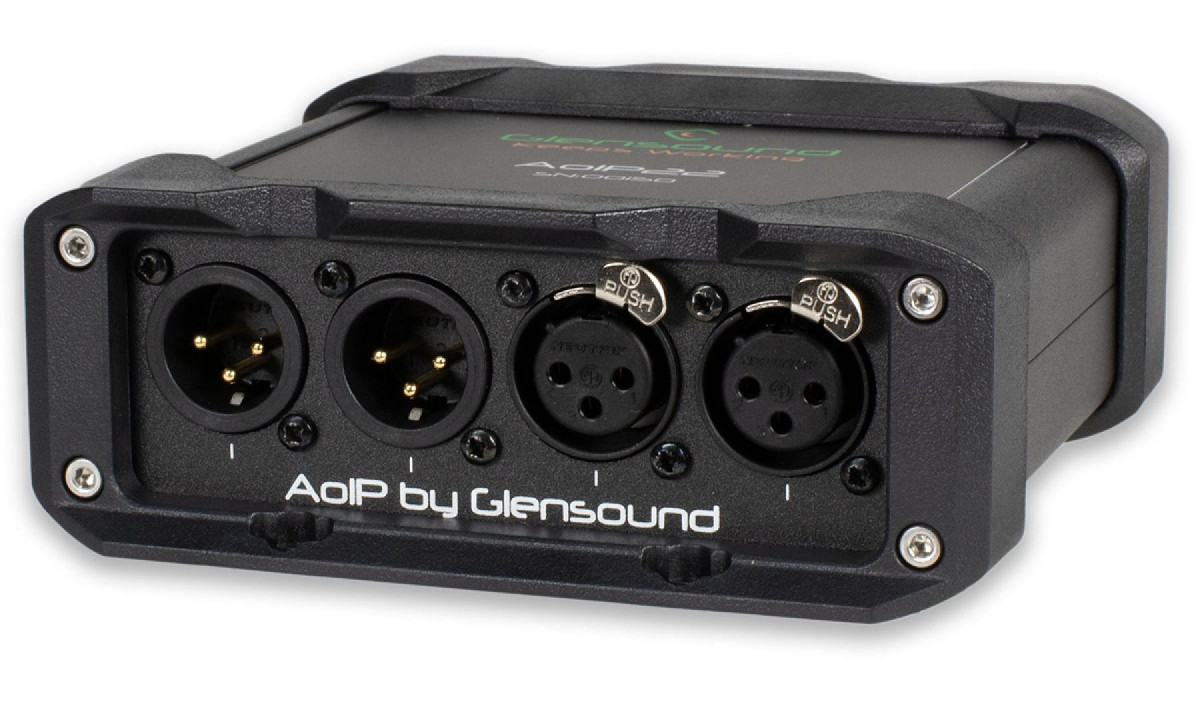

AoIP22 MKII

I/O Interfaces

Learn more

Similar Products
  • Sonifex

AVN-AESIO8-T-DNT

Designed for broadcast, live production, and professional AV environments, the AVN-AESIO8-T-DNT provides a cost-effective and dependable solution for transporting low-latency audio between AES3 and Dante network domains. Product Features
  • Dante AoIP.
  • 8 x balanced digital stereo AES3 inputs on terminal block connectors, supporting input rates of 32kHz – 192kHz.
  • 8 x balanced digital stereo AES3 outputs on terminal block connectors, output matches Dante system sample rate.
  • 2 x RJ45 connectors (1Gb/s Ethernet Port) allowing the unit to operate in redundant or switched modes.
  • PoE and link LED status indicators for each ethernet port.
  • Front panel clock, PoE and link LED status indicators.
  • Front panel AES3 lock LED status indicators for each input.
  • Powered by PoE on either (or both) ethernet ports, offering power supply redundancy.
  • Alternative USB-C DC power input, when PoE is unavailable.
  • Configuration using Dante Controller.
  • Dante Domain Manager compliant.
  • AES67 operation.
  • 1U 19″ rack-mount aluminium chassis.
    I/O Interfaces
  • Dante Ch: 8x8
  • 16-bit, 24-bit, 32-bit
See the product
AudioScience - Iyo Dante
  • AudioScience

AudioScience – Iyo Dante 16.16LR

The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format. The 16.16MR provides 16x16 balanced analog audio inputs and outputs. Each input accommodates microphone through line level signals with a gain range of -60 to +24dBu. +48V phantom power is individually switchable on each input. Output levels are configurable up to +24dBu. With RJ-45/StudioHub + GPIO Connector close-up.

RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.

The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.

Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.

    I/O Interfaces
  • Dante Ch: 16x16
  • 16-bit, 24-bit, 32-bit
See the product
  • Q-SYS

Q-SYS – Core 110f

The Q-SYS™ Core 110f processor is the latest addition to the Q-SYS™ Core family providing a fully integrated audio, video and control solution for small, single-room projects up to the largest Enterprise scale deployments.

Features

  • Class leading I/O: Core 110f has 24 I/O + USB, POTS and VoIP simultaneously offering the best cost to I/O ratio in a single SKU, single chassis product available on the market.
  • 8 Flex Channels: Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.
  • True IT Software Integration: The Q-SYS Software Ecosystem is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, and more.
  • Suite of Software-Based Conferencing Technology applications: Built and owned by QSC from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing and gating automixers.
  • Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.

Connect to Q-SYS Reflect Enterprise Manager

This processor can be automatically connected to your Q-SYS Reflect Enterprise Manager, a powerful monitoring and management platform for the Q-SYS Ecosystem.

    I/O Interfaces
See the product
