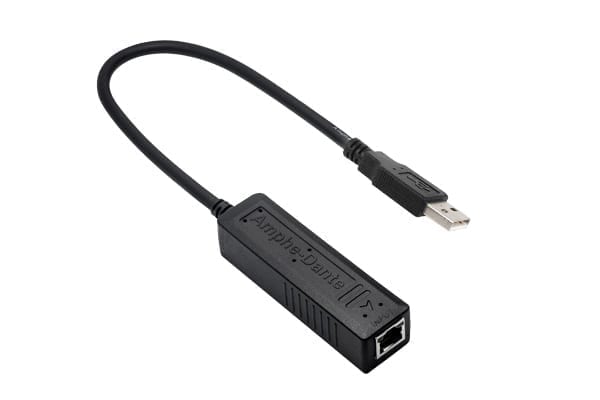

Amphenol – RJD32U1-0050

I/O Interfaces

More details

Similar Products

s-track-daco1616
  • S-Track

S-Track – DACO 1616

网络音频接口机实现网络数字信号与模拟信号的互转，支持最大 16 路输入与 16 路输出的模拟通道。是模拟多媒体系统进行数字化升级的绝佳之选。 Network audio interface achieves conversions between digital network signals and analog signals, and supports up to 16-channel analog outputs. It is an ideal choice for digital upgrade of an analog multimedia system. 网络音频接口机实现网络数字信号与模拟信号的互转，支持最大 16 路输入与 16 路输出的模拟通道。是模拟多媒体系统进行数字化升级的绝佳之选。 Network audio interface achieves conversions between digital network signals and analog signals, and supports up to 16-channel analog outputs. It is an ideal choice for digital upgrade of an analog multimedia system. Suitable for large conference rooms, multi-function halls and theaters; support expanded process input and remote signal access. 产品特性 / Product Features
  • 多语言支持；/ support multiple languages
  • 内嵌网页快捷操作；/ embedded webpage shortcut actions
  • 48V幻象供电；/ 48V phantom power
  • 最大16x16通道；/ support up to 16x16 channels
  • 多种规格可选；/ multiple optional specifications
  • 支持MIC/Line；/ support MIC/LINE
  • 系统状态指示灯；/ system status indicator light
  • 内嵌DANTE；/ built-in Dante
  • 内嵌网络适配器；/ built-in network adapter
    I/O Interfaces
See the product
0119562_unterputzanschluss-mit-4x-xlr-output-male-von_320
  • promedias

promedias – proDT 4XO UP

AES67 & DDM ready! 0x4 LINE OUT (XLR male) PoE / 5VDC Input Stereo L+R DANTE® Broadway Sample Rate: max. 192kHz | Latency: min. 0.25ms Network Speed: 1Gb/s / 100Mb/s Dimensionen: Gr. I+I (1x2/2x1) - 148x88x59mm bzw. 50mm Einbaumasse: 120x67x44mm bzw. 120x60x44mm (Ausschnitt x Tiefe) Farbe: Weiss (Feller 61), ähnlich RAL 9010 (auch als Standard Schwarz 60 oder Option RAL/NCS Farbton erhältlich!)
    I/O Interfaces
See the product
rdl-dd-bn31_1200px_0
  • RDL

RDL – DD-BN31

The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN31. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom for that input; the second switch selects the mic or line gain range; the third switch sets the gain. The Mini-jack input provides a switch to configure the input for stereo or summed mono. The Mini-jack output provides a switch to configure the output for stereo or left-channel mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN31 is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. The Mini-jack left and right inputs are each converted to a separate Dante network transmit channel. Each input provides a network digital audio level of -18 dBFS for an unbalanced -10 dBV input. The input is equipped with a selector to sum the left and right Mini-jack inputs. The summed signal feeds both Dante transmit channels. Two Dante audio channels are converted to unbalanced line level to feed the front-panel Mini-jack. Each channel provides -10 dBV unbalanced for a network digital audio level of -18 dBFS. The left and right Mini-jack channels are normally fed from Dante receive channels 3 and 4 (stereo). The Mini-jack output is equipped with a selector to feed both output channels from Dante receive channel 3 (mono). This selector may be set from the front of the unit when the cover plate is not installed. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN31. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN31 in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN31 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN31’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
